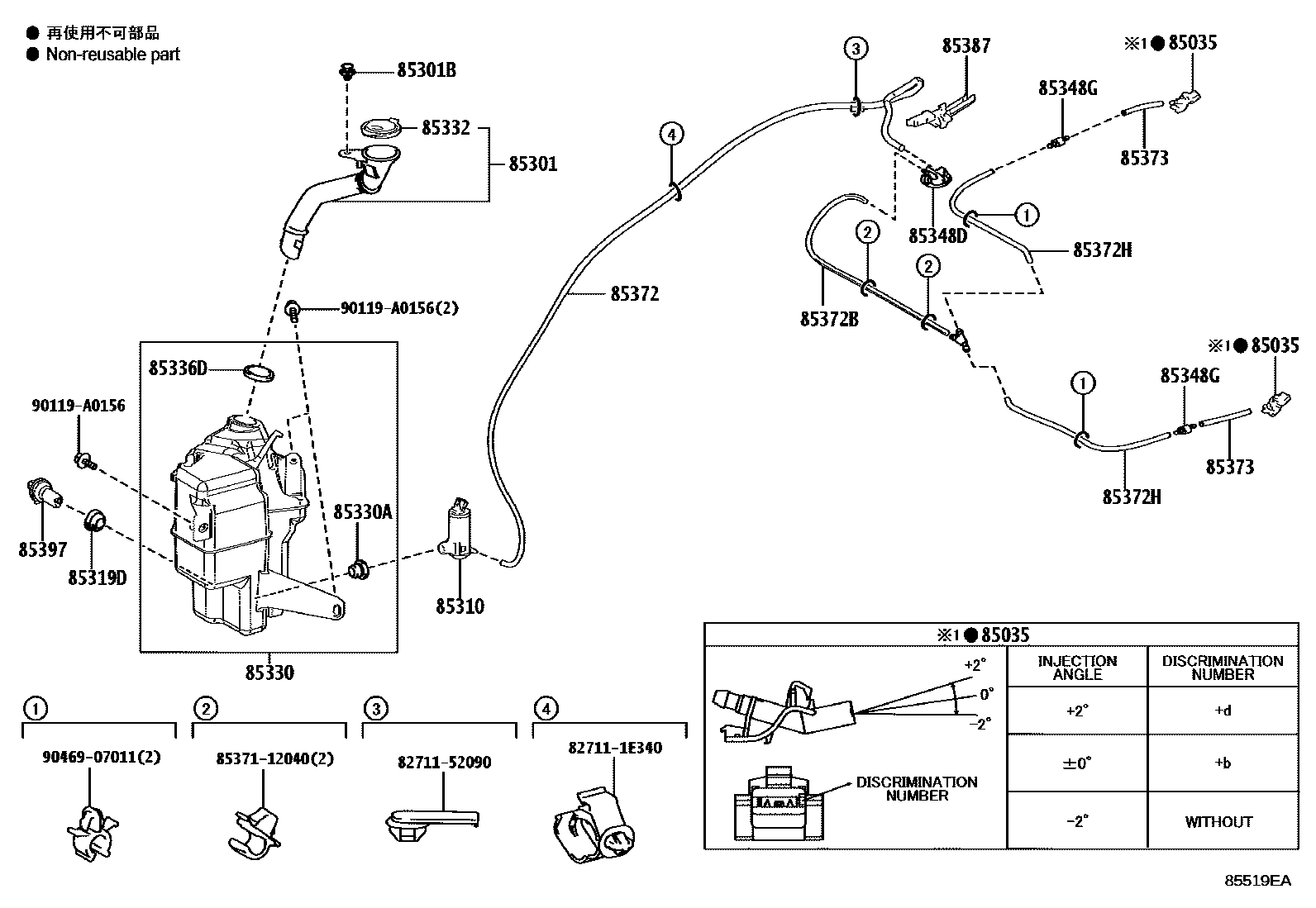

Toyota CAMRY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202404

ANGLE 0

main85381-30230×2i202404

ANGLE -2

main85381-30240×2i202404

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85301-06010i202404

85301BCLIP, WASHER

main90467-07214i202404

(J)

main90467-A0037i202404

(L)

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04011i202404

85319DPACKING, FRONT WASHER

main85319-AA020i202404

85330JAR ASSY, WINDSHIELD WASHER

main85315-06230i202404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202404

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202404

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202404

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-06020i202404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-26020×2i202404

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46094i202404

L=1530

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46334i202404

L=620

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33036×2i202404

L=370

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33281×2i202404

L=60

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-06030i202404

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202404

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

90119A0156

main90119-A0156

9046907011

main90469-07011

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
