Toyota CAMRY — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32060i198710-198808

FR,RH

main86150-32070i198710-198808

FR,LH

main86150-32100i198608-198610

FR,LH

main86150-32101i198710-198712

FR,LH

main86150-32102i198712-198806

FR,LH

main86150-32110i198710-198712

FR,RH

main86150-32111i198712-198806

FR,RH

main86150-32120i198710-198808

RR,RH

main86150-32130i198710-198808

RR,LH

main86150-32140i198806-198808

FR,RH

main86150-32150i198806-198808

FR,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-32130×2i198710-198808

main86160-32140×2i198710-198712

main86160-32141×2i198712-198808

86160BSPEAKER ASSY, REAR

main86160-32150×2i198710-198808

SIDE

main86160-32160×2i198710-198808

ROOF

main86160-32170×2i198710-198808

86264DGRILLE, SPEAKER, ROOF

main86269-32020-02×2i198710-198808

MAROON,TRIM3#

main86269-32020-03×2i198710-198808

LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,8#

main86269-32020-04×2i198608-198710

BLUE,LIGHT BLUE,TRIM8#

main86269-32020-05×2i198710-198808

LIGHT BEIGE,TRIM4#

9015960114

main90159-60114

9165540616

main91655-40616

9356055014

main93560-55014

9356755016

main93567-55016

9411040600

main94110-40600

9 parts on this diagram · 1 diagram in section

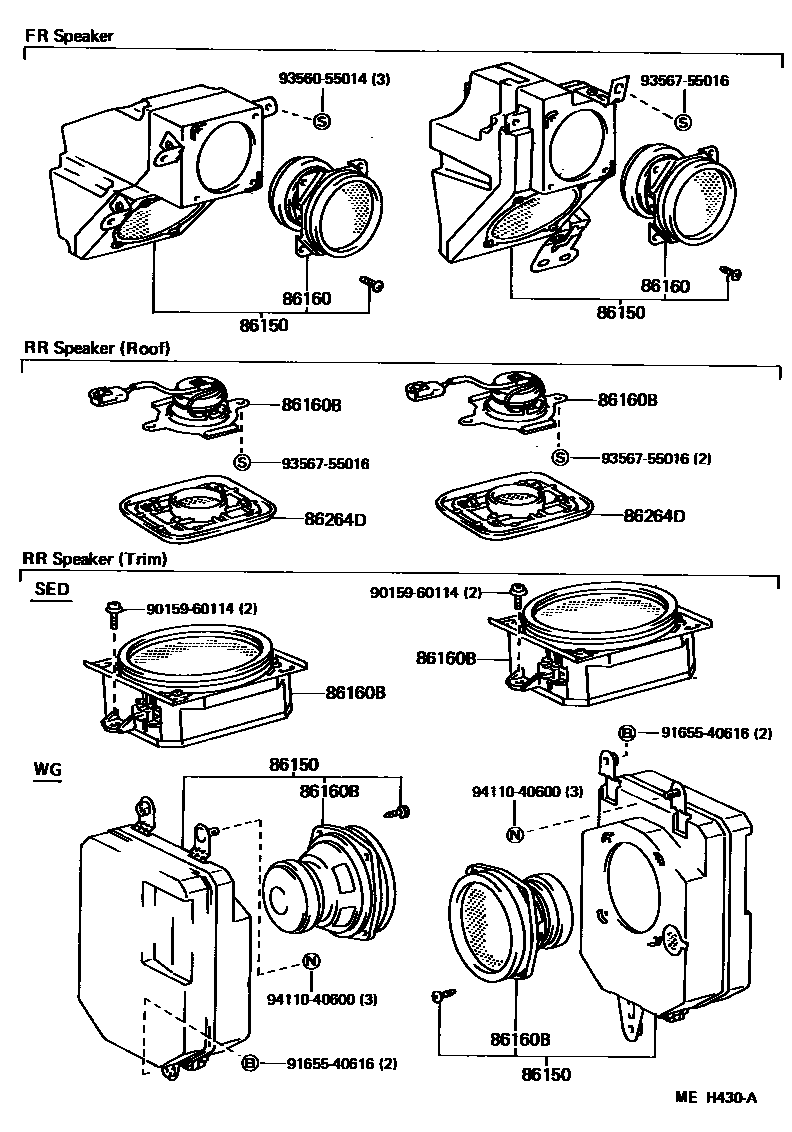

SPEAKER for Toyota CAMRY

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota CAMRY. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, GRILLE, SPEAKER, ROOF.
