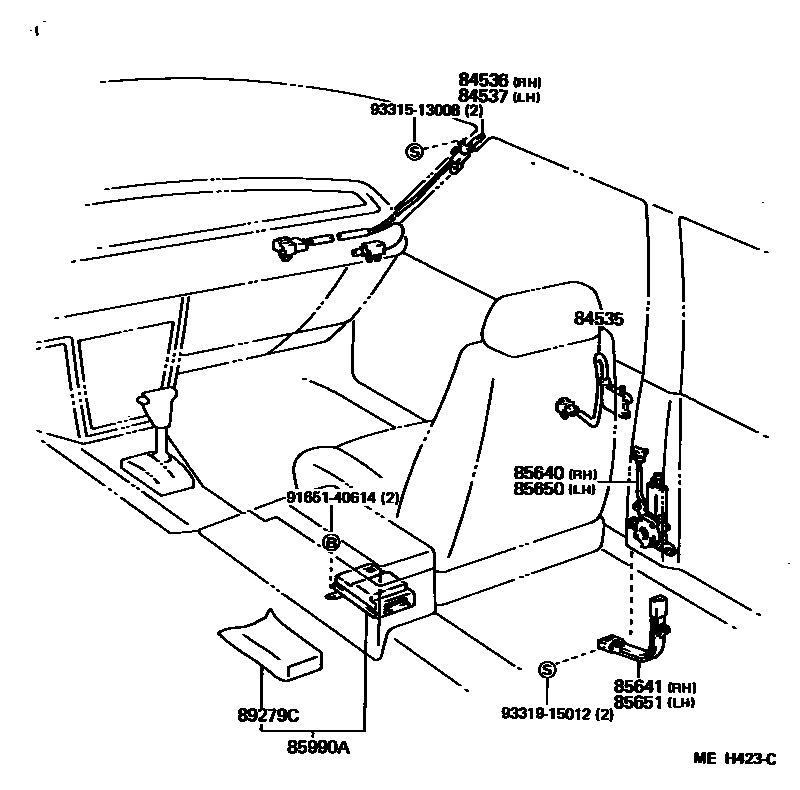

Toyota CAMRY — PASSIVE BELT SYSTEM

84535SWITCH, DOOR LOCK

main84535-32010×2iSV21..USA198608-198710

sub84535-22020

84536SWITCH, SLIDE RAIL LIMIT, FRONT RH

main84536-32010iSV21..USA198608-198710

84537SWITCH, SLIDE RAIL LIMIT, FRONT LH

main84537-32010iSV21..USA198608-198710

85640MOTOR ASSY, PASSIVE BELT DRIVE, RH

main85640-32020iSV21..USA198608-198710

85641TRACK, PASSIVE BELT DRIVE, RH

main85641-20010iSV21..USA198608-198710

85650MOTOR ASSY, PASSIVE BELT DRIVE, LH

main85650-32020iSV21..USA198608-198710

85651TRACK, PASSIVE BELT DRIVE, LH

main85651-20010iSV21..USA198608-198710

85990ACOMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)

main85990-32010iSV21..USA198608-198708

main85990-32011iSV21..USA198708-198710

sub85990-32012

89279CCOVER

main89279-32160iSV21..USA198708-198710

9165140614

main91651-40614

9331513008

main93315-13008

9331915012

main93319-15012

12 parts on this diagram · 1 diagram in section
