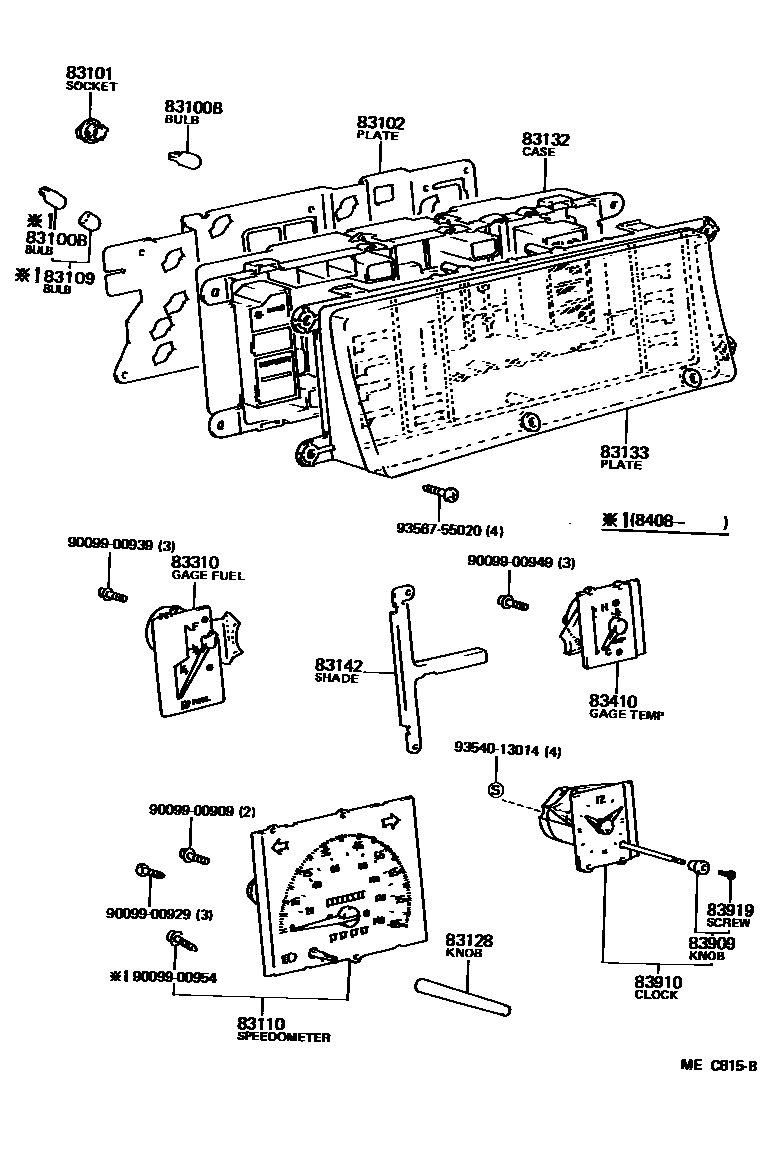

Toyota CAMRY — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×11iSV11..LE198301-198607

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×15iCV1#,SV11198301-198607

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020×2iSV11..LE198408-198607

*DS,12V 3.4W,LONG

main83101-14030×15iCV1#,SV11198301-198607

12V 3.4W

main83101-14040×11iSV11..LE198301-198607

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-32140iCV1#198408-198607

main83247-32231iSV11..DLX198301-198408

main83247-32251iSV11..LE198301-198408

main83247-32330iCV10198308-198408

main83247-32650iSV11..DLX198408-198607

main83247-32690iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

main83247-32830iSV11..LE198408-198607

83109BULB, COMBINATION METER, NO.2

main83109-24030×2iCV1#,SV11198408-198607

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

main83109-24040×3iSV11..LE198408-198607

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

83110SPEEDOMETER ASSY

main83110-32090iSV11..DLX..USA198301-198308

main83110-32091iSV11..DLX..USA198308-198408

main83110-32100iSV11..LE..USA198301-198308

main83110-32110iSV11..DLX..CND198301-198308

main83110-32111iSV11..DLX..CND198308-198408

main83110-32120iSV11..LE..CND198301-198308

main83110-32141iCV10198308-198408

main83110-32170iSV11..LE..USA198308-198408

main83110-32180iSV11..LE..CND198308-198408

main83110-32220iSV11..DLX..USA198408-198607

main83110-32230iCV1#198410-198607

main83110-32240iSV11..LE..USA198408-198607

main83110-32250iSV11..LE..CND198408-198508

main83110-32251iSV11..LE..CND198508-198607

main83110-32310iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

main83110-32370iSV11..DLX..CND198501-198508

main83110-32371iSV11..DLX..CND198508-198607

83128KNOB, TRIP COUNTER

main83128-32010iCV1#,SV11198301-198607

main83128-32070iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

83132CASE, COMBINATION METER

main83132-32190iSV11..LE198301-198408

main83132-32210iSV11..DLX198301-198408

main83132-32290iCV10198308-198408

main83132-32530iSV11..DLX198408-198607

main83132-32630iCV1#198410-198607

main83132-32690iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

main83132-32810iSV11..LE198408-198607

83133PLATE, COMBINATION METER, NO.1

main83133-32110iCV1#,SV11..DLX198301-198607

main83133-32130iSV11..LE198301-198607

main83133-32250iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

83142SHADE, COMBINATION METER LAMP

main83142-32010iCV1#,SV11..DLX198301-198607

83310GAGE ASSY, FUEL RECEIVER

main83243-32011iCV10,SV11..DLX198301-198408

main83243-32111iSV11..LE198301-198408

main83243-32170iCV1#,SV11..DLX198408-198607

main83243-32270iSV11..LE198408-198607

main83310-32010iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-32010iCV10,SV11..DLX198301-198408

main83244-32110iSV11..LE198301-198408

main83244-32210iCV1#,SV11..DLX198408-198607

main83244-32390iSV11..LE198408-198607

main83410-32010iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

83909KNOB, CLOCK

main83909-14012iCV1#,SV11..DLX198301-198607

83910CLOCK ASSY

main83910-32010iCV10,SV11..DLX198301-198408

main83910-32030iSV11..LE198301-198607

main83910-32040iSV11..LE198408-198607

W/DIGITAL SPEEDOMETER

main83910-32050iCV1#,SV11..DLX198408-198607

83919SCREW, CLOCK

main83919-14012iCV1#,SV11..DLX198301-198607

9009900909

main90099-00909

9009900929

main90099-00929

9009900939

main90099-00939

9009900949

main90099-00949

9009900954

main90099-00954

9354013014

main93540-13014

9356755020

main93567-55020

21 parts on this diagram · 5 diagrams in section
