Toyota CAMRY — FRONT FENDER APRON & DASH PANEL

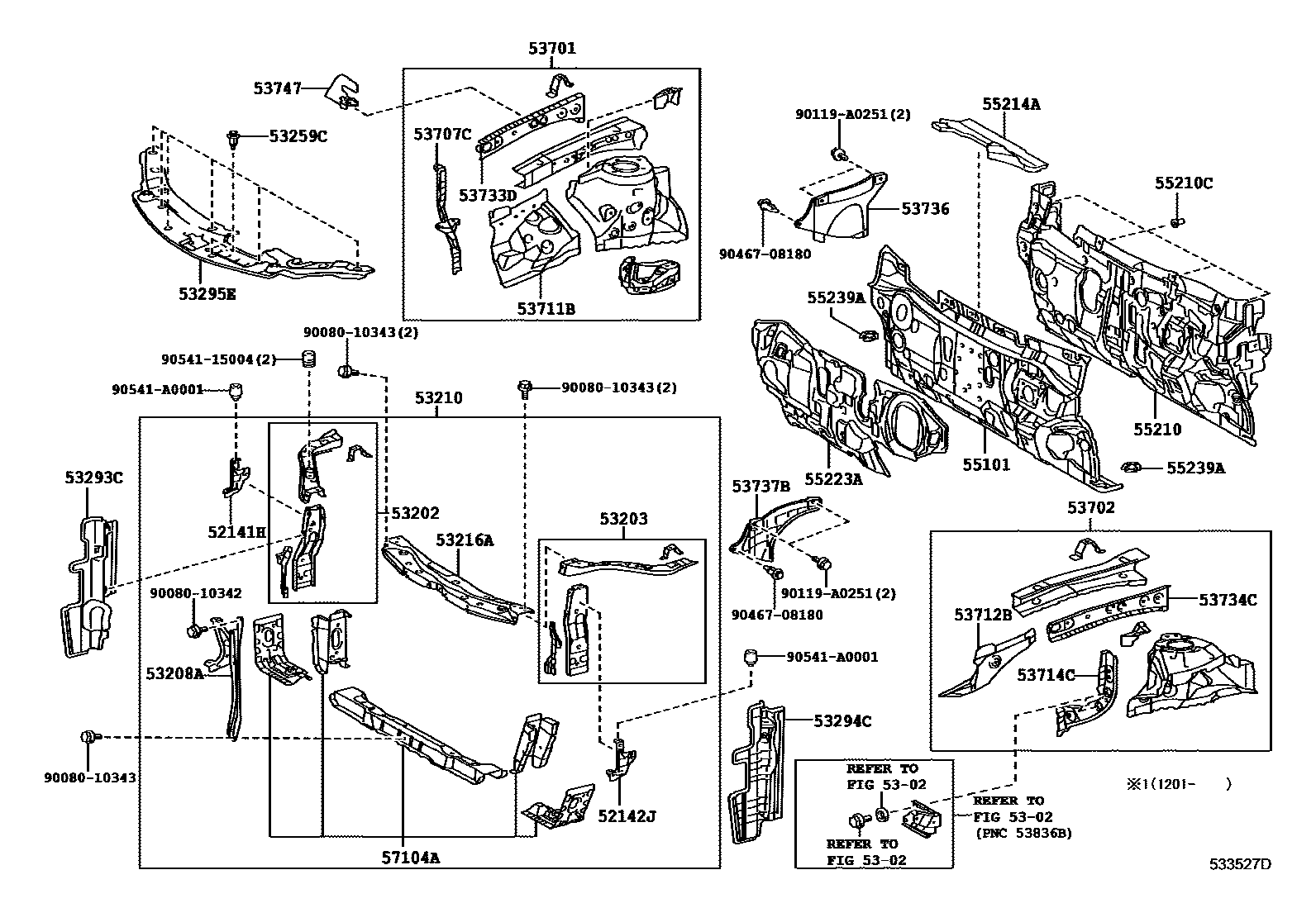

Parts diagram

52141HARM, FRONT BUMPER, UPPER RH

main52141-06090i201409

main52141-06100i201109-201409

52142JARM, FRONT BUMPER, UPPER LH

main52142-06080i201109-201409

main52142-06140i201409

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-06130i201109-201409

main53202-06190i201409

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-06170i201109-201409

main53203-06230i201409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-06080i201109-201409

main53208-06150i201409

53210SUPPORT ASSY, RADIATOR

main53210-06150i201409-201606

main53210-06281i201109-201409

53216ASUPPORT, RADIATOR, UPPER

main53216-06130i201109-201409

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×7i201109-201409

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-06200i201109-201409

main53293-06340i201409

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-06190i201109-201409

main53294-06340i201409

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06071i201109-201409

main53295-06130i201409

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06170i201109-201409

main53701-06230i201409-201606

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06150i201109-201409

main53702-06210i201409-201606

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-06020i201109-201409

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06120i201409

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06080i201109-201409

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-06090i201109-201409

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06090i201109-201409

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06090i201109-201409

53736SEAL, FRONT FENDER APRON, RH

main53736-07021i201109-201409

53737BSEAL, FRONT FENDER APRON, LH

main53737-06040i201109-201409

53747PLATE, AIR SEALED, RH

main53747-06010i201109-201409

main53747-06050i201409

55101PANEL SUB-ASSY, DASH

main55101-06470i201109-201409

main55101-06471i201409-201606

55210INSULATOR ASSY, DASH PANEL

main55210-06240i201109-201408

main55210-06241i201408-201409

55210CCLIP

main90467-06197×4i201109-201409

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-06051i201109-201409

main55214-06052i201409

55223AINSULATOR, DASH PANEL, OUTER

main55223-06290i201109-201409

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06020×2i201109-201409

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-07022i201109-201409

9008010342

main90080-10342

9008010343

main90080-10343

90119A0251

main90119-A0251

9046708180

main90467-08180

9054115004

main90541-15004

90541A0001

main90541-A0001

36 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota CAMRY

This section contains 39 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CAMRY. Key components include: ARM, FRONT BUMPER, UPPER RH, ARM, FRONT BUMPER, UPPER LH, HOOD & FRONT FENDER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH.
