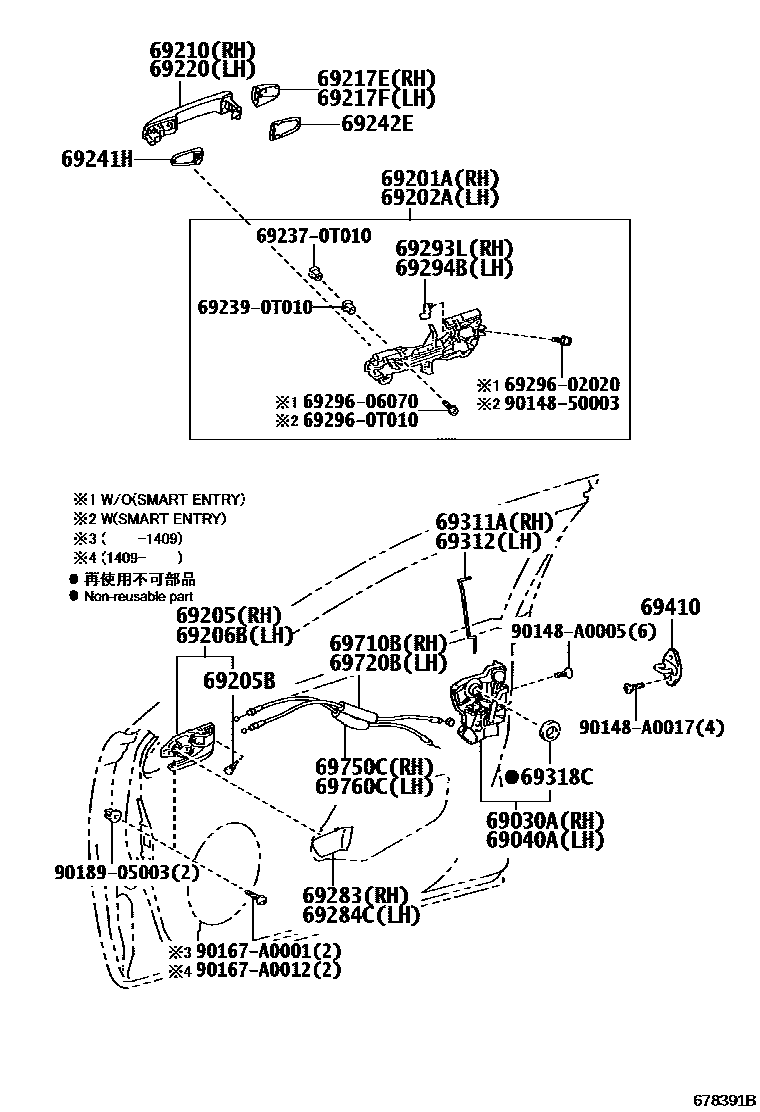

Toyota CAMRY — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-W(SMART ENTRY)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-W(SMART ENTRY)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
FLAXEN,TRIM00
GRAY,TRIM10
BLACK,TRIM00,10,2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
FLAXEN,TRIM00
GRAY,TRIM10
BLACK,TRIM00,10,2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
WIRELESS DOOR LOCK-W(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART ENTRY),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY M.M.,1H1
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1J9
WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY),BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY),LT.YELLOW M.M.,5B2
WIRELESS DOOR LOCK-W(SMART ENTRY),OLIVE M.M.,6T7
WIRELESS DOOR LOCK-W(SMART ENTRY),TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
WIRELESS DOOR LOCK-W(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART ENTRY),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY M.M.,1H1
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1J9
WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY),BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY),LT.YELLOW M.M.,5B2
WIRELESS DOOR LOCK-W(SMART ENTRY),OLIVE M.M.,6T7
WIRELESS DOOR LOCK-W(SMART ENTRY),TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
WIRELESS DOOR LOCK-W(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART ENTRY),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY M.M.,1H1
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1J9
WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY),BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY),LT.YELLOW M.M.,5B2
WIRELESS DOOR LOCK-W(SMART ENTRY),OLIVE M.M.,6T7
WIRELESS DOOR LOCK-W(SMART ENTRY),TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
WIRELESS DOOR LOCK-W(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART ENTRY),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY M.M.,1H1
WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1J9
WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY),BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY),LT.YELLOW M.M.,5B2
WIRELESS DOOR LOCK-W(SMART ENTRY),OLIVE M.M.,6T7
WIRELESS DOOR LOCK-W(SMART ENTRY),TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
FLAXEN,TRIM00
GRAY,TRIM10
BLACK,TRIM0#,1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
FLAXEN,TRIM00
GRAY,TRIM10
BLACK,TRIM0#,1#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-W(SMART ENTRY)
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-W(SMART ENTRY)
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
692370T010RETAINER, DOOR OUTSIDE HANDLE
main69237-0T010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
6929606070SCREW, DOOR INSIDE HANDLE
main69296-06070
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
90148A0005
main90148-A0005
90148A0017
main90148-A0017
90167A0001
main90167-A0001
90167A0012
main90167-A0012
9018905003
main90189-05003
36 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CAMRY
This section contains 36 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CAMRY. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
