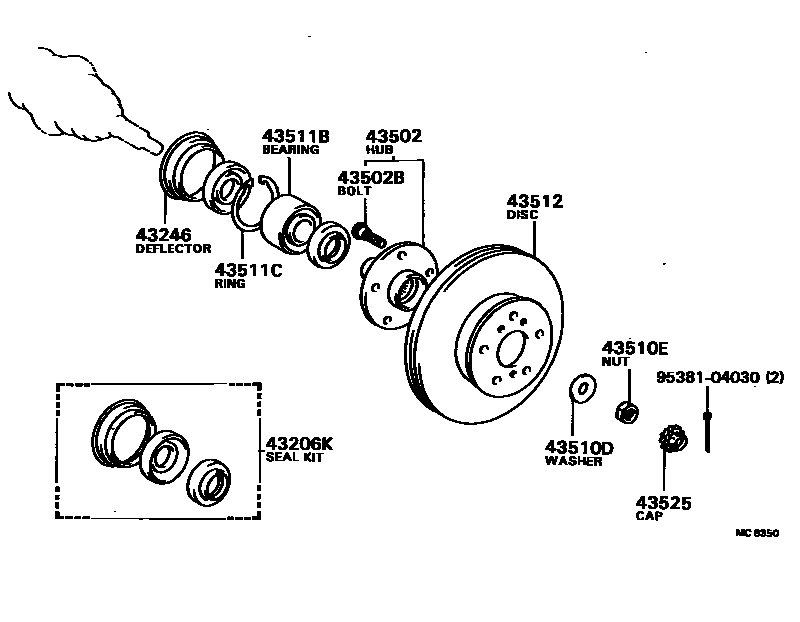

Toyota CAMRY — FRONT AXLE HUB

43206KSEAL KIT, FRONT AXLE OIL

main04422-32010×2i198301-198607

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011×2i198301-198607

43502HUB SUB-ASSY, FRONT AXLE

main43502-20040×2i198603-198607

main43502-32010×2i198301-198603

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×10i198301-198607

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20006×2i198301-198405

main90201-20012×2i198405-198607

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001×2i198301-198607

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003×2i198301-198607

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002×2i198301-198607

OD=79

43512DISC, FRONT

main43512-32020×2i198301-198405

main43512-32040×2i198405-198512

main43512-32110×2i198512-198607

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2i198301-198607

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CAMRY

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CAMRY. Key components include: SEAL KIT, FRONT AXLE OIL, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1, HUB SUB-ASSY, FRONT AXLE, BOLT, HUB (FOR FRONT AXLE), WASHER, CLAW (FOR STEERING KNUCKLE WASHER).
