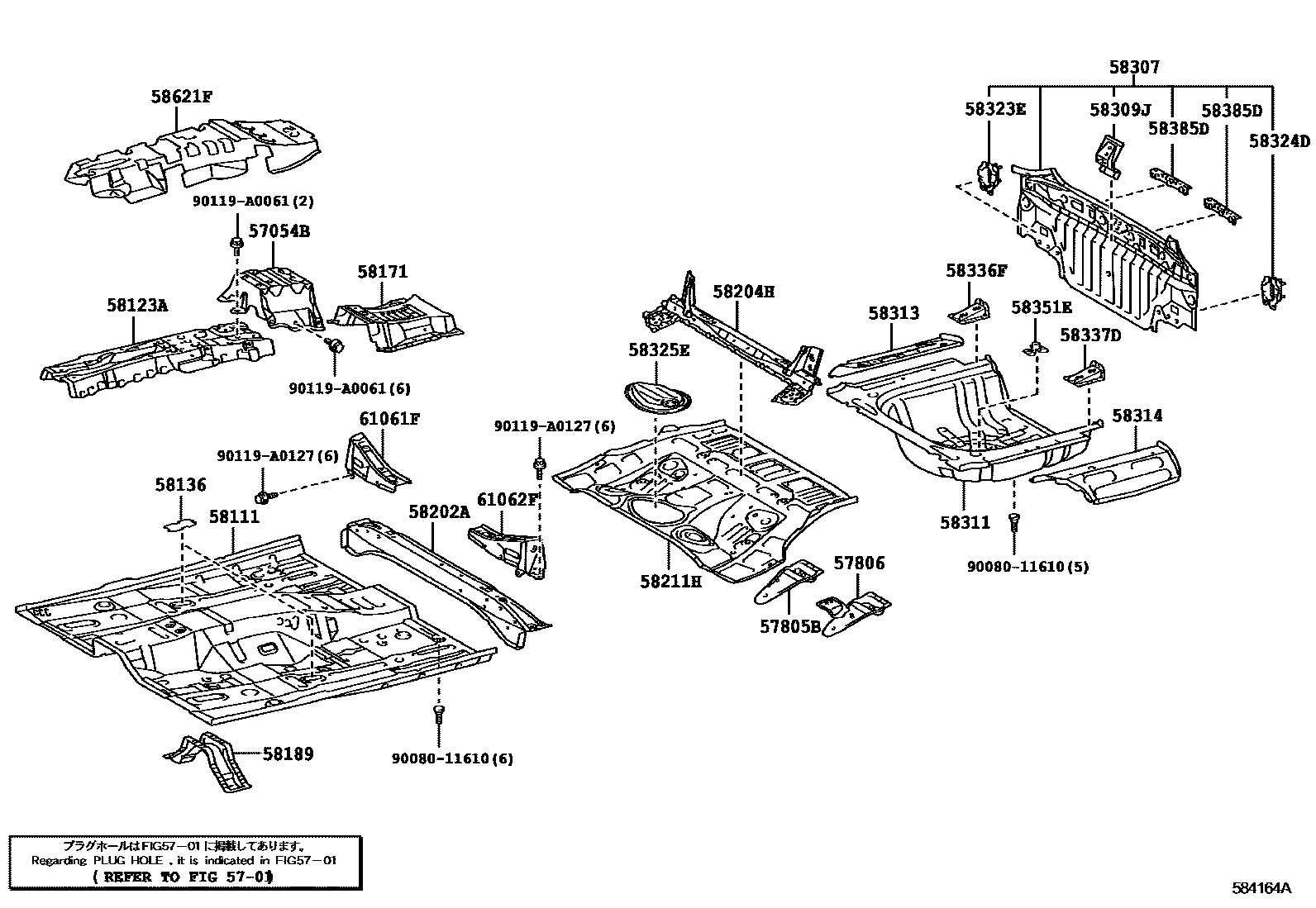

Toyota CAMRY — FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1FLOOR UNDER COVER 0004 1FLOOR UNDER COVER 0005 1FLOOR UNDER COVER

5701

57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4

main57054-06040iASV50201109-201409

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06020iASV50201109-201409

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-06020iASV50201109-201409

58111PAN, FRONT FLOOR

main58111-06060iASV50201109-201407

sub58111-06061

main58111-06061iASV50201408-201409

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-06050iASV50201109-201409

58136COVER, FRONT FLOOR HOLE

main58136-06050iASV50201109-201606

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-06040iASV50201109-201409

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-07030iASV50201109-201510

main58189-07030iASV50201510

(L)

main58189-33050iASV50201510

(J)

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06050iASV50201109-201409

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-06020iASV50201109-201210

sub58204-07010

main58204-07010iASV50201211-201409

58211HPAN, CENTER FLOOR

main58211-06201iASV50201109-201409

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06150iASV50201109-201409

main58307-06200iASV50201409

58309JRETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER

main58309-06090iASV50201109-201409

58311PAN, REAR FLOOR

main58311-06151iASV50201109-201409

58313PANEL, REAR FLOOR SIDE, RH

main58313-06120iASV50201109-201409

58314PANEL, REAR FLOOR SIDE, LH

main58314-06120iASV50201109-201409

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58303-06010iASV50201109-201409

main58303-06020iASV50201409

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58304-06020iASV50201109-201409

main58304-06030iASV50201409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06060iASV50201109-201402

sub58325-06061

main58325-06061iASV50201403-201409

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-06070iASV50201109-201409

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58336-06070iASV50201109-201409

58351EBRACKET, SPARE WHEEL CLAMP

main58351-06030iASV50201109-201409

58385DBRACKET, REAR BUMPER COVER

main58385-06080iASV50201109-201409

main58385-06130iASV50201409

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-06160iASV50201109-201211

sub58621-06161

main58621-06161iASV50201212-201409

main58621-07020iASV50201409

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61061-06031iASV50201109-201207

sub61061-06032

main61061-06032iASV50201208-201409

61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

main61062-06031iASV50201109-201207

sub61062-06032

main61062-06032iASV50201208-201409

9008011610

main90080-11610

90119A0061

main90119-A0061

90119A0127

main90119-A0127

30 parts on this diagram · 5 diagrams in section
