Toyota CAMRY — COWL VENTILATOR

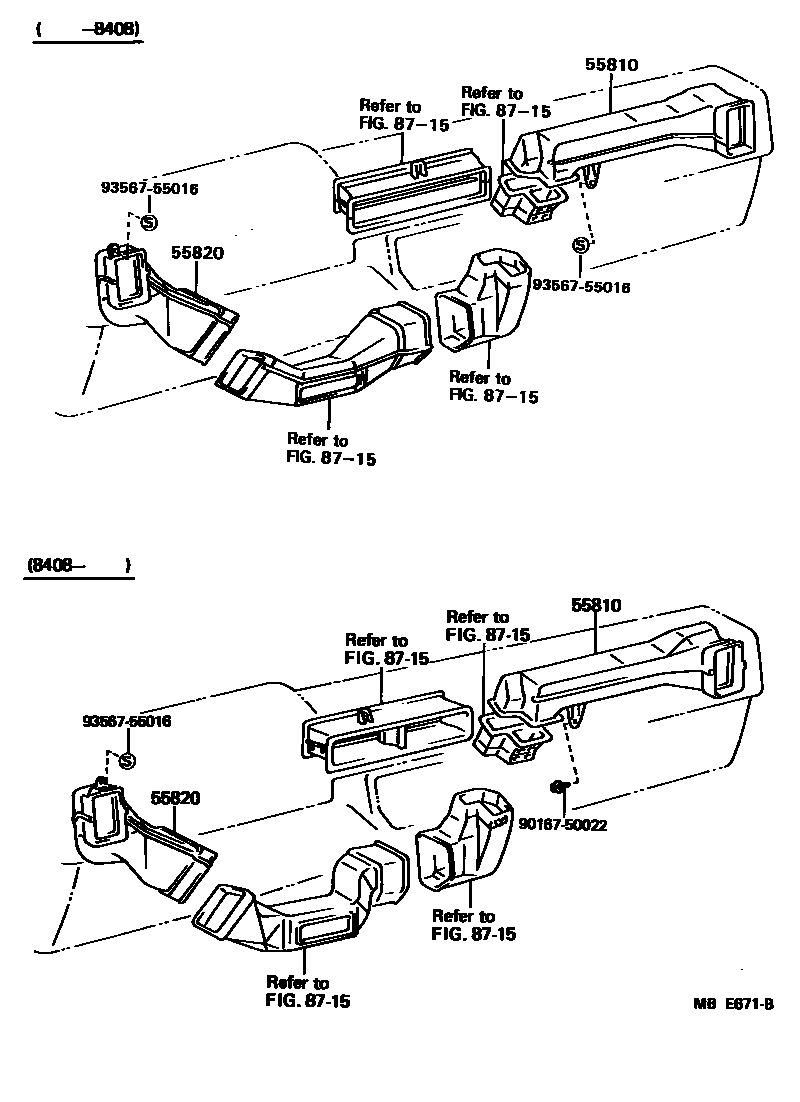

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55088-32020i198301-198408

main55088-32030i198408-198606

main55088-32031i198606-198607

55820DUCT ASSY, SIDE VENTILATOR, LH

main55084-32020i198301-198408

main55084-32030i198408-198606

main55084-32031i198606-198607

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9016750022

main90167-50022

9356755016

main93567-55016

5 parts on this diagram · 1 diagram in section

COWL VENTILATOR for Toyota CAMRY

This section contains 5 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CAMRY. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, DUCT ASSY, SIDE VENTILATOR, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
