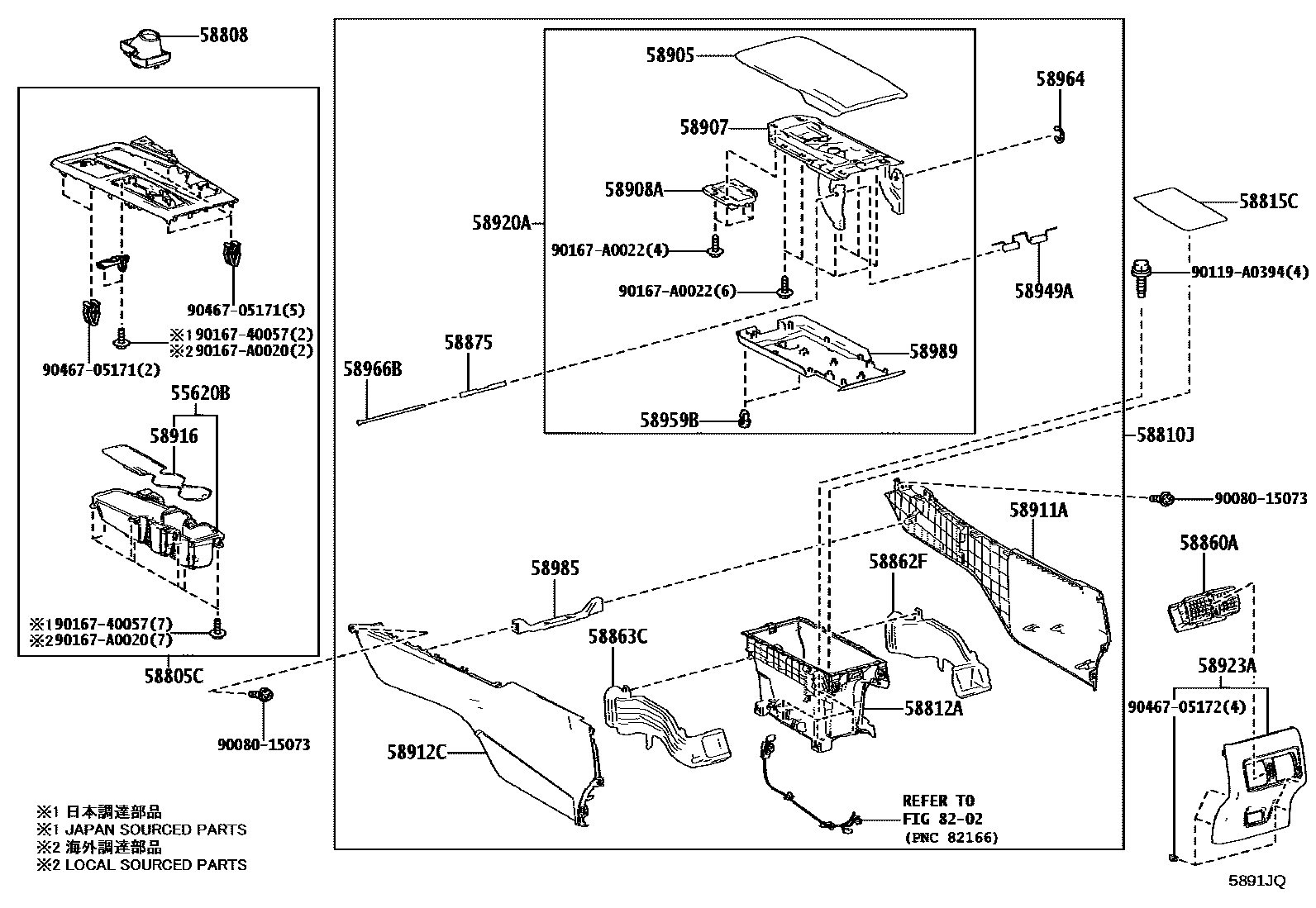

Toyota CAMRY — CONSOLE BOX & BRACKET
55620BHOLDER, INSTRUMENT PANEL CUP
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK, BLACK,TRIM2#,3#
58810JBOX ASSY, CONSOLE
BLACK,TRIM1#,2#
BLACK/RED,TRIM3#
BLACK/GREEN,TRIM1#
BLACK/BLUE,TRIM2#
BLACK/BROWN,TRIM2#
58812ABOX, CONSOLE, LOWER
58815CCARPET, CONSOLE BOX
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM1#,2#
58862FDUCT, CONSOLE BOX, NO.2
58863CDUCT, CONSOLE BOX, NO.3
58875SPACER, CONSOLE BOX
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
SOFT BLACK,TRIM1#,2#
BLACK/RED,TRIM3#
BLACK/GREEN,TRIM1#
BLACK/BLUE,TRIM2#
BLACK/BROWN,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM1#,2#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM1#,2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM1#,2#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM1#,2#
BLACK/RED,TRIM3#
BLACK/GREEN,TRIM1#
BLACK/BLUE,TRIM2#
BLACK/BROWN,TRIM2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM1#,2#
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER
58985RETAINER, CONSOLE BOX
58989PANEL, CONSOLE COMPARTMENT DOOR
BLACK,TRIM1#,2#
8202
9008015073
main90080-15073
90119A0394
main90119-A0394
9016740057
main90167-40057
90167A0020
main90167-A0020
90167A0022
main90167-A0022
9046705171
main90467-05171
9046705172
main90467-05172
32 parts on this diagram · 2 diagrams in section
