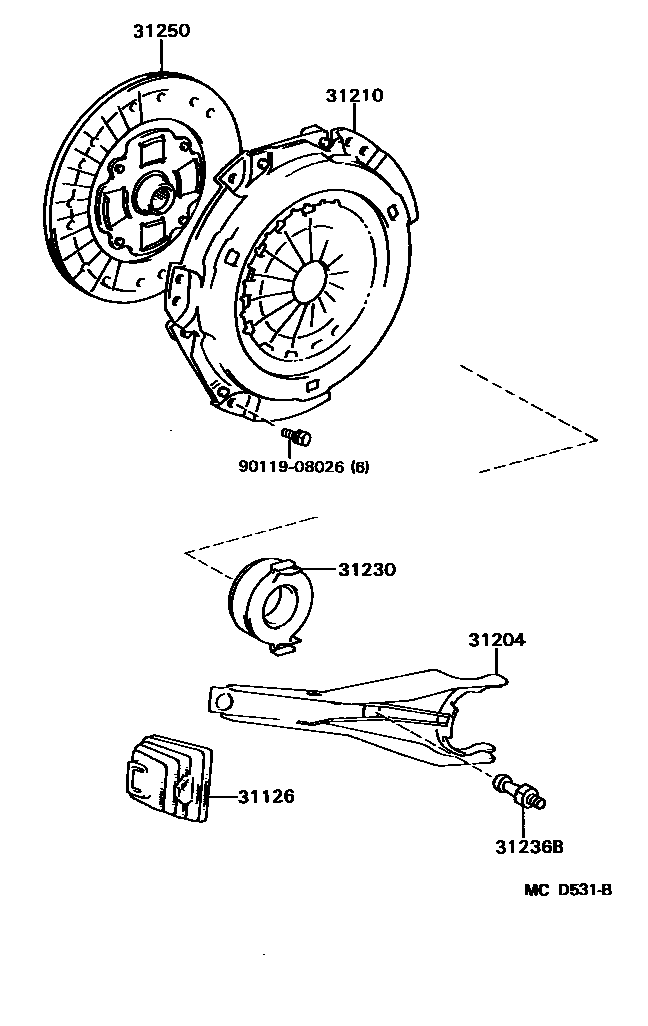

Toyota CAMRY — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iSV21..5F198608-198710

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iSV25,VZV21..5F198710-198808

main31204-32010iSV21..5F198608-198808

31210COVER ASSY, CLUTCH

main31210-32050iSV21..5F198608-198808

sub31210-32051

main31210-32090iVZV21..5F198802-198808

sub31210-32091

main31210-32100iSV25198710-198808

sub31210-32101

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iSV25,VZV21..5F198710-198808

main31230-32010iSV21..5F198608-198610

main31230-32020iSV21..5F198610-198808

sub31230-32100

31236BSUPPORT, RELEASE FORK

main31236-20060iSV25,VZV21..5F198710-198808

main31236-30030iSV21..5F198608-198808

31250DISC ASSY, CLUTCH

main31250-20140iSV25,VZV21..5F198710-198808

sub31250-20141

main31250-32032iSV21..5F198608-198708

main31250-32041iSV21..5F198708-198808

sub31250-32042

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section
