Toyota CAMRY — ARMREST & VISOR

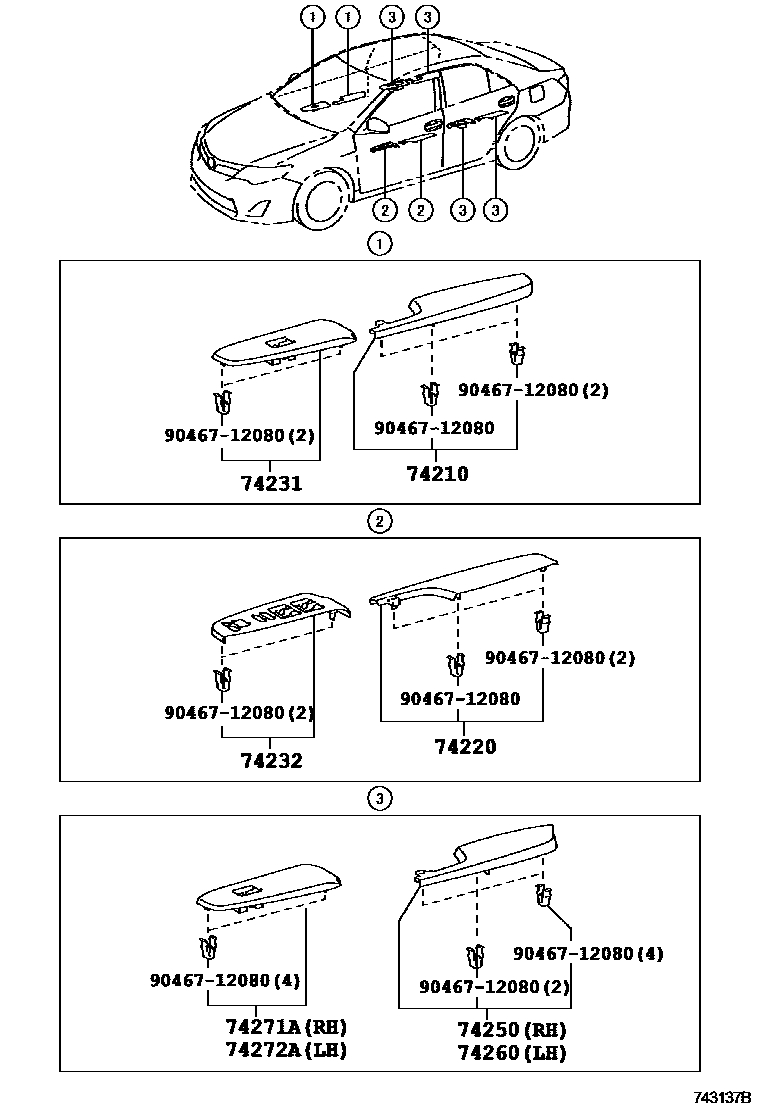

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-06070-A0i201212-201409
IVORY,TRIM00
main74210-06070-B1i201212-201409
GRAY,TRIM10
main74210-06070-C0i201109-201409
BLACK,TRIM0#,1#
main74210-06090-A1supersedes 74210-06080-A2i201212-201409
IVORY,TRIM0#
main74210-06090-B2supersedes 74210-06080-B3i201212-201409
GRAY,TRIM1#
main74210-06200-A0i201409-201606
FLAXEN,TRIM0#
main74210-06200-B0i201409-201606
GRAY,TRIM1#
main74210-06200-C0i201409-201606
BLACK,TRIM2#
main74210-06210-A1i201409-201606
FLAXEN,TRIM0#
main74210-06210-B1i201409-201606
GRAY,TRIM1#
main74210-06210-C1i201409-201606
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-06070-A0i201212-201409
IVORY,TRIM00
main74220-06070-B1i201212-201409
GRAY,TRIM10
main74220-06070-C0i201109-201212
BLACK,TRIM0#,1#
main74220-06090-A1supersedes 74220-06080-A2i201212-201409
IVORY,TRIM0#
main74220-06090-B2supersedes 74220-06080-B3i201212-201409
GRAY,TRIM1#
main74220-06200-A0i201409-201606
FLAXEN,TRIM0#
main74220-06200-B0i201409-201606
GRAY,TRIM1#
main74220-06200-C0i201409-201606
BLACK,TRIM2#
main74220-06210-A1i201409-201606
FLAXEN,TRIM0#
main74220-06210-B1i201409-201606
GRAY,TRIM1#
main74220-06210-C1i201409-201606
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-06330-C1i201109-201409
BLACK,TRIM0#,1#
main74231-06360-E0i201109-201409
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
main74231-06610i201409
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-06360-C1i201109-201409
BLACK,TRIM0#,1#
main74232-06380-E0i201109-201409
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
main74232-06640i201409-201606
74250ARMREST ASSY, REAR RH
main74250-06040-A0i201212-201409
IVORY,TRIM00
main74250-06040-B1i201212-201409
GRAY,TRIM10
main74250-06040-C0i201109-201212
BLACK,TRIM0#,1#
main74250-06060-A1supersedes 74250-06050-A2i201212-201409
IVORY,TRIM0#
main74250-06060-B2supersedes 74250-06050-B3i201212-201409
GRAY,TRIM1#
main74250-06170-A0i201409-201606
FLAXEN,TRIM0#
main74250-06170-B0i201409-201606
GRAY,TRIM1#
main74250-06170-C0i201409-201606
BLACK,TRIM2#
main74250-06180-A1i201409-201606
FLAXEN,TRIM0#
main74250-06180-B1i201409-201606
GRAY,TRIM1#
main74250-06180-C1i201409-201606
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-06040-A0i201212-201409
IVORY,TRIM00
main74260-06040-B1i201212-201409
GRAY,TRIM10
main74260-06040-C0i201109-201212
BLACK,TRIM0#,1#
main74260-06060-A1supersedes 74260-06050-A2i201212-201409
IVORY,TRIM0#
main74260-06060-B2supersedes 74260-06050-B3i201212-201409
GRAY,TRIM1#
main74260-06170-A0i201409-201606
FLAXEN,TRIM0#
main74260-06170-B0i201409-201606
GRAY,TRIM1#
main74260-06170-C0i201409-201606
BLACK,TRIM2#
main74260-06180-A1i201409-201606
FLAXEN,TRIM0#
main74260-06180-B1i201409-201606
GRAY,TRIM1#
main74260-06180-C1i201409-201606
BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-06280-C1i201109-201409
BLACK,TRIM0#,1#
main74271-06300-E0i201109-201409
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
main74271-06480i201409
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-06280-C1i201109-201409
BLACK,TRIM0#,1#
main74272-06300-E0i201109-201409
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
main74272-06480i201409
9046712080
main90467-12080

9 parts on this diagram · 4 diagrams in section

ARMREST & VISOR for Toyota CAMRY

This section contains 20 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CAMRY. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR RH.
