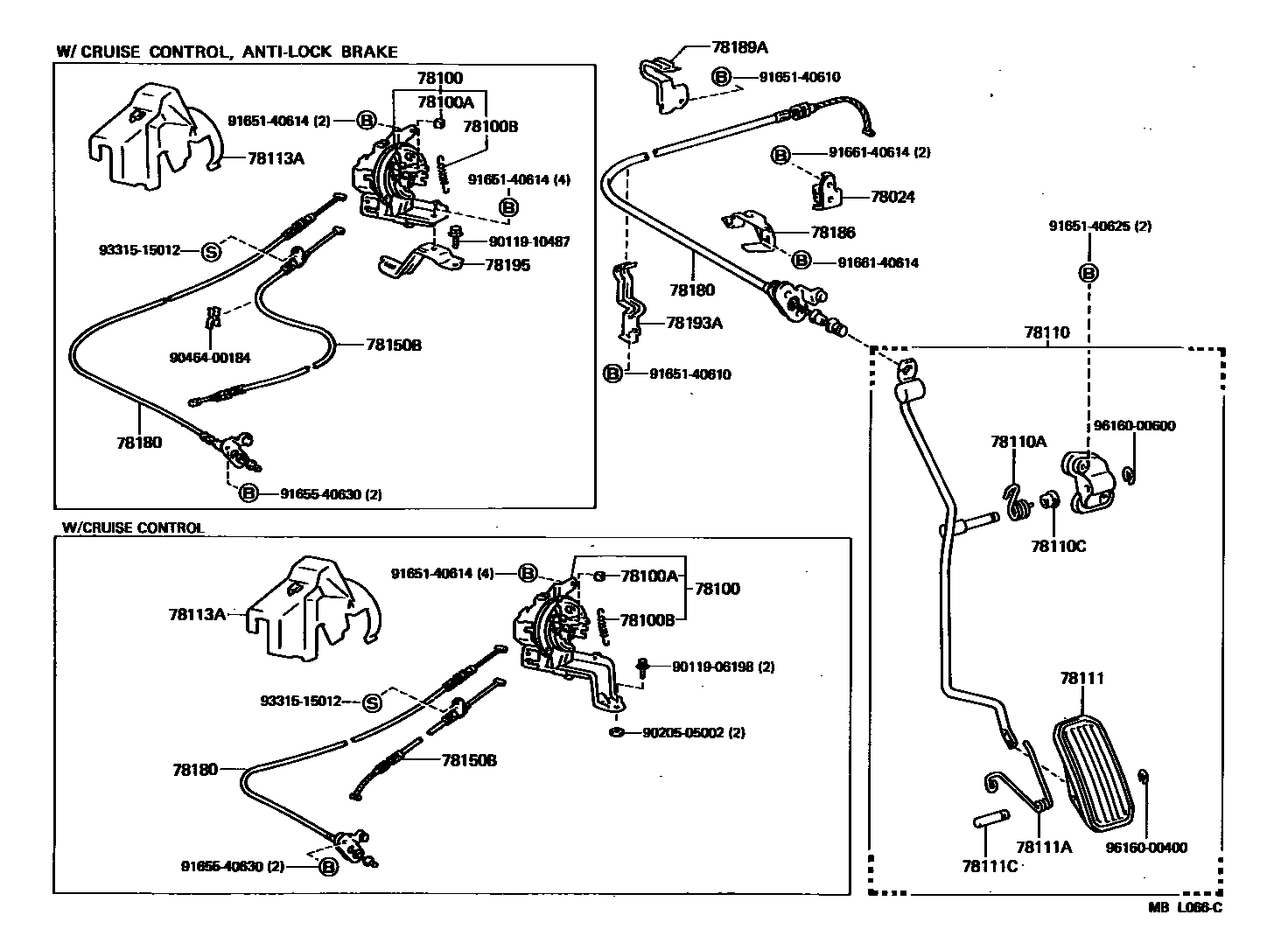

Toyota CAMRY — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-32070iSV21198608-198710

main78024-32110iVZV21198802-198808

78100LINK ASSY, ACCELERATOR

main78100-32050iSV25,VZV21..LE198710-198808

W(UNTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

main78100-32060iSV21198608-198710

78100ASTOPPER, ACCELERATOR LINK

main78118-12010iSV2#,VZV21198608-198808

78100BSPRING (FOR ACCELERATOR LINK)

main90507-08007iSV2#,VZV21198608-198808

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32090iSV21..4FC198608-198710

main78120-32100iSV2#,VZV21..5F198710-198808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iSV21..4FC198608-198710

main90508-23069iSV2#,VZV21..5F198710-198808

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-12023iSV21198608-198710

78111PEDAL, ACCELERATOR

main78111-32010iSV21198608-198710

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iSV21198608-198710

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iSV21198608-198710

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-20130iSV2#,VZV21198608-198808

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-32070iSV21198608-198710

main78150-32090iVZV21..LE198802-198808

main78150-32150iSV25..LE198710-198808

W(UNTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

78180WIRE ASSY, ACCELERATOR

main78180-32170iSV21198608-198710

W/CRUISE CONTROL

main78180-32171iSV25..LE198802-198808

W(CRUISE CONTROL)

main78180-32230iSV2#198710-198808

main78180-32240iVZV21198802-198805

main78180-32241iVZV21198805-198808

main78180-32250iSV25..LE198710-198802

W(UNTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

main78180-32330iVZV21..LE198802-198808

W(CRUISE CONTROL)

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-32040iSV21198608-198710

main78186-32050iVZV21198802-198808

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-32040iSV21198608-198710

sub78189-32041

main78189-32050iVZV21198802-198808

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32050iSV21198608-198710

78195BRACKET, ACCELERATOR LINK

main78195-32050iSV25..LE198710-198802

main78195-32051iSV25,VZV21..LE198802-198808

9011906198

main90119-06198

9011910487

main90119-10487

9020505002

main90205-05002

9046400184

main90464-00184

9165140610

main91651-40610

9165140614

main91651-40614

9165140625

main91651-40625

9165540630

main91655-40630

9166140614

main91661-40614

9331515012

main93315-15012

9616000400

main96160-00400

9616000600

main96160-00600

29 parts on this diagram · 2 diagrams in section
