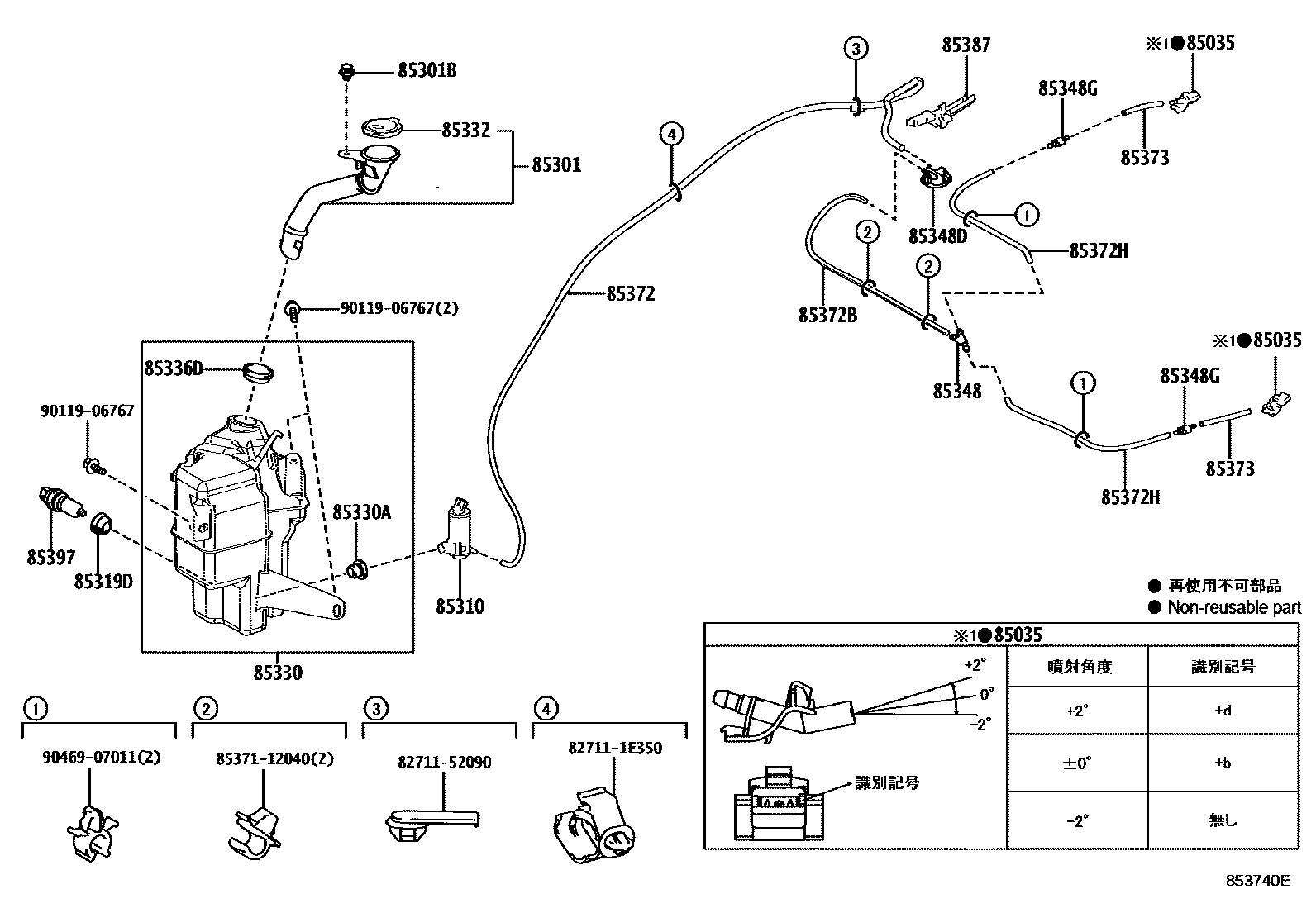

Toyota CAMRY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201706-202101

main85381-30230×2i202102

main85381-30240×2i201706-202101

85301INLET SUB-ASSY, WASHER

main85329-33540i201706-201808

main85329-33550i201808-202101

85301BCLIP, WASHER

main90467-07214i202102

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47060i201706-201707

main85330-47080i201707-202101

main85330-47081i202110

85319DPACKING, FRONT WASHER

main85319-33230i201706-201808

85330JAR ASSY, WINDSHIELD WASHER

main85315-33520i201706-201808

main85315-33530i201808-202101

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201706-202101

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202102

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201706-202101

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410i202102

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-30030i202303

main85373-33030i201706-202101

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-26020×2i201706-202101

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i201706-202101

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201706-202101

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299×2i201706-202101

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201706-202101

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-33040i201706-202101

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i201706-201808

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

9046907011

main90469-07011

23 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
