Toyota CAMRY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-AA040×2i200109-200204

main85381-AA041×2i200204-200301

main85381-AA042×2i200301-200406

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200109-200406

85330JAR ASSY, WINDSHIELD WASHER

main85315-33270i200109-200406

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200109-200406

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200109-200406

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200109-200406

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-10250i200109-200406

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i200109-200406

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-14390i200109-200406

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-20800i200109-200406

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200109-200406

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200109-200406

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200109-200406

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200109-200406

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i200109-200406

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33024×2i200109-200406

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904455

main90099-04455

9011906767

main90119-06767

9017906274

main90179-06274

9046907002

main90469-07002

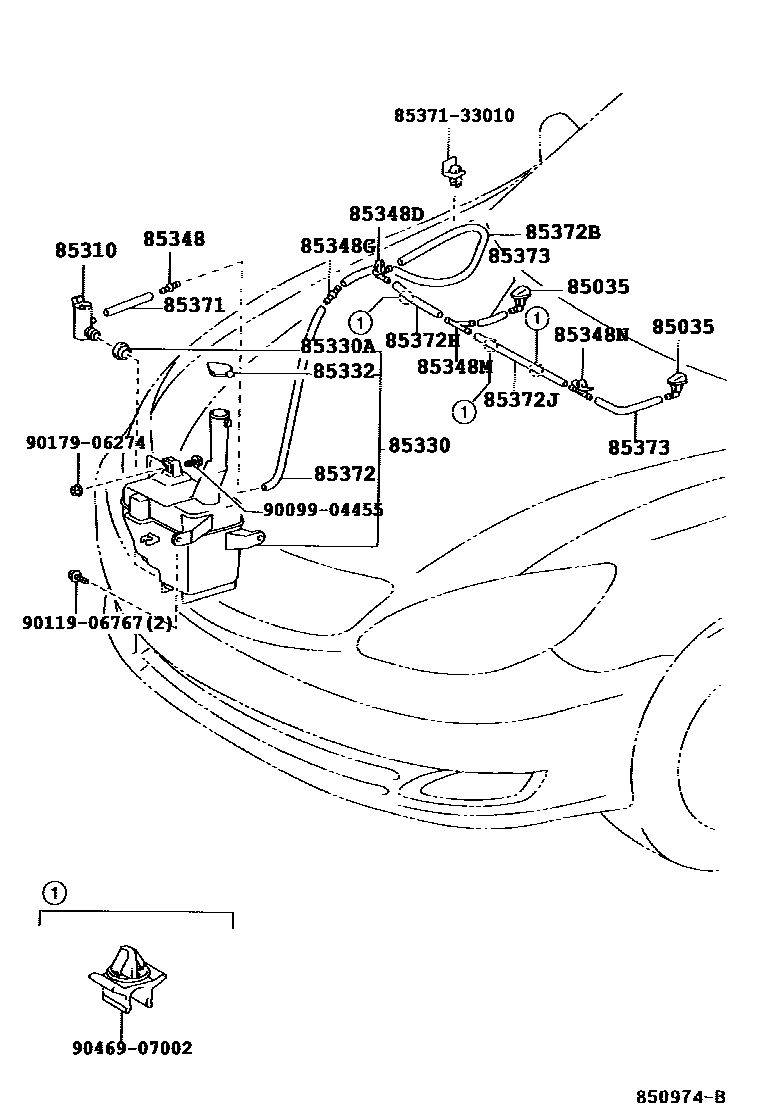

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
