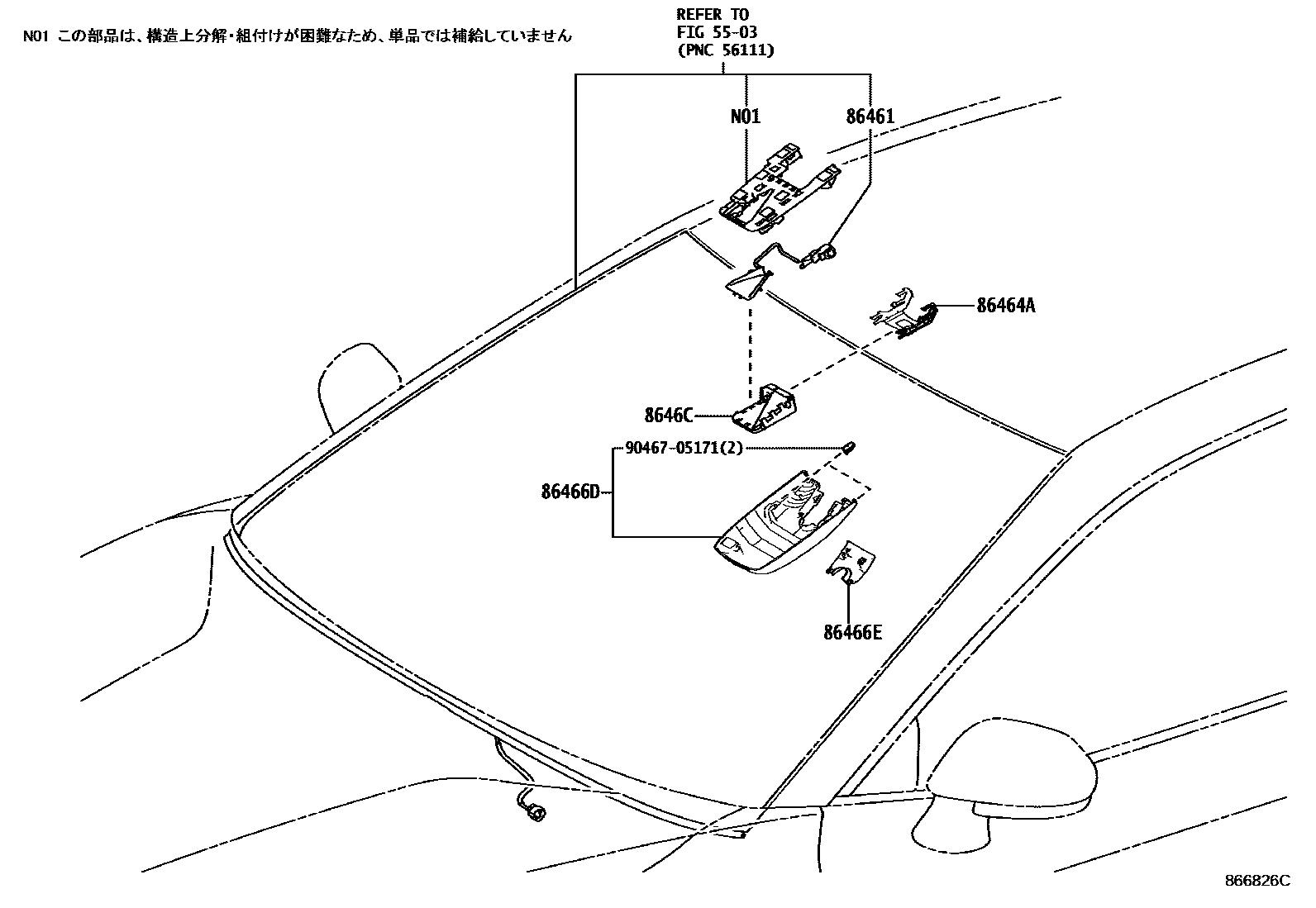

Toyota CAMRY — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86401-33030iAXVH7#202102

main86461-33030iAXVH7#201706-202101

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXVH7#202102

main86464-71010iAXVH7#201706-202101

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-33060iAXVH7#201706-202101

main86466-33110iAXVH7#202102

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-33070iAXVH7#201706-202101

8646CCAMERA, FORWARD RECOGNITION

main8646C-06030iAXVH70201706-201808

main8646C-06050iAXVH70201808-201909

main8646C-06070iAXVH7#201910-202101

main8646C-33040iAXVH7#202102-202111

main8646C-33041iAXVH7#202111

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
