Toyota CAMRY — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12327ASTAY, ENGINE MOUNTING, NO.2 RH
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510381
main90105-10381
9010510444
main90105-10444
9010510491
main90105-10491
9010512105
main90105-12105
9010512274
main90105-12274
9011910599
main90119-10599
9011910647
main90119-10647
9011910820
main90119-10820
9011912329
main90119-12329
9011912356
main90119-12356
90178T0027
main90178-T0027
9017910176
main90179-10176
9017912152
main90179-12152
9017914062
main90179-14062

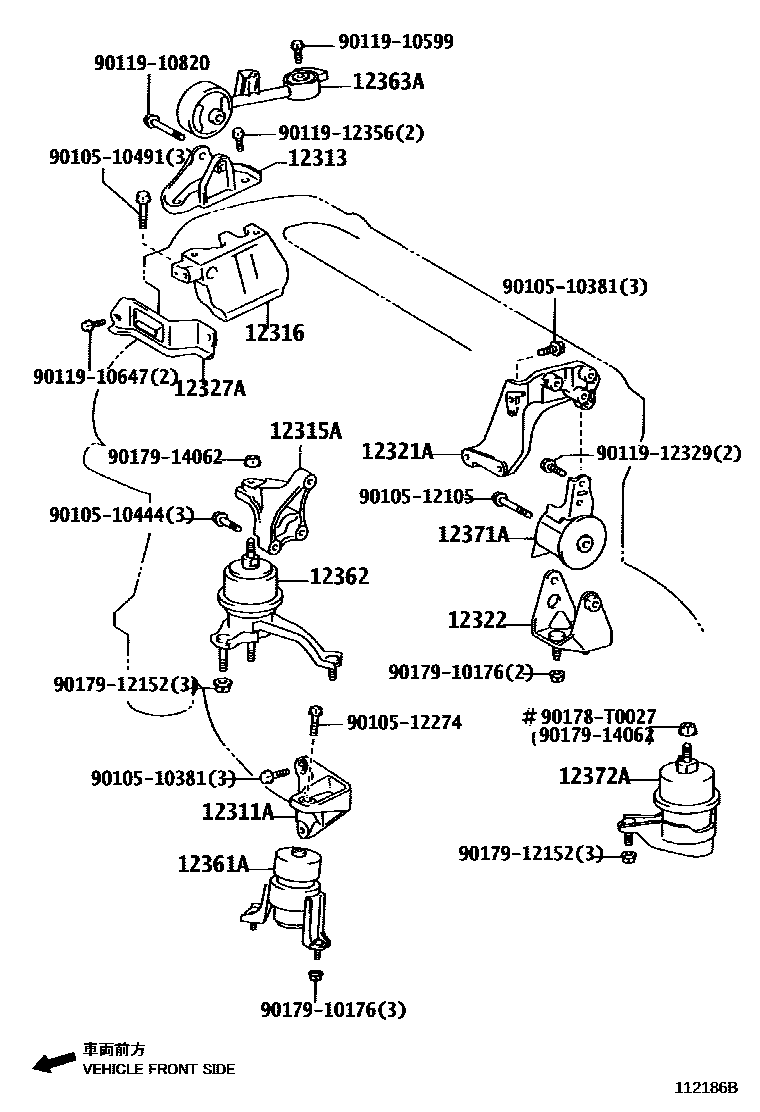

26 parts on this diagram · 1 diagram in section
MOUNTING for Toyota CAMRY
This section contains 26 genuine Toyota parts for the MOUNTING system of the Toyota CAMRY. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
