Toyota CAMRY — METER

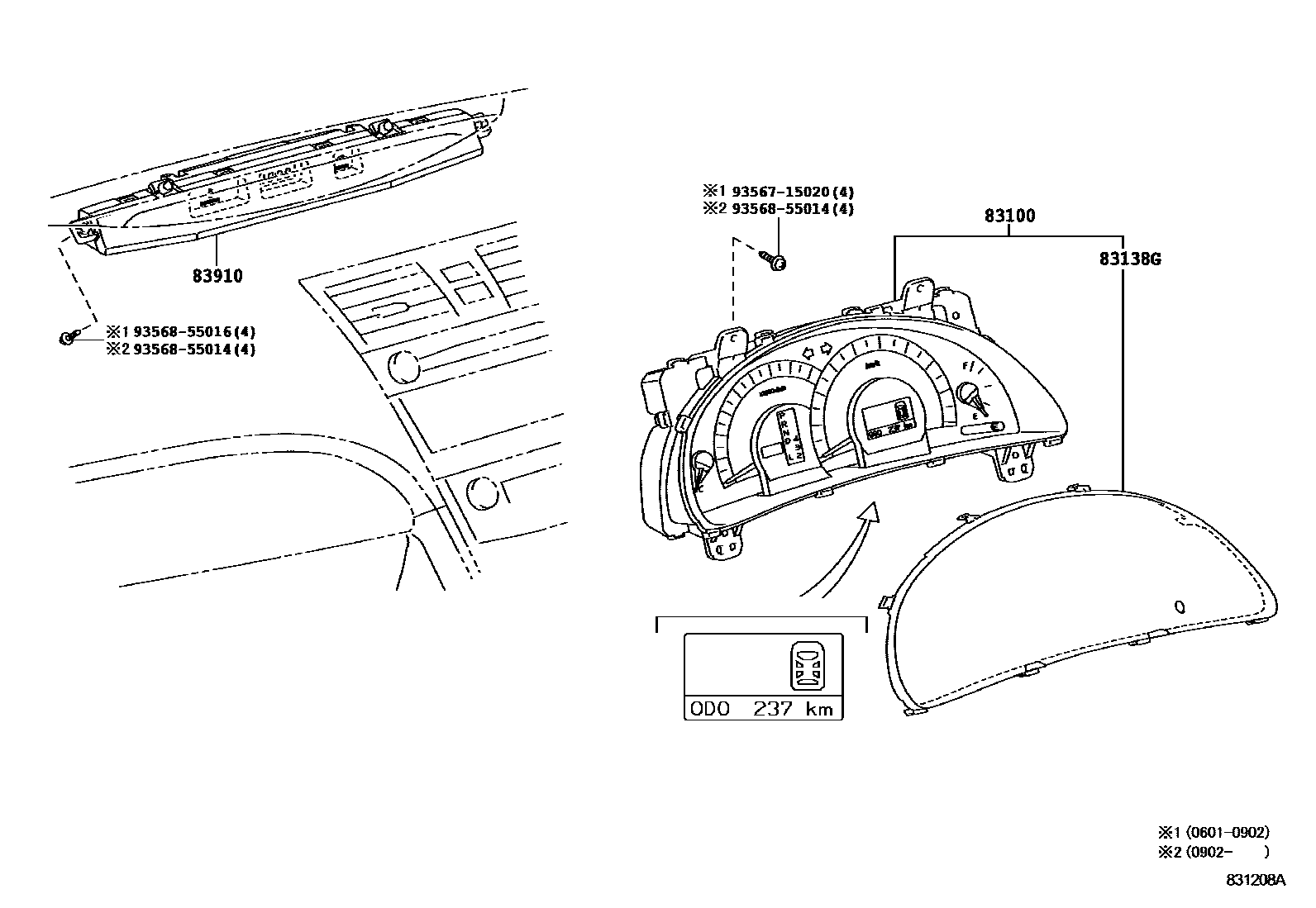

Parts diagram

83100METER ASSY, COMBINATION

main83800-33A50i200601-200707

main83800-33A60i200601-200707

main83800-33D60i200707-200901

main83800-33D70i200707-200901

main83800-33F20i200901-201001

main83800-33F30i200901-201001

main83800-33K10i201001-201108

main83800-33K20i201001-201108

83138GGLASS, COMBINATION METER

main83852-33870i200601-200901

83910CLOCK ASSY

main83910-33190i200601-200901

9356715020

main93567-15020

9356855014

main93568-55014

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section

METER for Toyota CAMRY

This section contains 6 genuine Toyota parts for the METER system of the Toyota CAMRY. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY.
