Toyota CAMRY — FRONT SPRING & SHOCK ABSORBER

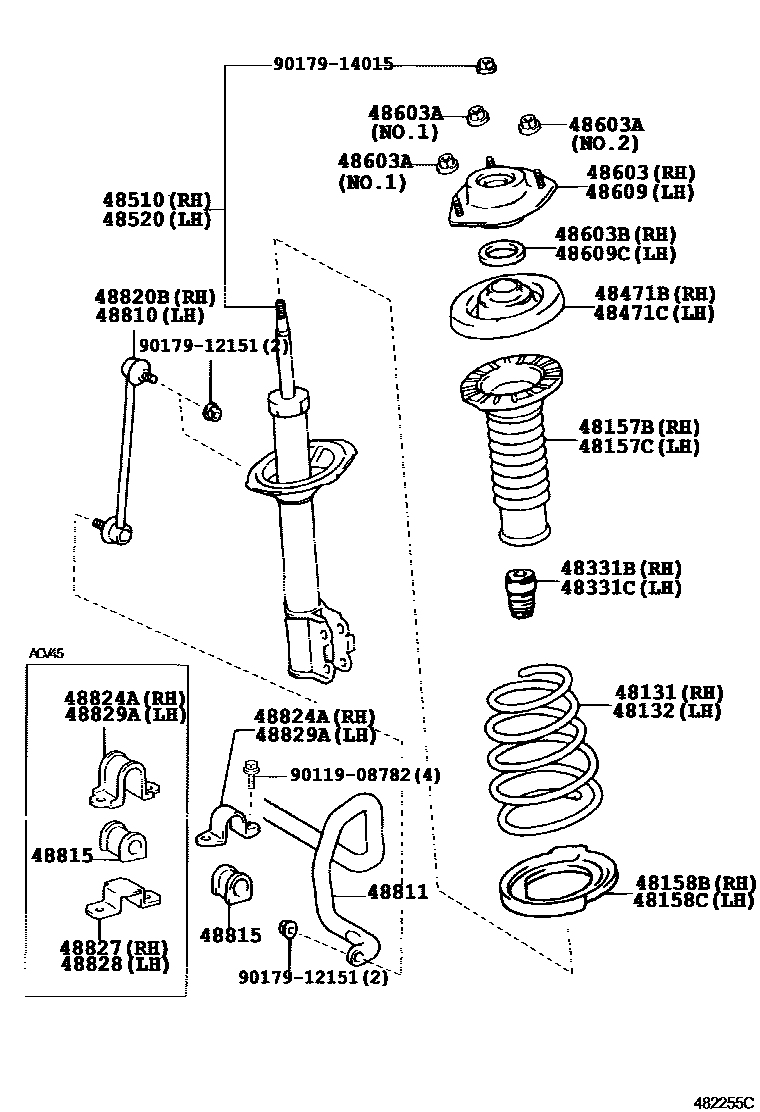

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-33A20i200601-200807
main48131-33A80i200601-200901
48132SPRING, FRONT COIL, LH
main48131-33A20i200601-200807
main48131-33A80i200601-200901
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-33072i200601-200901
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-33072i200601-200901
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-33031i200601-200901
main48158-33050i201104-201108
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-33031i200601-200901
main48158-33050i201104-201108
48331BBUMPER, FRONT SPRING, RH
main48331-33032i200901-201108
48331CBUMPER, FRONT SPRING, LH
main48331-33032i200601-200901
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-41010i200601-200901
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-41010i200601-200901
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80308i200601-200901
main48510-80310i200601-200901
main48510-80479i200901-201108
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-80089i200601-200901
main48520-80091i200901-201108
main48520-80219i200901-201108
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-33190i200901-201108
main48609-33210i200601-200901
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10005×4i200601-200901
main90178-10017×2i200601-200901
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
main90903-63014i200601-200901
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-33190i200901-201108
main48609-33210i200601-200901
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
main90903-63014i200601-200901
48810LINK ASSY, FRONT STABILIZER, LH
main48820-33040i200601-200901
main48820-33050i200601-200901
main48820-33070i201105-201108
48811BAR, STABILIZER, FRONT
main48811-33160i200601-200901
main48811-33180i200901-201108
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-33100×2i200901-201108
main48815-33110×2i200601-200901
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-33040i200901-201104
main48820-33050i200601-200901
main48820-33070i201105-201108
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-26210i200901-201108
main48824-28180i200901-201108
48827BRACKET, FRONT STABILIZER, NO.2 RH
main48827-48010i200601-200901
48828BRACKET, FRONT STABILIZER, NO.2 LH
main48827-48010i200901-201108
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-26210i200601-200901
main48824-28180i200601-200901
9011908782
main90119-08782
9017912151
main90179-12151
9017914015
main90179-14015

28 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota CAMRY

This section contains 28 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota CAMRY. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH, INSULATOR, FRONT COIL SPRING, LOWER RH.
