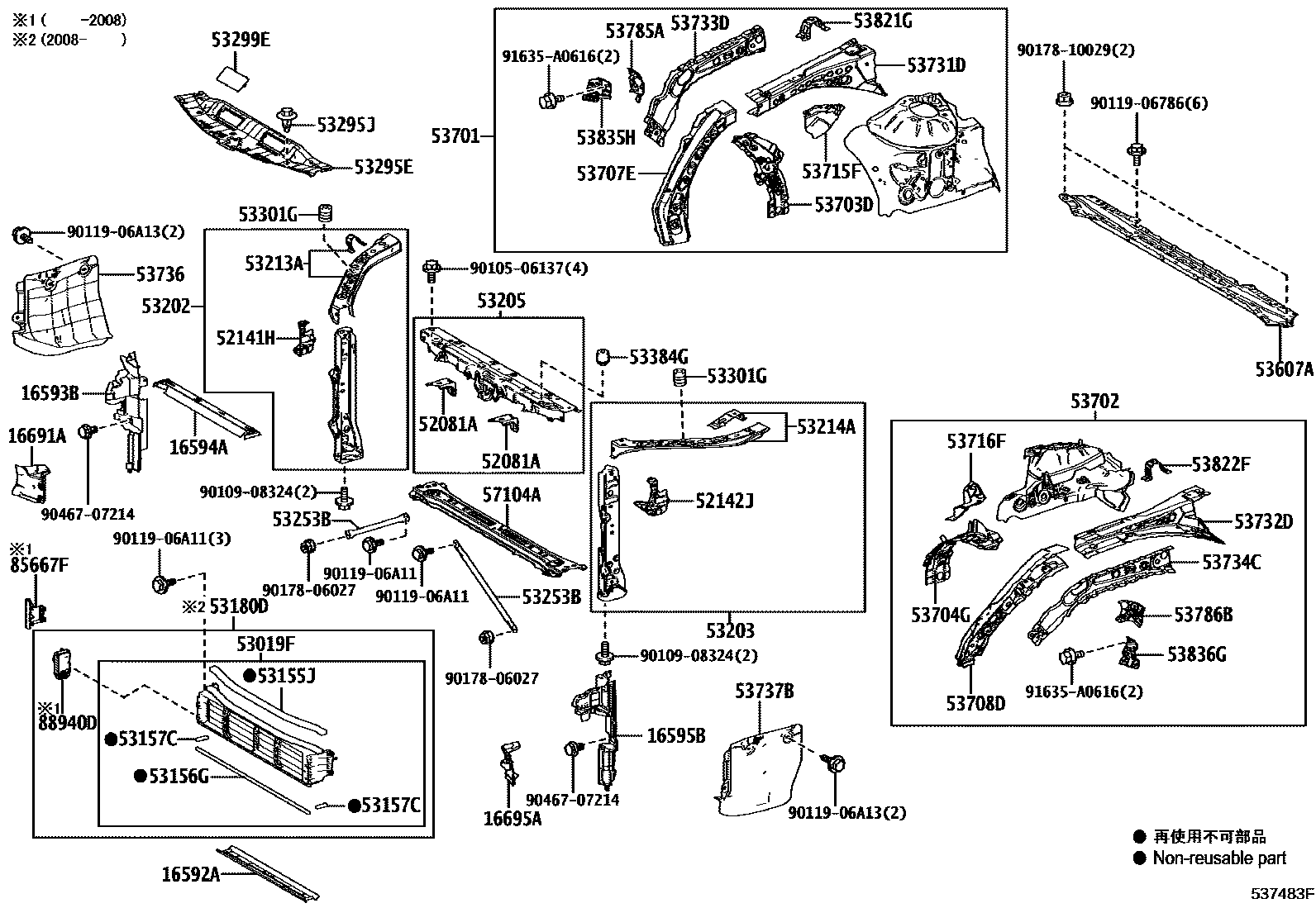

Toyota CAMRY — FRONT FENDER APRON & DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010i202102

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25010i201706-202101

main16593-25050i201808-202101

main16593-25070i202102

main16593-25180i202102

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25010i201706-202101

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25010i201706-202101

main16595-25050i201808-202101

main16595-25070i202102

main16595-25190i202102

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25010i201706-202007

main16691-25020i201808-202007

main16691-25050i202008-202101

main16691-25100i202008-202101

main16691-25110i202102

main16691-25120i202102

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25010i201706-202101

main16695-25020i201808-202101

main16695-25050i202102

main16695-25100i202102

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-33030×2i201706-202101

52141HARM, FRONT BUMPER, UPPER RH

main52141-33130i201706-202101

52142JARM, FRONT BUMPER, UPPER LH

main52142-33110i201706-202101

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33010i201706-201812

main53019-33011i201901-202008

main53019-33020i202008-202101

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33070i201706-202008

main53155-33120i202008-202101

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010i201706-202101

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010×2i201706-202101

53180DSHUTTER ASSY, RADIATOR

main53180-33090i202008-202101

main53180-33091i202304-202311

main53180-33092i202312

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-33903i201706-202101

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-33902i201706-202101

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-33901i201706-202101

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33902i201706-202101

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33902i202102

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-33010×2i201706-202101

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33130i201706-202101

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217×5i202102

53299EPLATE, COOL AIR INTAKE DUCT

main53299-33020i201706-202101

53301GCUSHION, HOOD BUMPER

main90541-15033×2i201706-202101

main90541-15037×2i202112-202312

53384GCUSHION, HOOD, CENTER

main90541-09145×2i202102

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-33010i201706-202101

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33190i201706-202101

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33150i201706-202101

main53702-33170i202102

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-33060i201706-202101

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-33060i201706-202101

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-33020i201706-202101

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-33010i201706-202101

53715FAPRON, FENDER SIDE, RH

main53715-33010i201706-202101

53716FAPRON, FENDER SIDE, LH

main53716-33010i201706-202101

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33100i201706-202101

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33090i201706-202101

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33060i201706-202101

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33060i201706-202101

53736SEAL, FRONT FENDER APRON, RH

main53736-33050i201706-202101

53737BSEAL, FRONT FENDER APRON, LH

main53737-33030i201706-202101

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-33010i201706-202101

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-33010i201706-202101

53821GBRACKET, FRONT FENDER, REAR RH

main53821-33080i201706-202101

53822FBRACKET, FRONT FENDER, REAR LH

main53822-33070i201706-202101

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-33110i201706-202101

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-33120i201706-202101

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33080i201706-202101

85667FCOVER, MOTOR

main85667-10010i201706-202008

88940DACTUATOR ASSY, SWING GRILLE

main88940-33050i201706-201906

main88940-33070i201907-202008

9010506137

main90105-06137

9010908324

main90109-08324

9011906786

main90119-06786

9011906A11

main90119-06A11

9011906A13

main90119-06A13

9017806027

main90178-06027

9017810029

main90178-10029

9046707214

main90467-07214

91635A0616

main91635-A0616

58 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota CAMRY

This section contains 67 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CAMRY. Key components include: GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.2, GUIDE, RADIATOR AIR, NO.1 LH, PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH.
