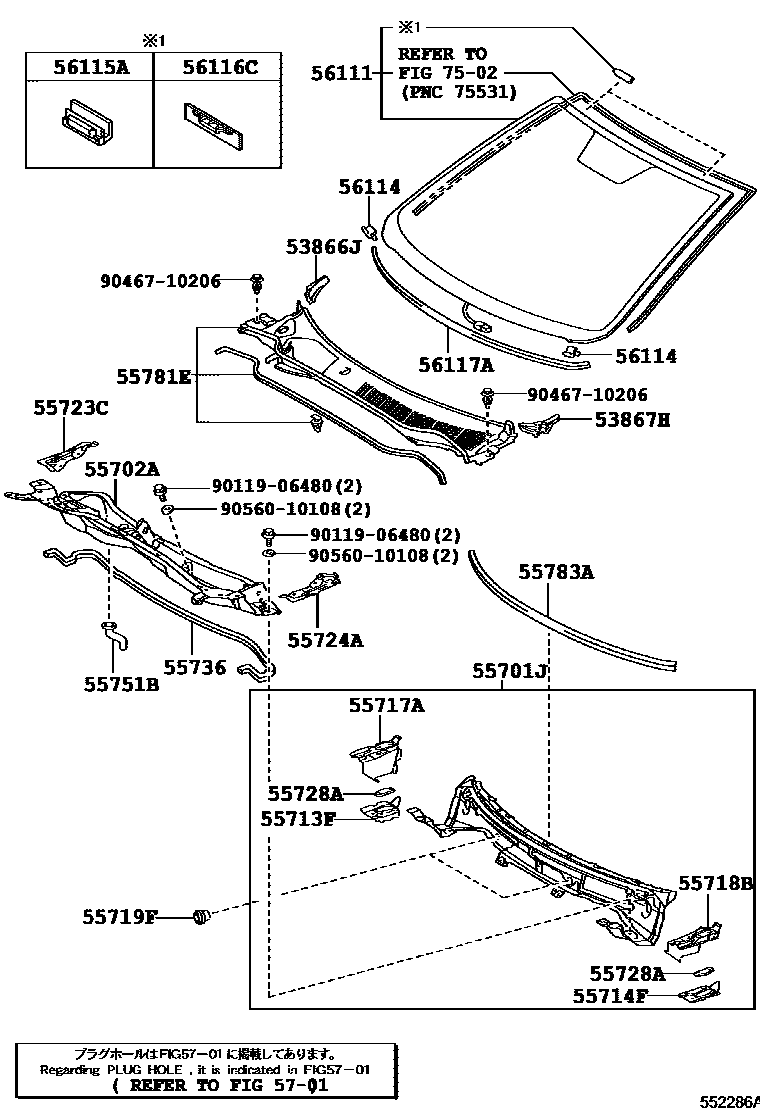

Toyota CAMRY — COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33060i200901-201108

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33060i200601-200901

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-33160i200601-200901

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-33020i200901-201108

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-33030i200601-200901

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55714-33030i200601-200901

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33040i200601-200901

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33040i200901-201108

55719FPACKING, FRONT LOWER PANEL

main55719-33020×2i200901-201108

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33040i200601-200901

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33040i200601-200901

55728AREINFORCEMENT, HOOD STOPPER

main55728-33030×2i200601-200901

55736SEAL, WATER GUARD PLATE

main55736-33020i200609-200901

main55736-33030i200601-200608

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-33020i200601-200901

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33130supersedes 55708-33110i200601-200901

55783APAD, COWL TOP SILENCER

main55783-33060×2i200601-200901

56111GLASS, WINDSHIELD

main56101-33320supersedes 56101-33611i200901-200908

main56101-33321supersedes 56101-33611i200909-201108

main56101-33330supersedes 56101-33611i200901-200908

main56101-33331supersedes 56101-33611i200909-201108

main56101-33340i200901-200908

main56101-33341i200909-201108

main56101-33350i200901-200908

main56101-33351i200909-201108

main56101-33620supersedes 56101-33611i200901-200908

main56101-33621supersedes 56101-33611i200909-201108

main56101-33640i200601-200901

main56101-33650i200601-200901

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2i200601-200605

main56114-33050×2i200606-200901

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i200605-200901

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i200901-201108

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33100i200601-200901

5701HOLE PLUG

→ Go to FIG 57-01

7502FRONT MOULDING

→ Go to FIG 75-02

9011906480

main90119-06480

9046710206

main90467-10206

9056010108

main90560-10108

26 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CAMRY

This section contains 26 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CAMRY. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, COWL TOP, OUTER, PANEL SUB-ASSY, COWL TOP, OUTER FRONT, REINFORCEMENT, COWL TOP SIDE, RH.
