Toyota CAMRY — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-33240i200109-200406

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33030i200109-200203

main55717-33031i200203-200406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33030i200109-200406

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33030i200109-200406

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33030i200109-200406

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-33030×2i200109-200406

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-33020i200109-200406

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-33020i200109-200406

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33040i200109-200406

55783APAD, COWL TOP SILENCER

main55783-33040×2i200109-200406

56111GLASS, WINDSHIELD

main56101-33310i200406

main56101-33440i200109-200406

main56101-33450i200109-200212

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2i200406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i200406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i200406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33060i200406

main56117-64010i200211-200406

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040i200211-200406

main56118-33050i200109-200406

9046707076C0

main90467-07076C0

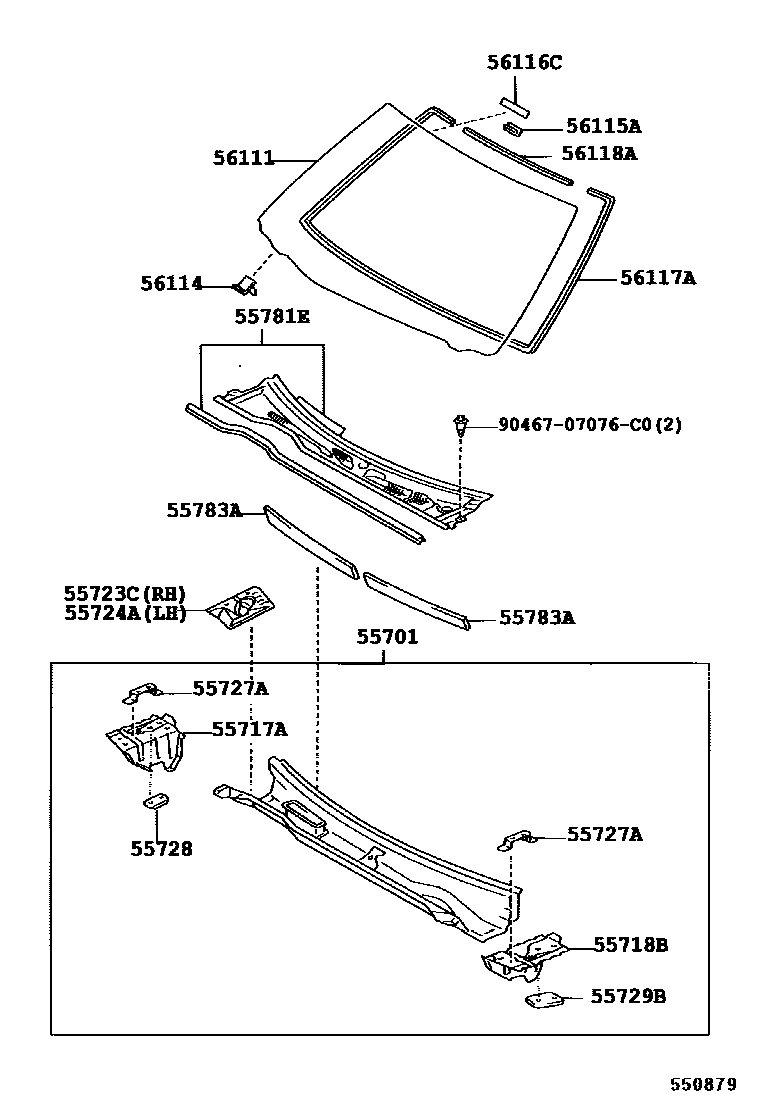

17 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CAMRY

This section contains 17 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CAMRY. Key components include: PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, INNER RH, PANEL, COWL TOP SIDE, INNER LH, REINFORCEMENT, COWL TOP SIDE, RH, REINFORCEMENT, COWL TOP SIDE, LH.
