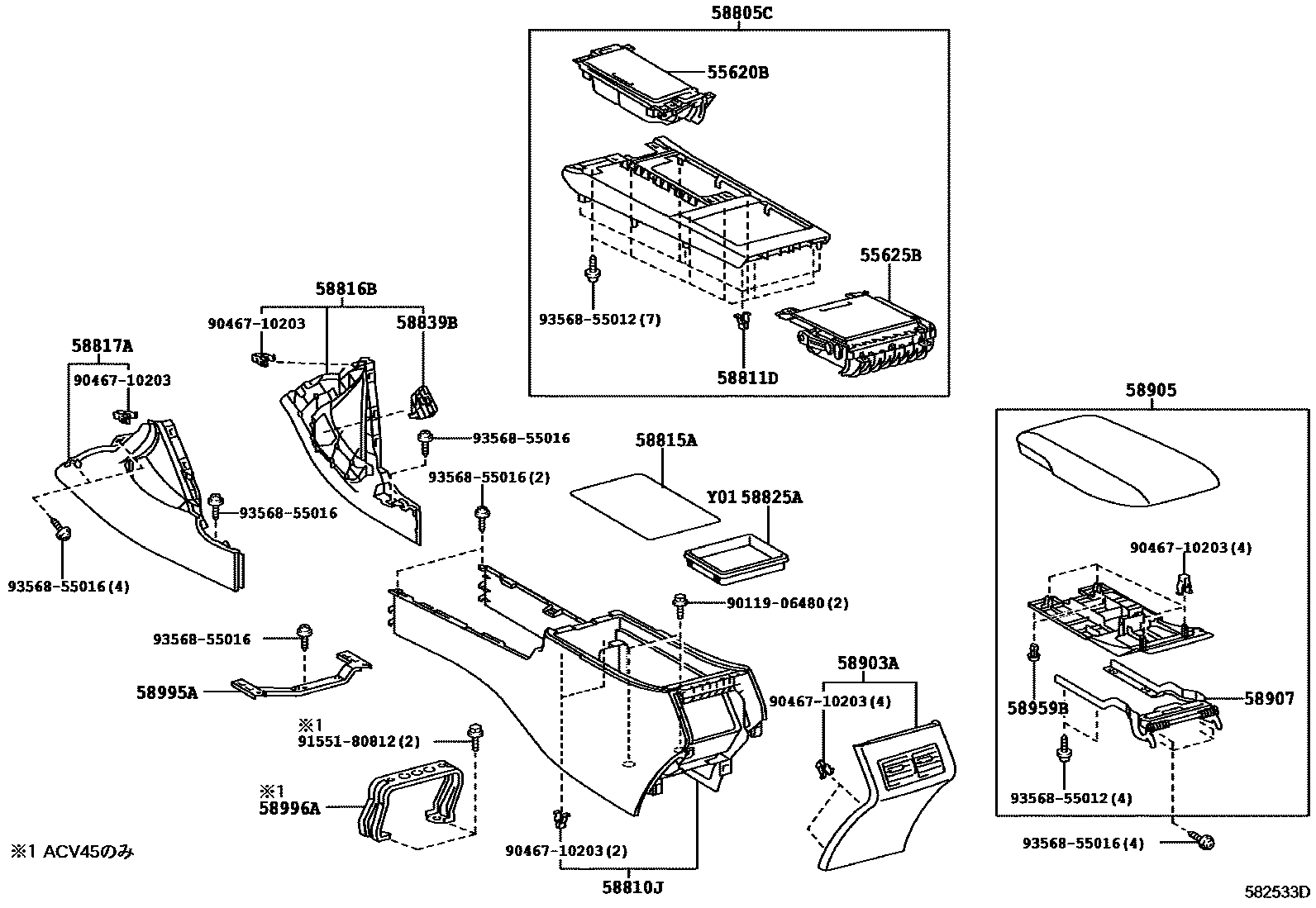

Toyota CAMRY — CONSOLE BOX & BRACKET

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-33210i200601-200707

main55620-33290i200901-201108

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-33030i200601-200707

main55625-33070i200901-201012

main55625-33120i201012-201108

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-33130-E1i200601-200707

GREGE,TRIM4#

main58805-33200-E0i200901-201108

GREGE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-33180-E0i200601-200901

GREGE,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-10203×5i200601-200901

58815ACARPET, CONSOLE BOX

main58815-33090i200601-200901

58816BINSERT, CONSOLE BOX

main58816-33010-E0i200601-200901

GREGE,TRIM4#

main58816-33020-E0i200901-201108

GREGE,TRIM4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-33010-E0i200601-200901

GREGE,TRIM4#

main58817-33020-E0i200901-201108

GREGE,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-33010i200601-200901

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58839-33040-E0i200601-200901

GREGE,TRIM4#

main58839-33050-E0i200901-201108

GREGE,TRIM4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-33060-E0i200601-200901

GREGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-33310-E0i200601-200610

GREGE,TRIM4#

main58905-33380-E0i200611-200901

GREGE,TRIM4#

main58905-33330-E0i200601-200610

main58905-33390-E0i200901-201108

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-33090i200601-200610

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i200601-200901

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-33050i200601-200901

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-33050i200601-200901

9011906480

main90119-06480

9046710203

main90467-10203

9155180812

main91551-80812

9356855012

main93568-55012

9356855016

main93568-55016

21 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota CAMRY

This section contains 24 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CAMRY. Key components include: COVER, SPARE SWITCH HOLE, HOLDER, CONSOLE BOX CUP, HOLDER, INSTRUMENT PANEL CUP, TRAY, INSTRUMENT PANEL CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER.
