Toyota CAMRY — CONSOLE BOX & BRACKET
55620BHOLDER, INSTRUMENT PANEL CUP
58811ABOX, CONSOLE, FRONT
DK.GRAY,TRIM1#
FAWN,TRIM4#
DK.GRAY,TRIM9#
FAWN,TRIM4#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
58823BBOX, CONSOLE COMPARTMENT
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58903APANEL SUB-ASSY, CONSOLE REAR END
DK.GRAY,TRIM9#
DK.GRAY,TRIM1#
FAWN,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK. GRAY SPORT BOLST,TRIM1#
FAWN,TRIM4#
DK. GRAY SPORT BOLSTER,TRIM9#
DK. GRAY SPORT BOLSTER,TRIM1#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
DK.GRAY,TRIM1#
DK.GRAY,TRIM9#
FAWN,TRIM4#
58912BBOX, REAR CONSOLE, LOWER
58916MAT, BOX BOTTOM
58917MAT, BOX BOTTOM, NO.2
58924APANEL, CONSOLE REAR END, NO.2
DK.GRAY,TRIM9#
DK.GRAY,TRIM1#
FAWN,TRIM4#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
5544822070SCREEN, INSTRUMENT PANEL SPEAKER
main55448-22070
9011906480
main90119-06480
9017906206
main90179-06206
9046710201
main90467-10201
9046805135
main90468-05135
9164180818
main91641-80818
9353054014
main93530-54014
9356714514
main93567-14514
9356854512
main93568-54512
9356855016
main93568-55016

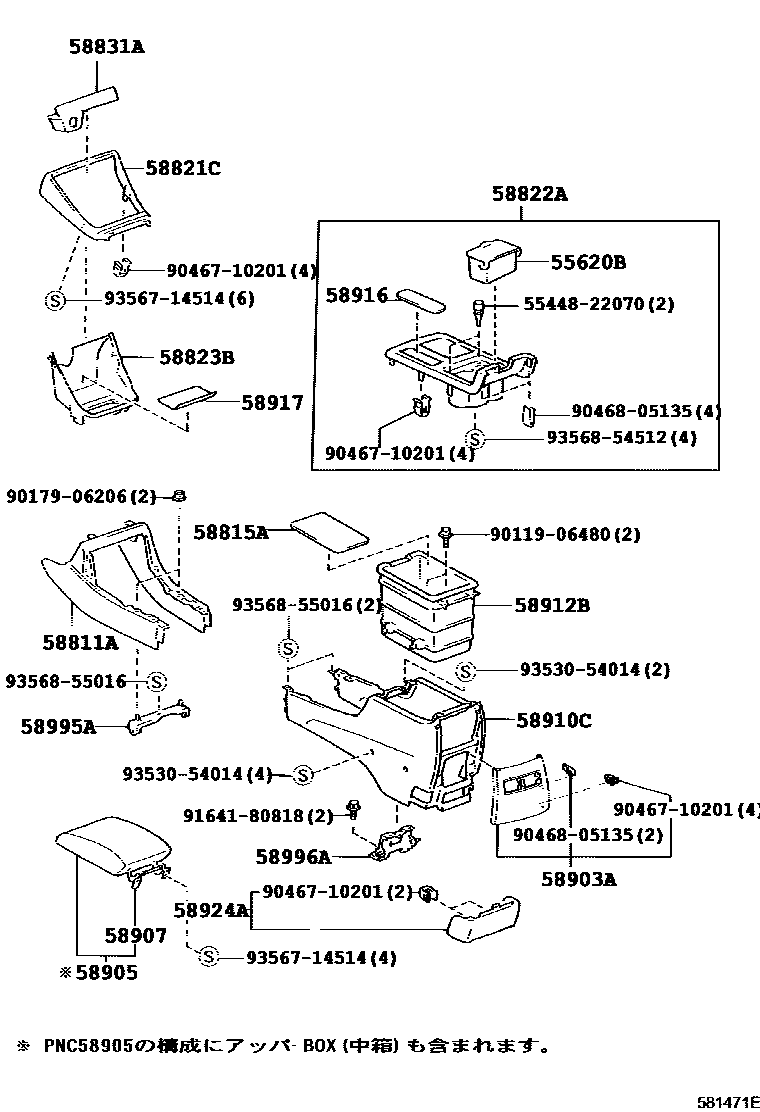

27 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota CAMRY
This section contains 33 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CAMRY. Key components include: HOLDER, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, BOX, CONSOLE, FRONT, BOX, CONSOLE, CARPET, CONSOLE BOX.
