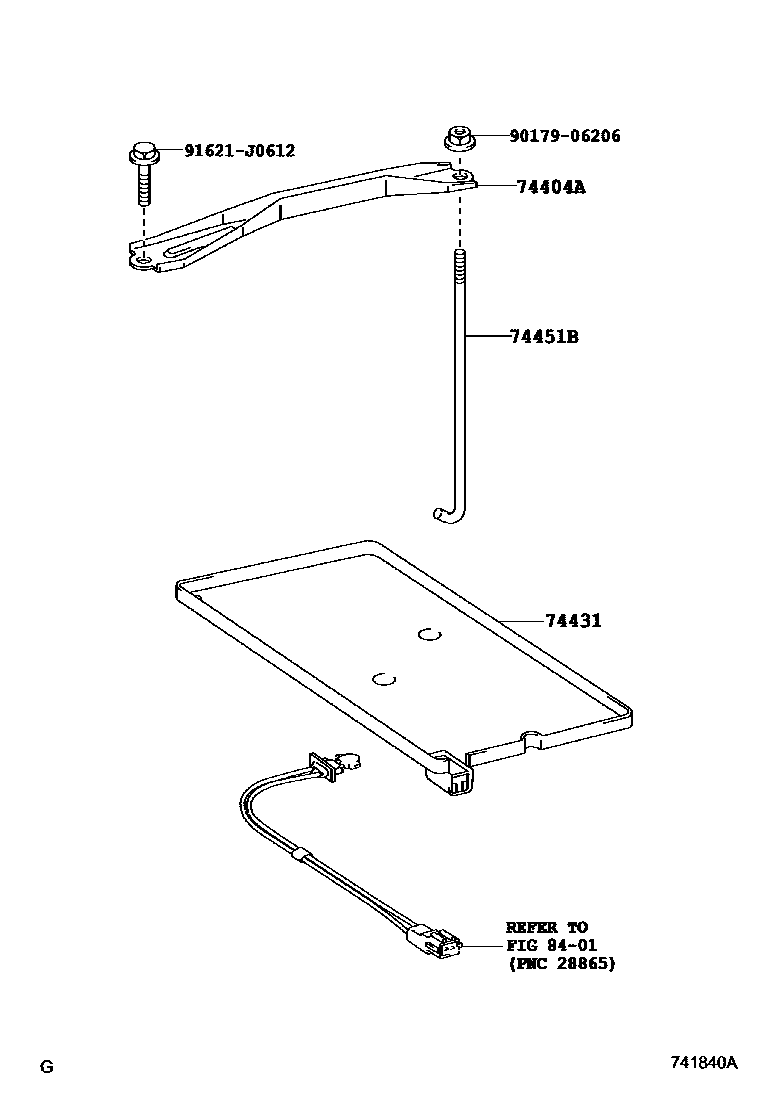

Toyota CAMRY — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-33100i200601-200901

74431TRAY, BATTERY

main74431-48010i200601-200901

74451BBOLT, BATTERY CLAMP

main74452-33010i200601-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906206

main90179-06206

91621J0612

main91621-J0612

6 parts on this diagram · 1 diagram in section

BATTERY CARRIER for Toyota CAMRY

This section contains 6 genuine Toyota parts for the BATTERY CARRIER system of the Toyota CAMRY. Key components include: CLAMP SUB-ASSY, BATTERY, TRAY, BATTERY, BOLT, BATTERY CLAMP, SWITCH & RELAY & COMPUTER.
