Toyota CAMRY — WINDSHIELD WIPER

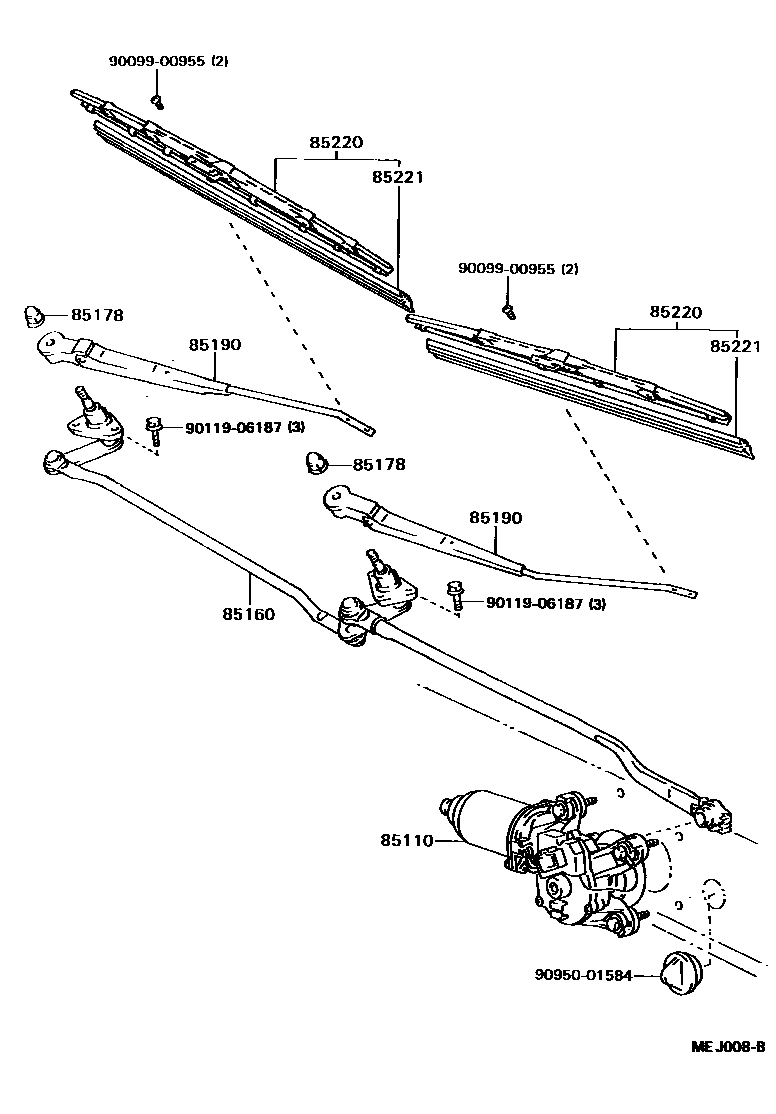

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32211i198808-199006

main85110-32212i199006-199106

85160LINK ASSY, WINDSHIELD WIPER

main85160-32110i198808-199106

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2i198808-199106

85190ARM ASSY, WINDSHIELD WIPER

main85190-32260i198808-198911

RH

main85190-32261i198911-199106

RH

main85210-32190i198808-198911

LH

main85210-32191i198911-199106

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16230i198808-198911

LH

main85220-16321i198911-199106

LH

main85220-32590i198808-198911

RH

main85220-32591i198911-199106

RH

85221BLADE, WINDSHIELD WIPER

main85221-30100i198808-199106

LH

main85221-32050i198808-199106

RH

9009900955

main90099-00955

9011906187

main90119-06187

9095001584

main90950-01584

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CAMRY

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CAMRY. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
