Toyota CAMRY — WINDSHIELD WASHER

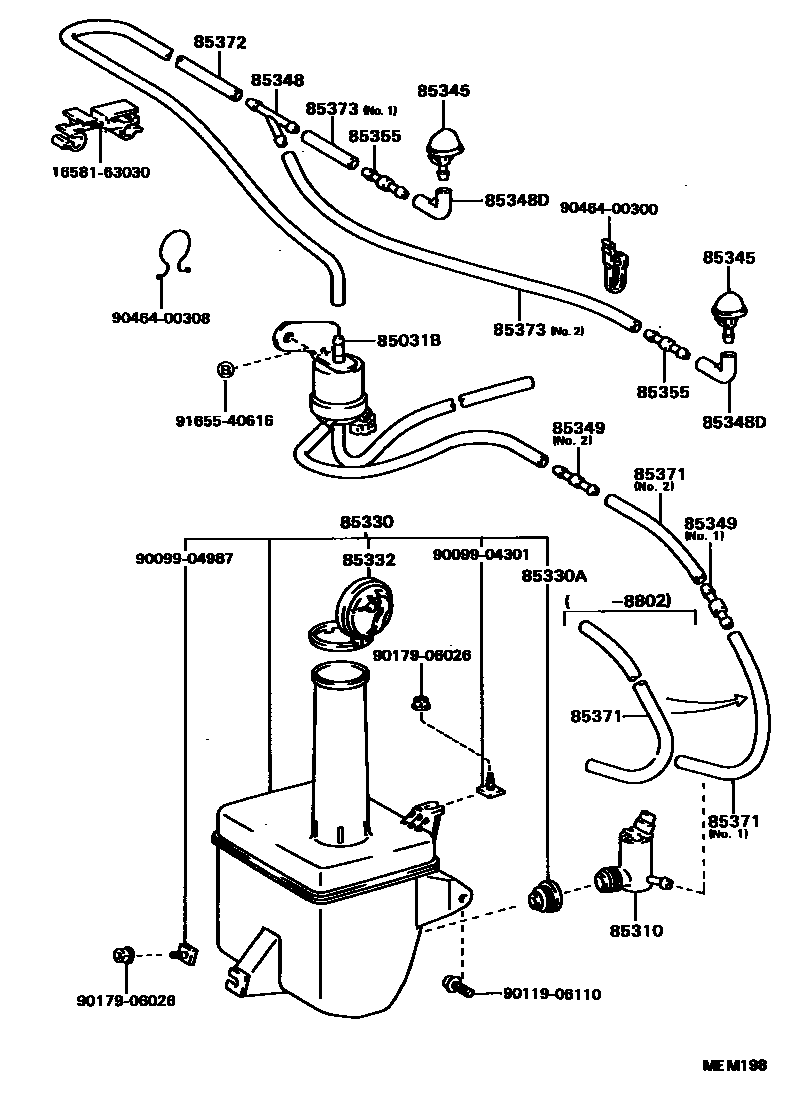

Parts diagram
85031BVALVE SUB-ASSY, WASHER
main85031-32010i198611-198904
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198611-198710
85330JAR ASSY, WINDSHIELD WASHER
main85331-32140i198710-198808
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198611-198710
85332CAP, WINDSHIELD WASHER JAR
main85332-32130i198710-198808
main85332-32161i198808-198904
85345NOZZLE, WINDSHIELD WASHER
main85035-32080i198611-198710
RH
main85035-32090i198710-198808
LH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198611-198710
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481×2i198705-198710
main85355-20070×2i198611-198705
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-32150i198808-198904
NO.1
main85349-89122i198808-198904
NO.2
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250×2i198611-198710
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33299i198808-198904
L=1450(*H,L=280),NO.1
main90099-33382i198611-198710
*H,L=1170
main90446-06013i198802-198808
L=1450(*H,L=125),NO.2
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299i198611-198710
L=1450(*H,L=615)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33299i198710-198808
L=1000,NO.1,NO.2
1658163030CLAMP, HOSE(FOR WATER HOSE)
main16581-63030
9009904301
main90099-04301
9009904987
main90099-04987
9011906110
main90119-06110
9017906026
main90179-06026
9046400300
main90464-00300
9046400308
main90464-00308
9165540616
main91655-40616

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: VALVE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
