Toyota CAMRY — V-BELT

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91214i1AZFE,2AZFE..ACV3#..PHL,VN200203-200402

(L)

sub90916-T2014

main90916-02502i1AZFE,2AZFE..ACV3#..PHL,VN200203-200402

(J)

sub90916-02598

main90916-02598i1AZFE,2AZFE..ACV3#..MA,TAIW,TH,VN200404-200611

main90916-02598i1AZFE,2AZFE..ACV3#..4FC;2AZFE..ACV30..(IDN,VN)..5F200403-200407

(J),(L)

main90916-02598i2AZFE..ACV30..PHL200407-200608

(J)

44310ABELT, V(FOR VANE PUMP)

main90080-91228iMCV30..(IDN,TAIW,VN)..4FC200203-200407

L=880

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91147iMCV30..(IDN,TAIW,VN)..4FC200203-200407

L=1040,DAYCO

main90080-91147iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200404

L=1040,TMMNA

main99366-31040iMCV30..(IDN,TAIW,VN)..4FC200203-200407

L=1040

main99366-C1040iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200404

L=1040,BANDO

sub99366-K1040

main99366-D1040iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200404

L=1040,MITSUBOSHI

sub90080-91147

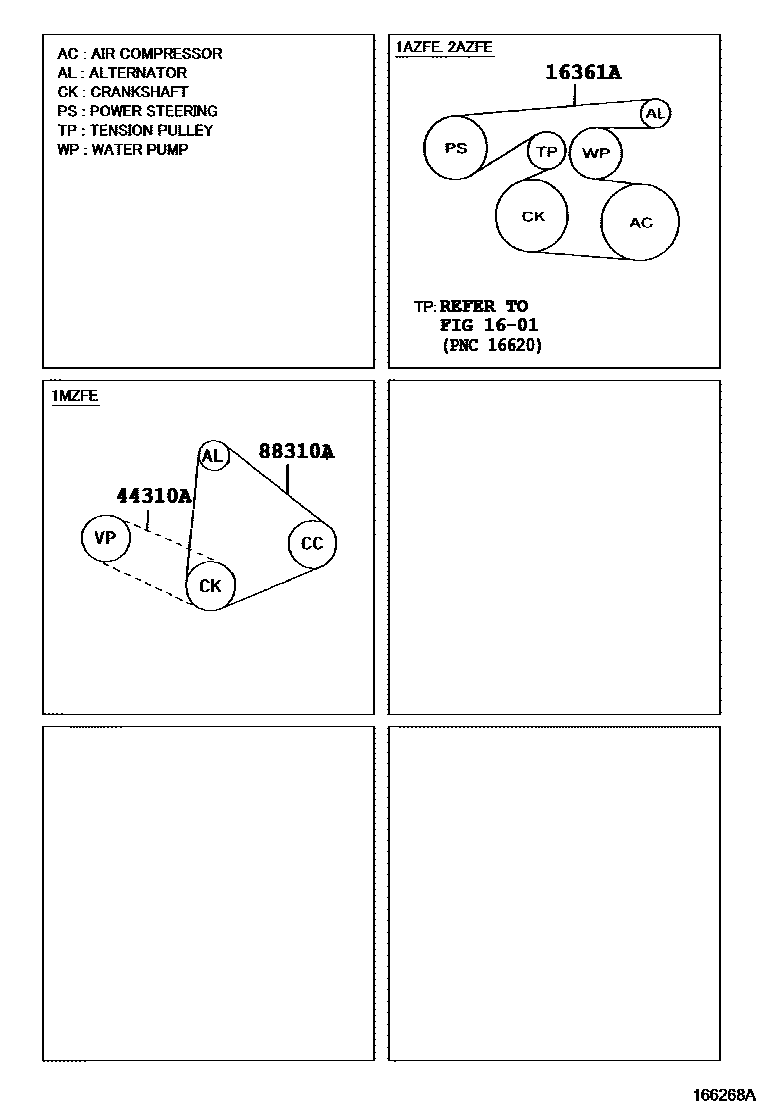

4 parts on this diagram · 1 diagram in section
