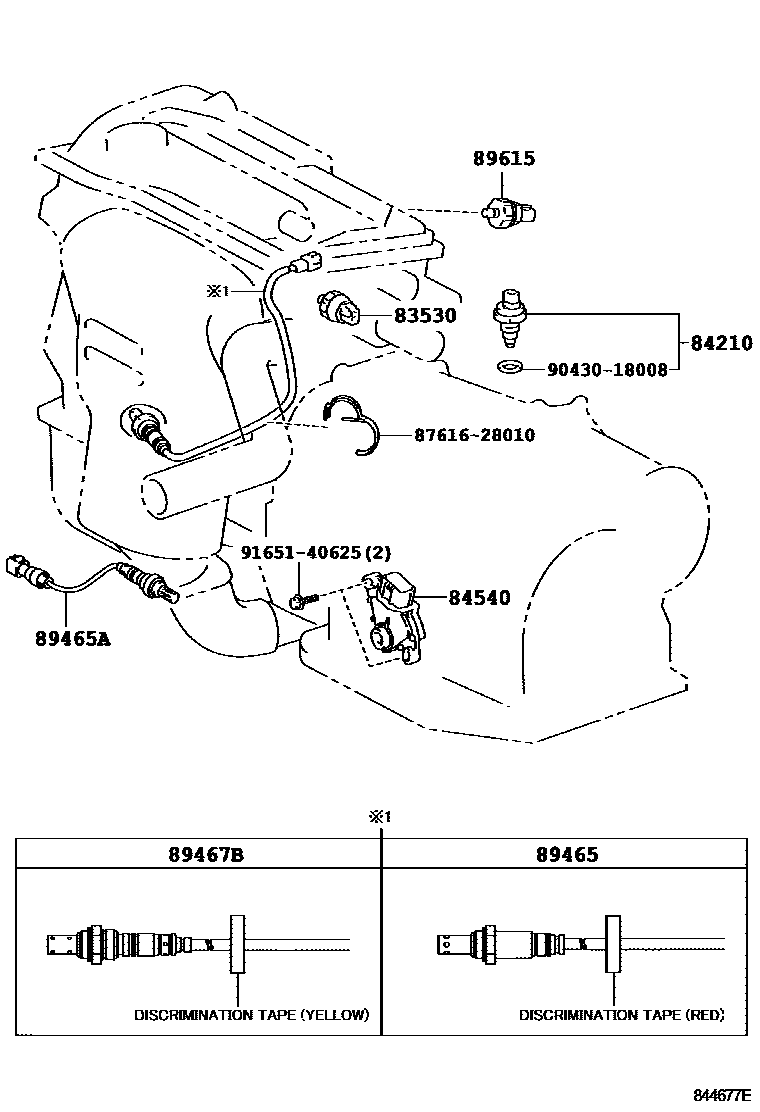

Toyota CAMRY — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1IGNITION & COMBINATION SWITCH0010 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

DENSO

main83530-60020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACV30..(IDN,VN)..5F200205-200407

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-32110iACV31,MCV30..TAIW200203-200404

main84540-48010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)200404-200611

89465SENSOR, OXYGEN

main89465-06160iACV31..TAIW200503-200611

(L)

main89465-06170iMCV30..PHL,TH,VN200412-200611

(L)

main89465-33240iACV3#..IDN,MA,PHL,TAIW,VN200203-200407

main89465-33250iMCV30..PHL,TH;MCV30..VN..5FC200404-200412

89465ASENSOR, OXYGEN NO.2

main89465-06180iMCV30..PHL,TH,VN200412-200611

(L)

main89465-33220iACV3#..TH200203-200405

main89465-33260iMCV30..PHL,TH;MCV30..VN..5FC200404-200412

89467BSENSOR, AIR FUEL RATIO

main89467-33040iACV3#..TH200203-200405

main89467-33050iMCV30..TH200405

FRONT

main89467-33060iMCV30..(IDN,TAIW)..4FC200203-200407

REAR

main89467-33120iMCV30..30V..TAIW200503

FRONT

89615SENSOR, KNOCK CONTROL

main89615-12090×2iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200404-200611

main89615-32030iACV30200405-200611

W/O(PAINTED=ORANGE)

main89615-44010iACV30..4FC;ACV30..(IDN,VN)..5F200203-200407

W(PAINTED=ORANGE)

8761628010CLAMP, COOLING UNIT CASE

main87616-28010

9043018008

main90430-18008

9165140625

main91651-40625

10 parts on this diagram · 10 diagrams in section
