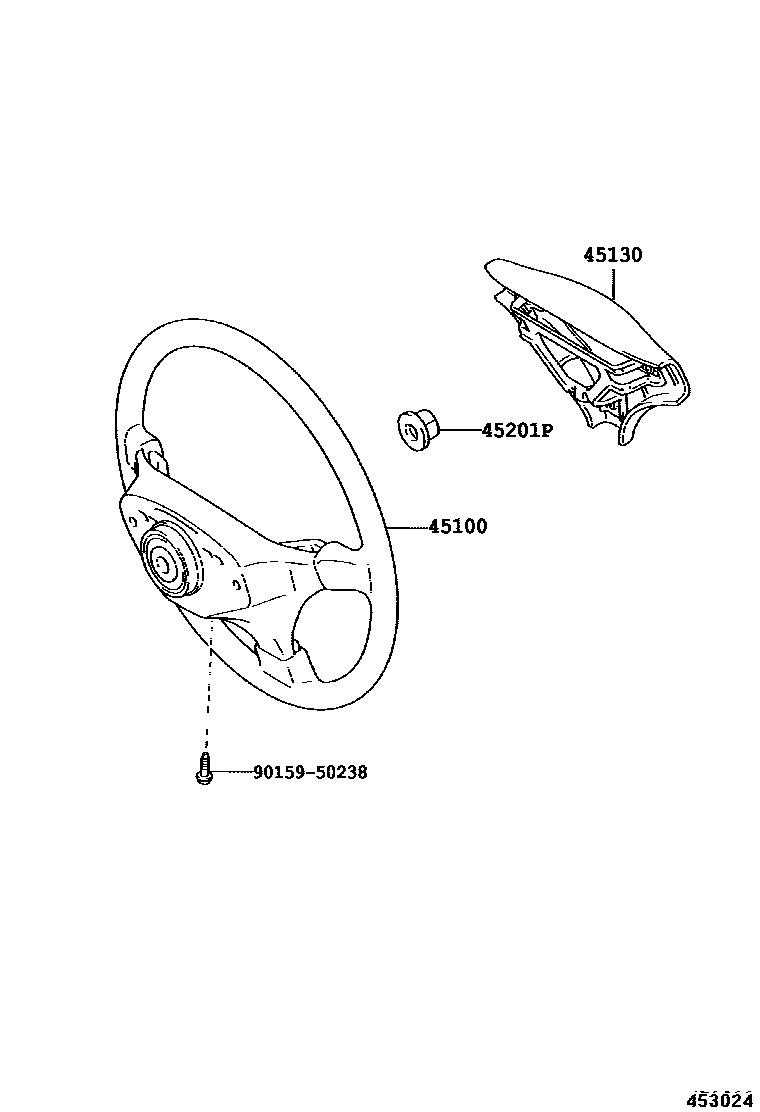

Toyota CAMRY — STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM4#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM4#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,W(CRUISE CONTROL & STEERING AUDIO SWITCH),SANDAL WOOD,TRIM0#
sub45100-06871
4-SPOKE,URETHANE,W(CRUISE CONTROL & STEERING AUDIO SWITCH),SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,W(STEERING AUDIO SWITCH),SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE
4-SPOKE,WOOD&LEATHER
4-SPOKE,URETHANE
4-SPOKE,URETHANE,W(BLIND CORNER MONITOR)
4-SPOKE,URETHANE
4-SPOKE,LEATHER
4-SPOKE,URETHANE
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM4#
45130BUTTON ASSY, HORN
DK.CHARCOAL,TRIM1#
main45130-02150-E0iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC;ACV31,MCV30..(20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407
SANDAL WOOD,TRIM4#
W(STEERING AUDIO SWITCH),BLACK,TRIM2#
sub45130-06180
W(STEERING AUDIO SWITCH),SANDAL WOOD,TRIM0#
sub45130-06180
SANDAL WOOD,TRIM0#
sub45130-06210
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
45201PNUT, STEERING WHEEL SET
main90179-12071iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407
9015950238
main90159-50238
4 parts on this diagram · 3 diagrams in section
