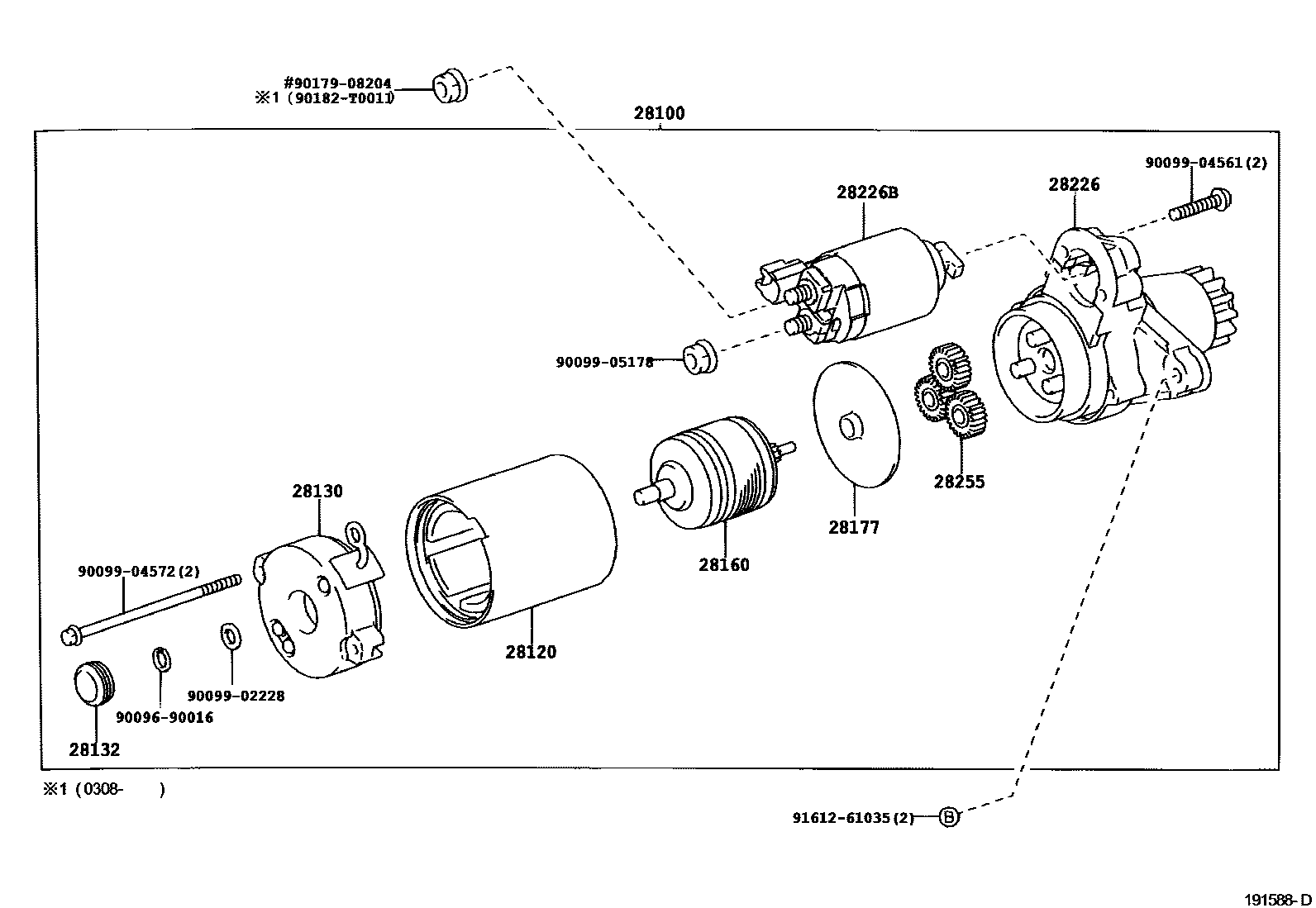

Toyota CAMRY — STARTER

28100STARTER ASSY

main28100-0H041i1AZFE,2AZFE..ACV3#..MA200407

12V 1.6KW

main28100-28041i1AZFE..ACV31..TAIW,TH;1MZFE..MCV30..VN..5FC;2AZFE..ACV30..PHL,TH,VN;1MZFE..MCV30..PHL,TAIW,TH200203-200407

12V 1.6KW

sub28100-28042

28120YOKE ASSY, STARTER

main28120-28040i1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200203-200407

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-28040i1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200203-200407

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-28040i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200407

28160ARMATURE ASSY, STARTER

main28160-28040i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200407

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1AZFE,2AZFE,1MZFE..ACV3#,MCV30..IDN,TH200203-200407

28226STARTER KIT, BATTERY TERMINAL

main28226-28041i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200407

28226BSTARTER KIT, REPAIR SERVICE

main28226-28050i1AZFE,2AZFE,1MZFE..ACV3#,MCV30200203-200205

sub28226-28051

main28226-28051i1AZFE,1MZFE..ACV31,MCV30..TAIW200205-200407

28255GEAR, PLANET

main28255-28040i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200407

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

90182T0011

main90182-T0011

9161261035

main91612-61035

17 parts on this diagram · 1 diagram in section
