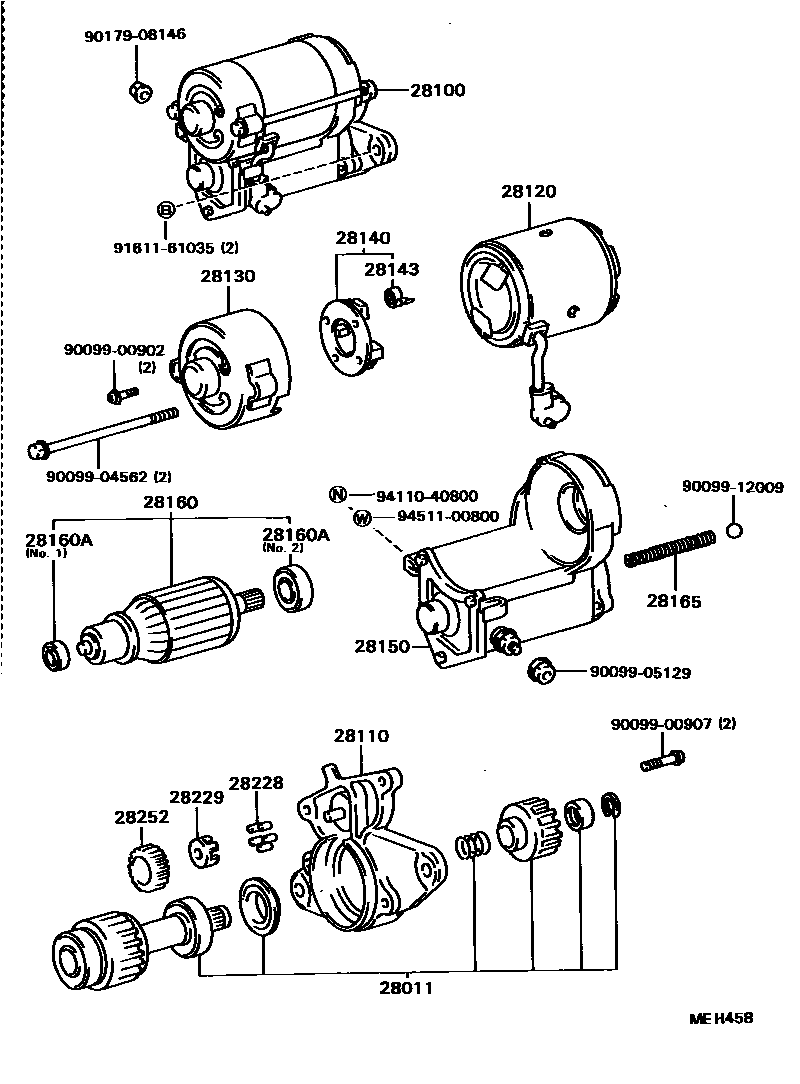

Toyota CAMRY — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28252GEAR, STARTER IDLE
9009900902
main90099-00902
9009900907
main90099-00907
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9017908146
main90179-08146
9161161035
main91611-61035
9411040800
main94110-40800
9451100800
main94511-00800
23 parts on this diagram · 1 diagram in section
STARTER for Toyota CAMRY
This section contains 23 genuine Toyota parts for the STARTER system of the Toyota CAMRY. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END.
