Toyota CAMRY — SPEAKER

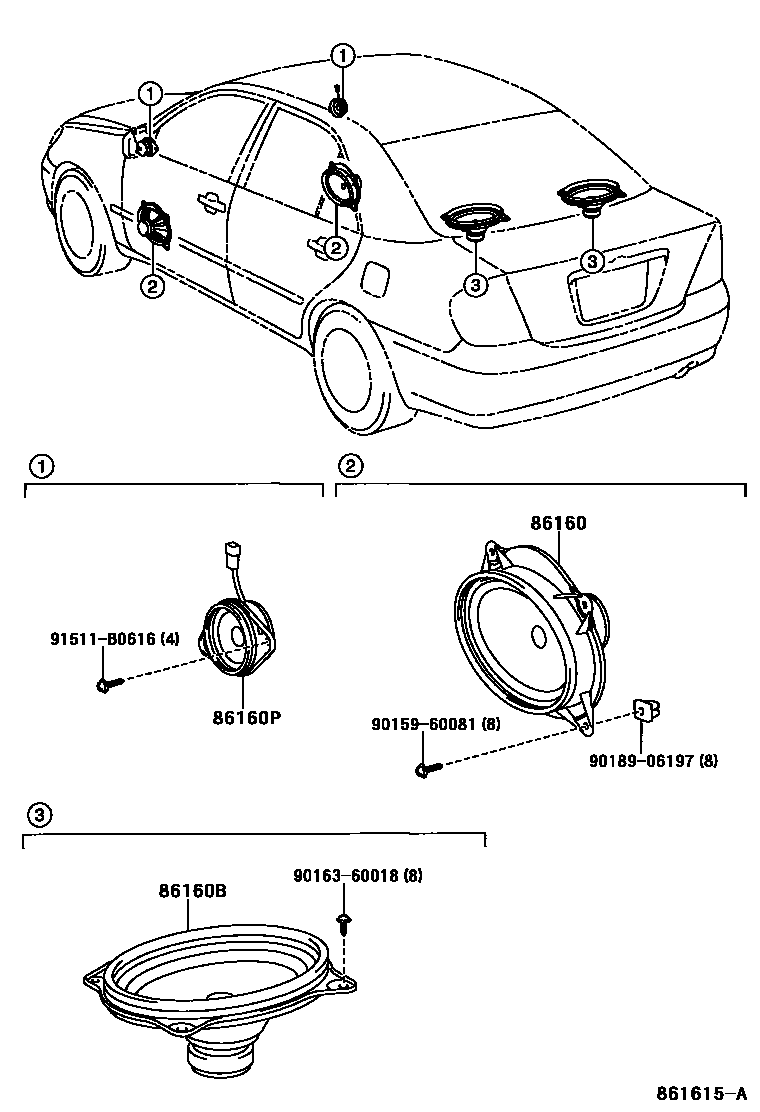

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-06170×2i200203-200404

main86160-06210×2i200203-200405

main86160-06230×2i200407

main86160-06260×2i200205-200405

main86160-06290×2i200206-200407

86160BSPEAKER ASSY, REAR

main86160-06190×2i200404

main86160-06220×2i200405

main86160-06250×2i200206-200407

main86160-06280×2i200205-200405

main86160-06310×2i200206-200407

86160PSPEAKER ASSY, FRONT NO.2

main86160-06180×2i200404

main86160-06200×2i200405-200407

main86160-06240×2i200407

main86160-06270×2i200205-200405

main86160-06300×2i200407

9015960081

main90159-60081

9016360018

main90163-60018

9018906197

main90189-06197

91511B0616

main91511-B0616

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CAMRY

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota CAMRY. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
