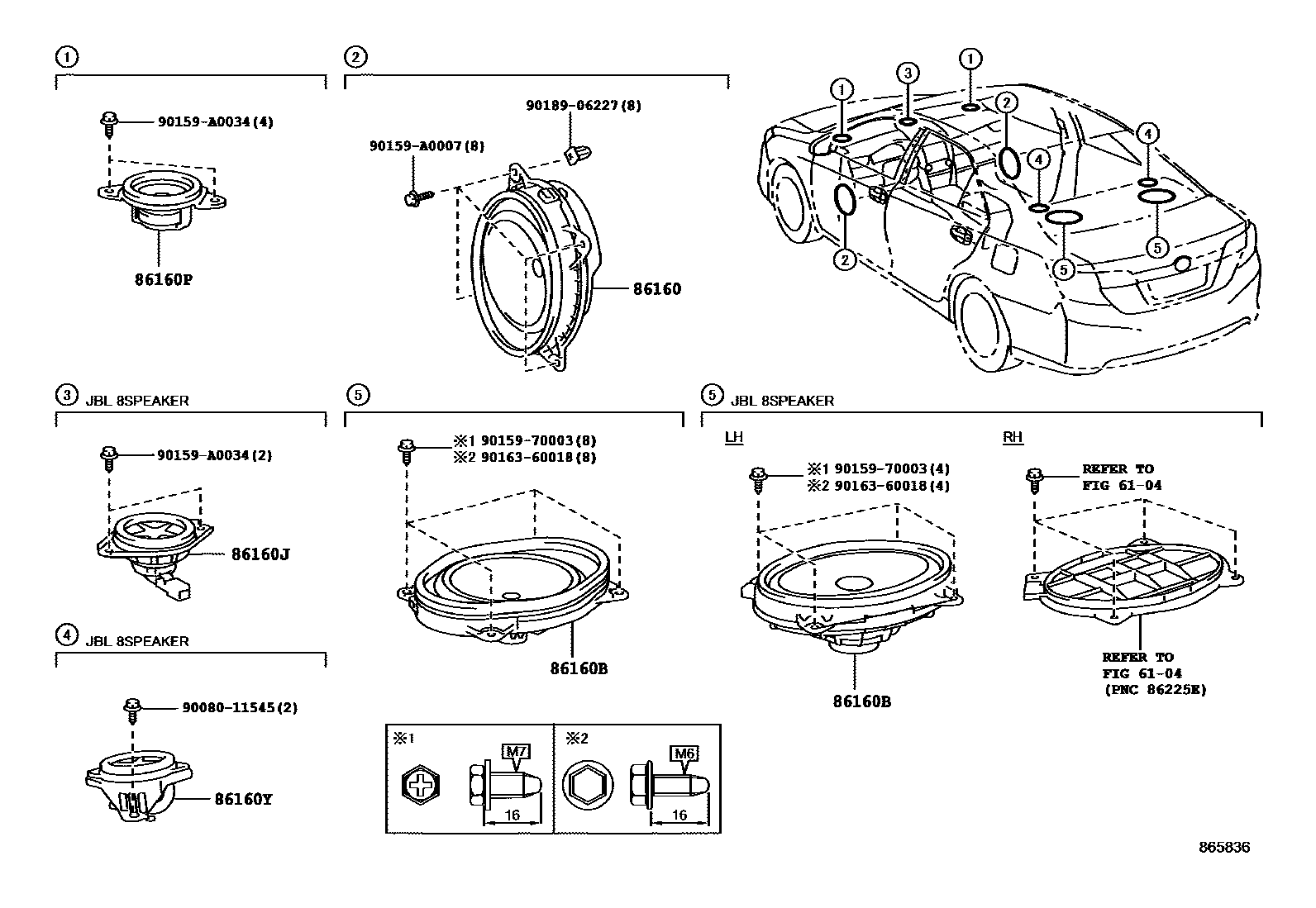

Toyota CAMRY — SPEAKER

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

86160SPEAKER ASSY, FRONT NO.1

main86160-0WU60×2supersedes 86160-06390i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

86160BSPEAKER ASSY, REAR

main86160-06450×2i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

main86160-0WU70supersedes 86160-06450i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WU80i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WU50×2supersedes 86160-06380i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

86160YSPEAKER ASSY, REAR NO.2

main86160-0WU90i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST),LH

main86160-0WW70i201504

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST),RH

9008011545

main90080-11545

9015970003

main90159-70003

90159A0007

main90159-A0007

90159A0034

main90159-A0034

9016360018

main90163-60018

9018906227

main90189-06227

12 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CAMRY

This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota CAMRY. Key components include: ROOF PANEL & BACK WINDOW GLASS, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2.
