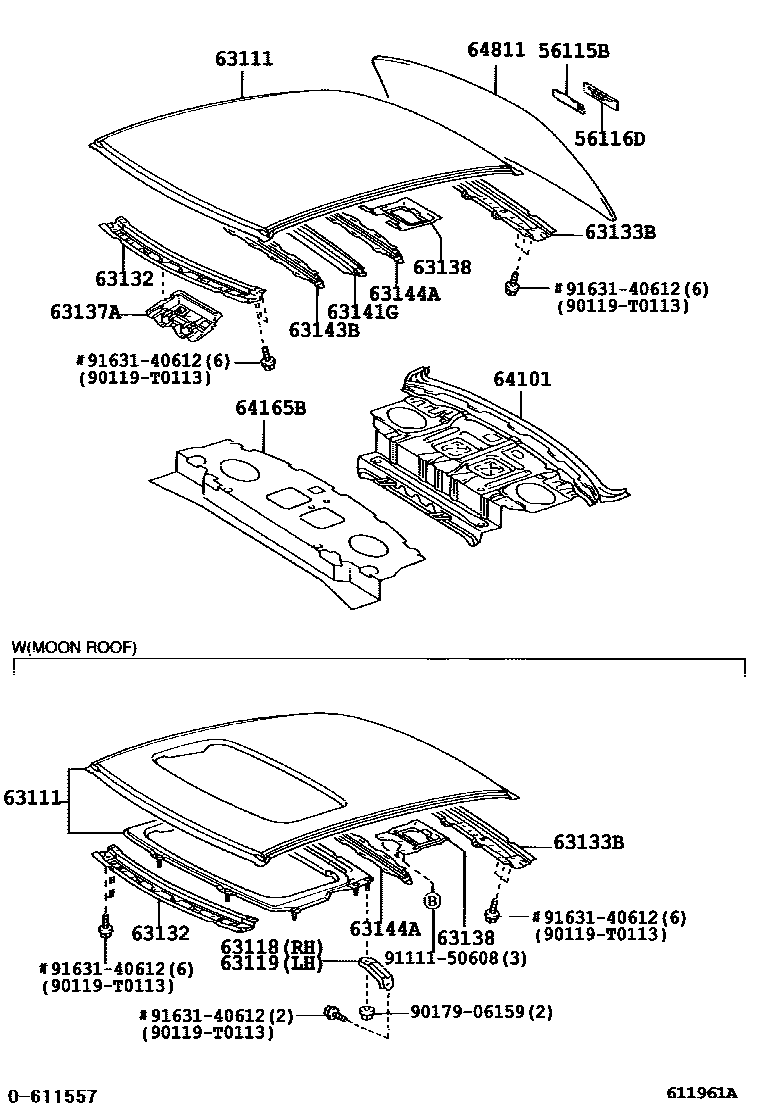

Toyota CAMRY — ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-02020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

(L)

main56115-02020iACV3#..TH200303-200405

main56115-30100iACV3#..TH200203-200407

main56115-30100iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

(J)

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-02020iACV3#..TH200303-200405

main56116-02020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

(L)

main56116-22050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

(J)

main56116-22050iACV3#..TH200203-200407

63111PANEL, ROOF

main63104-06900iACV31,MCV30..(20G,30G,30V)..TAIW200203-200504

W(MOON ROOF)

main63111-06410iMCV30..PHL,VN;ACV3#,MCV30..LHD..(20E,20G,24E,24G,24V,30G)200504

main63111-06913iACV31,MCV30..TAIW200504

W(MOON ROOF)

main63111-33190iACV31..TAIW;MCV30..(PHL,VN)..5FC;ACV30,MCV30..LHD..(24E,24G,24V,30G)200203-200504

63118SUPPORT, ROOF PANEL, RH

main63118-33010iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

63119SUPPORT, ROOF PANEL, LH

main63118-33010iACV31,MCV30..TAIW200203-200404

63132PANEL, WINDSHIELD HEADER, INNER

main63132-06020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

63133BFRAME, BACK WINDOW

main63133-06020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

63137ABRACKET, DOME LAMP, NO.1

main63137-33070iMCV30..PHL,TH;MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..(24E,24G,24Q,24V,30G)..(MA,PHL,TAIW,TH,VN)200203-200407

63138BRACKET, DOME LAMP, NO.2

main63138-06010iACV30..(IDN,VN)..5F;ACV31,MCV30..(20G,30V)..(IDN,PHL,VN);ACV3#,MCV30..(20E,20J,24G,24Q,24V,30G)..4FC200203-200407

main63138-06020iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(MOON ROOF)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-33050iMCV30..PHL,TH;MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..(24E,24G,24Q,24V,30G)..(MA,PHL,TAIW,TH,VN)200203-200407

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33050iACV30..(IDN,VN)..5F;ACV31,MCV30..(20G,30V)..(IDN,PHL,VN);ACV3#,MCV30..(20E,20J,24G,24Q,24V,30G)..4FC200203-200407

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06050iMCV30..PHL,TH;MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..(24E,24G,24Q,24V,30G)..(MA,PHL,TAIW,TH,VN)200203-200407

main63144-33080iACV31,MCV30..TAIW200203-200404

W(MOON ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-06070iACV3#..4FC;MCV30..IDN;ACV30..(IDN,VN)..5F200203-200611

main64101-06080iACV31,MCV30..(20G,30G)..TAIW200203-200605

W(AIR PURIFIER)

main64101-06090iACV30,MCV30..(24V,30V)..(PHL,VN)200207-200611

main64101-06100iMCV30..30V..TAIW200203-200605

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06020iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

main64165-06030iACV3#,MCV30..TH..4FC200203-200407

W(SUN SHADE)

main64165-06030iACV30,MCV30..MA,PHL,VN200407

main64165-06050iACV31..MA,PHL;ACV30,MCV30..IDN,PHL200205-200407

main64165-06060iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(AIR PURIFIER)

64811GLASS, BACK WINDOW

main64811-06140iACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

*HSEA,T=3.5,GREEN

sub64811-06141

main64811-06150iACV3#..TH200203-200405

*TT,T=3.5,GREEN

sub64811-06151

90119T0113

main90119-T0113

9017906159

main90179-06159

9111150608

main91111-50608

9163140612

main91631-40612

19 parts on this diagram · 2 diagrams in section
