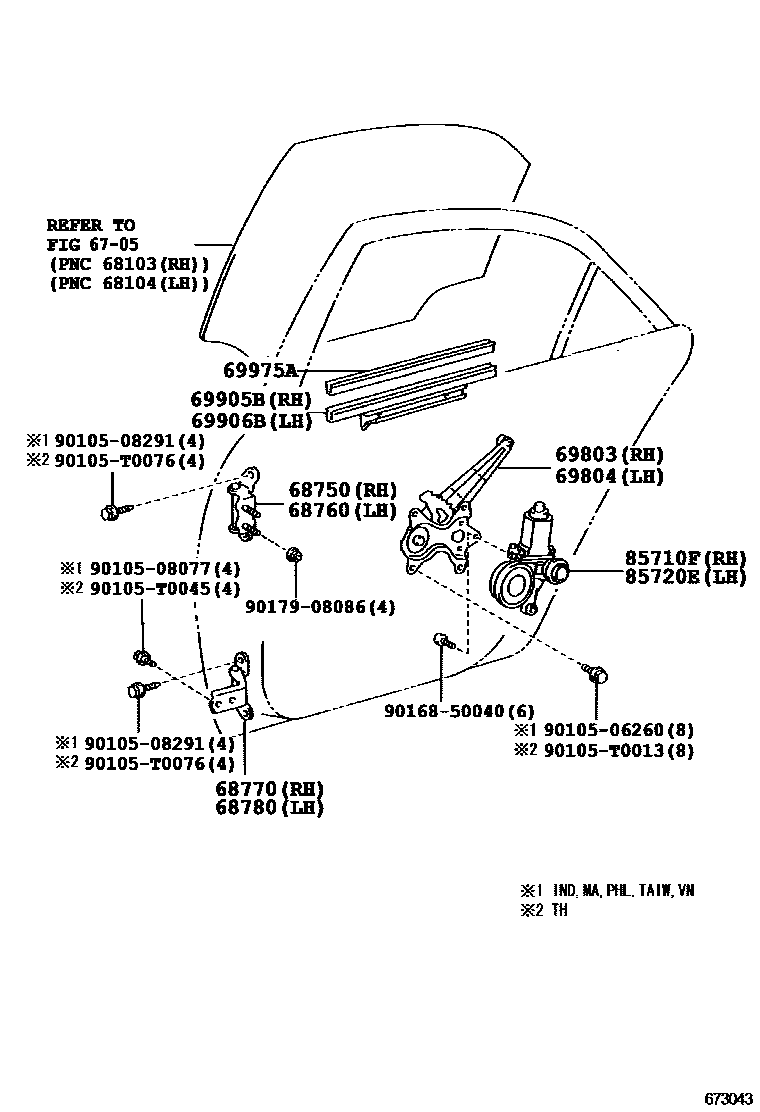

Toyota CAMRY — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-33010iACV3#,MCV30..MA,PHL,VN200203-200611

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-33010iACV31,MCV30..TAIW200203-200611

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33030iACV31,MCV30..TAIW200203-200611

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33030iACV3#,MCV30..IDN,TH200203-200611

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-06030iACV31,MCV30..TAIW200203-200404

main69803-06040iACV3#,MCV30..TH200305-200405

main69803-33030iACV30..24Q200203-200406

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-06030iACV31,MCV30..TAIW200203-200404

main69804-06040iACV3#,MCV30..TH200305-200405

main69804-33030iACV3#,MCV30..MA,PHL,VN200203-200406

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-33020iACV31,MCV30..TAIW200203-200611

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-33020iACV31,MCV30..TAIW200203-200611

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010iACV31,MCV30..TAIW200203-200611

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06040iACV31..TAIW200203-200405

main85720-12280iACV30,MCV30..(24Q,30G,30V)..(IDN,TAIW,TH)200203-200301

sub85720-33170

main85720-33120iACV3#..(20E,24G)..TH200205-200406

sub85720-33170

main85720-33170iMCV30..(IDN,TAIW)..4FC200301-200405

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-02060iACV3#..(20E,24G)..TH200203-200405

main85710-12290iACV30,MCV30..(24Q,30G,30V)..(IDN,TAIW,TH)200203-200301

sub85710-33170

main85710-33130iACV3#..(20E,24G)..TH200205-200406

sub85710-33170

main85710-33170iMCV30..PHL,TAIW,TH;ACV30..RHD..(24Q,24V)200301-200405

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

9017908086

main90179-08086

20 parts on this diagram · 1 diagram in section
