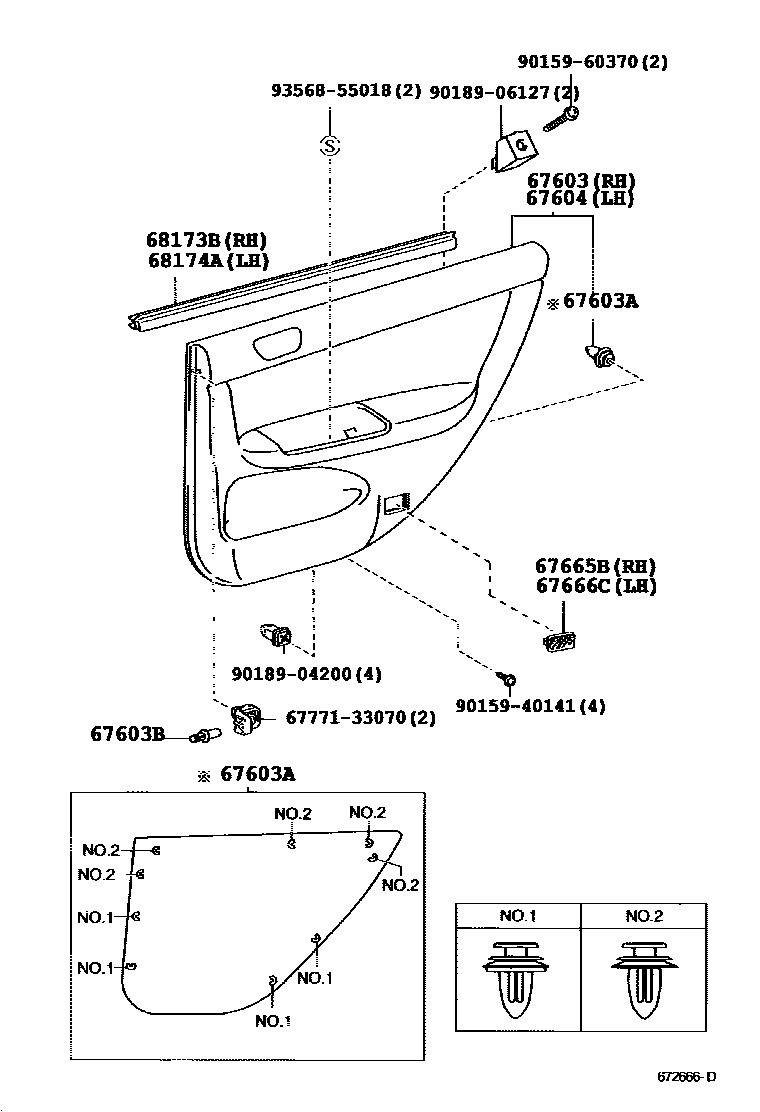

Toyota CAMRY — REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-06180-B1iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main67630-06180-E1iACV31..20J200203-200309

SANDAL WOOD,TRIM4#

main67630-06200-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main67630-06200-E1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200407

SANDAL WOOD,TRIM4#

main67630-06230-E1iACV31..TH200203-200405

SANDAL WOOD,TRIM4#

sub67630-06380

main67630-06250-E1iACV30..TH200203-200405

SANDAL WOOD,TRIM4#

main67630-06270-E1iACV3#..MA200206-200407

SANDAL WOOD,TRIM4#

main67630-06280-E1iACV30..IDN200205-200405

SANDAL WOOD,TRIM4#

main67630-06290-E1iACV3#..PHL,VN200206-200407

SANDAL WOOD,TRIM4#

main67630-06310-E0iMCV30..IDN200205-200405

SANDAL WOOD,TRIM4#

main67630-06321-E1iACV31..MA200407-200608

SANDAL WOOD,TRIM0#

main67630-06331-E1iACV30..MA200407-200608

SANDAL WOOD,TRIM0#

main67630-06340-E0iACV30..LHD..(24E,24G)200407-200611

IVORY,TRIM0#

main67630-06350-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,BLACK,TRIM2#

sub67630-06360

main67630-06350-E0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,IVORY,TRIM0#

sub67630-06360

main67630-06350-E0iACV30..24V..PHL200407-200608

IVORY,TRIM0#

sub67630-06360

main67630-06360-C0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),BLACK,TRIM2#

main67630-06360-E0iMCV30..PHL,VN200407-200611

IVORY,TRIM0#

main67630-06360-E0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

main67630-06380-E0iACV31..TH;ACV30..TH..5F200405-200608

FABRIC,IVORY,TRIM0#

main67630-06390-E0iACV3#,MCV30..(20E,24G,30V)..TH..4FC200405-200608

LEATHER,IVORY,TRIM0#

sub67630-06250

main67630-06400-E0iACV30..TH..4FC200405-200608

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-09206iACV31,MCV30..TAIW200203-200611

NO.1

main90467-10161iACV3#,MCV30..MA,PHL,VN200203-200611

NO.2

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-22iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

sub90467-07066

main90467-07066-E9iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200407

SANDAL WOOD,TRIM4#

sub90467-07066

main90467-07066-E9iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

SANDAL WOOD,TRIM0#

sub90467-07066

main90467-07066-P1iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub90467-07066

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-06190-B1iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main67640-06190-E1iACV31..20J200203-200309

SANDAL WOOD,TRIM4#

main67640-06200-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main67640-06200-E1iMCV30..VN200203-200407

SANDAL WOOD,TRIM4#

main67640-06230-E1iACV31..TH200203-200405

SANDAL WOOD,TRIM4#

sub67640-06380

main67640-06240-E1iACV30..TH200203-200405

SANDAL WOOD,TRIM4#

main67640-06270-E1iACV3#..MA200206-200407

SANDAL WOOD,TRIM4#

main67640-06280-E1iACV30..IDN200205-200405

SANDAL WOOD,TRIM4#

main67640-06290-E1iACV3#..PHL,VN200206-200407

SANDAL WOOD,TRIM4#

main67640-06310-E0iMCV30..IDN200205-200405

SANDAL WOOD,TRIM4#

main67640-06321-E1iACV31..MA200407-200608

SANDAL WOOD,TRIM0#

main67640-06331-E1iACV30..MA200407-200608

SANDAL WOOD,TRIM0#

main67640-06340-E0iACV30..LHD..(24E,24G)200407-200611

IVORY,TRIM0#

main67640-06350-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,BLACK,TRIM2#

sub67640-06360

main67640-06350-E0iACV30..24V..PHL200407-200608

IVORY,TRIM0#

sub67640-06360

main67640-06350-E0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,IVORY,TRIM0#

sub67640-06360

main67640-06360-C0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),BLACK,TRIM2#

main67640-06360-E0iMCV30..PHL,VN200407-200611

IVORY,TRIM0#

main67640-06360-E0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

main67640-06380-E0iACV31..TH;ACV30..TH..5F200405-200608

FABRIC,IVORY,TRIM0#

main67640-06390-E0iACV3#,MCV30..(20E,24G,30V)..TH..4FC200405-200608

LEATHER,IVORY,TRIM0#

sub67640-06240

main67640-06400-E0iACV30..TH..4FC200405-200608

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

67665BREFLECTOR, REAR DOOR TRIM, RH

main67665-06010iACV3#..TAIW,VN200203-200407

main67665-33010iACV31..TH200203-200407

67666CREFLECTOR, REAR DOOR TRIM, LH

main67665-06010iACV3#..TAIW,VN200203-200407

main67665-33010iACV31..TH200203-200407

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-06010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-06010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

6777133070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33070

9015940141

main90159-40141

9015960370

main90159-60370

9018904200

main90189-04200

9018906127

main90189-06127

9356855018

main93568-55018

14 parts on this diagram · 2 diagrams in section
