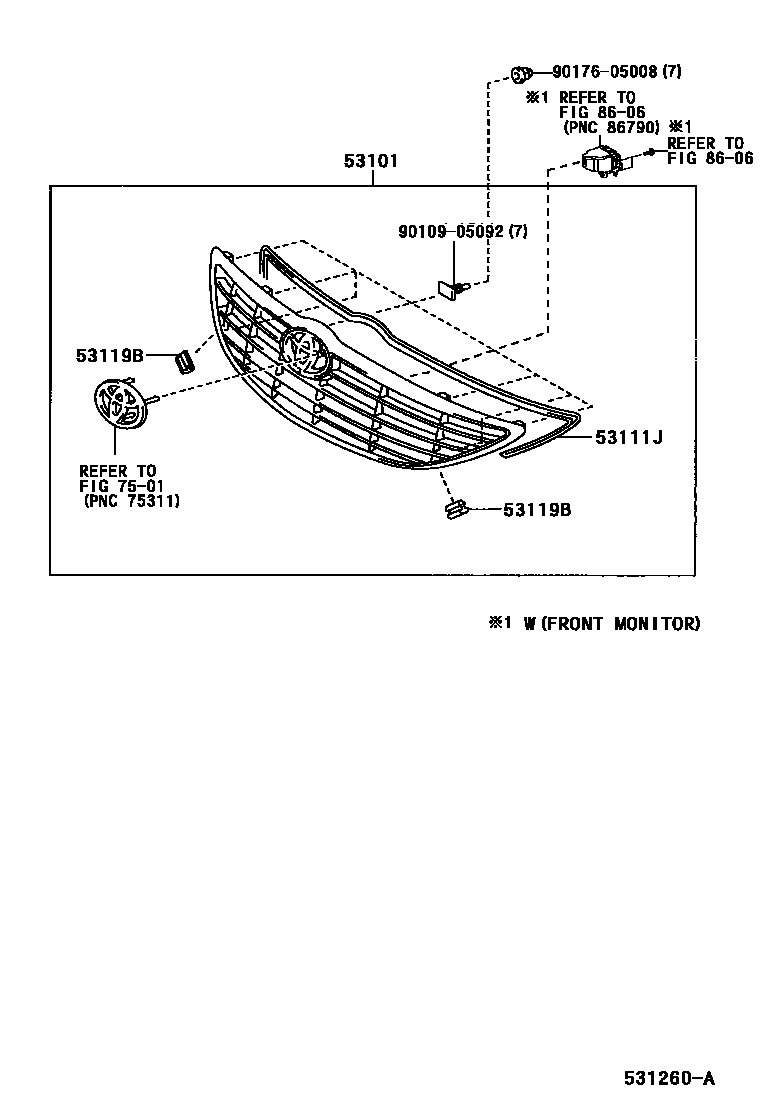

Toyota CAMRY — RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-06010iACV30..IDN;ACV31..(20E,20J)..(MA,TAIW,TH)200203-200407

PLATED

main53101-06020iACV31..PHL;ACV30..MA,PHL,TH,VN;ACV31,MCV30..(20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407

PLATED

sub53101-06010

main53101-06030iMCV30..30V..TAIW200404-200605

PLATED,W(FRONT MONITOR)

main53101-06040iMCV30..PHL,TH;MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..(24E,24G,24Q,24V,30G)..(MA,PHL,TAIW,TH,VN)200404-200611

PLATED

53111JPROTECTOR, RADIATOR GRILLE

main53119-06010iACV3#,MCV30..IDN,TH200203-200407

53119BPROTECTOR, RADIATOR GRILLE

main53119-33080iACV31,MCV30..TAIW200203-200407

7501

8606

9010905092

main90109-05092

9017605008

main90176-05008

7 parts on this diagram · 1 diagram in section
