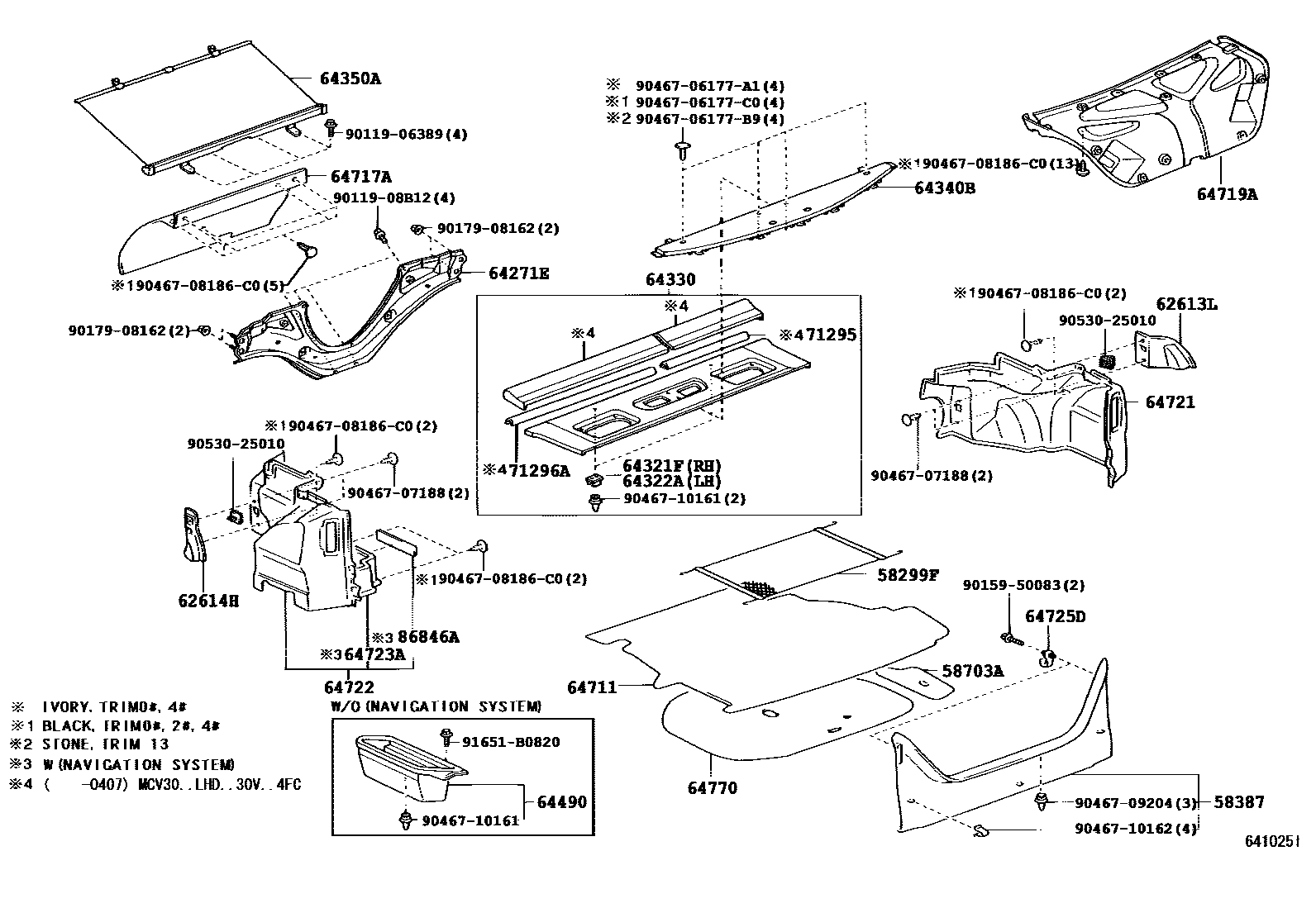

Toyota CAMRY — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1W/O(REAR WINDOW SUN SHADE)

58299FNET, BAGGAGE HOLDER

main58299-06010iACV3#..TH200203-200405

58387PLATE, REAR FLOOR FINISH

main58387-06050iACV31,MCV30..TAIW200203-200404

main58387-06070iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

62613LINSULATOR, QUARTER WHEEL HOUSE, NO.2 RH

main62613-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

62614HINSULATOR, QUARTER WHEEL HOUSE, NO.2 LH

main62614-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

64271EPANEL, ROOM PARTITION

main64206-06010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64323-06020iACV31;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV30..(24G,24V)..(IDN,PHL,TH)..4FC200203-200407

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64323-06020iACV31;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV30..(24G,24V)..(IDN,PHL,TH)..4FC200203-200407

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06150-A0iACV31..MA200407-200608

IVORY,TRIM0#

main64330-06150-A0iACV3#..(20E,24G)..TH200405-200608

W/O(REAR WINDOW SUN SHADE),IVORY,TRIM0#

main64330-06150-A0iACV30..PHL;ACV31..MA,PHL200205-200407

IVORY,TRIM4#

main64330-06160-A0iACV31..TAIW200203-200404

IVORY,TRIM4#

sub64330-06161

main64330-06160-B0iACV31..TAIW200203-200404

STONE,TRIM1#

sub64330-06161

main64330-06161-A0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main64330-06161-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main64330-06170-A0iACV3#..TH200203-200407

IVORY,TRIM4#

main64330-06170-A0iACV31,MCV30..TH;ACV30..RHD..4FC;ACV30..LHD..(24E,24G)200405-200611

IVORY,TRIM0#

main64330-06220-A0iMCV30..30V..TAIW200203-200404

IVORY,TRIM4#

sub64330-06221

main64330-06220-B0iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

sub64330-06221

main64330-06221-A0iMCV30..30V..TAIW200404-200605

IVORY,TRIM0#

main64330-06221-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

main64330-06230-A0iACV30,MCV30..(24V,30V)..(PHL,VN)200407-200611

IVORY,TRIM0#

main64330-06230-A0iMCV30..VN200207-200407

IVORY,TRIM4#

main64330-06240-A0iACV31,MCV30..(20G,30G)..TAIW200203-200404

W(AIR PURIFIER),IVORY,TRIM4#

sub64330-06241

main64330-06240-B0iACV31,MCV30..(20G,30G)..TAIW200203-200404

W(AIR PURIFIER),STONE,TRIM1#

sub64330-06241

main64330-06241-A0iACV31,MCV30..(20G,30G)..TAIW200404-200605

W(AIR PURIFIER),IVORY,TRIM0#

main64330-06241-C0iACV31,MCV30..(20G,30G)..TAIW200404-200605

W(AIR PURIFIER),BLACK,TRIM2#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-06010-A0iACV31..TAIW200203-200404

IVORY,TRIM4#

sub64340-06011

main64340-06010-B0iACV31..TAIW200203-200404

STONE,TRIM1#

sub64340-06011

main64340-06011-A0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main64340-06011-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main64340-06020-A0iACV3#..(20E,24G)..TH200203-200407

IVORY,TRIM4#

main64340-06020-A0iACV31..TH;ACV30..VN;ACV30..(24E,24G)..4FC200405-200611

IVORY,TRIM0#

main64340-06030-A0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(AIR PURIFIER),IVORY,TRIM4#

sub64340-06031

main64340-06030-B0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(AIR PURIFIER),STONE,TRIM1#

sub64340-06031

main64340-06031-A0iACV31,MCV30..(20G,30G,30V)..TAIW200404-200605

W(AIR PURIFIER),IVORY,TRIM0#

main64340-06031-C0iACV31,MCV30..(20G,30G,30V)..TAIW200404-200605

W(AIR PURIFIER),BLACK,TRIM2#

main64340-06040-A0iACV30..24Q200203-200407

IVORY,TRIM4#

main64340-06040-A0iMCV30..VN..5FC;ACV30,MCV30..(24Q,24V,30V)..(MA,PHL,TH)200405-200611

IVORY,TRIM0#

64350ASHADE ASSY, REAR WINDOW

main64350-06010iACV30..VN;ACV30..(24E,24G)..(PHL,TH)..4FC;ACV31,MCV30..(20E,20G,30G)..(TAIW,TH)200203-200407

main64350-06020iMCV30..VN..5FC;ACV30,MCV30..(24V,30V)..(MA,PHL,TH)200405

main64350-06020iMCV30..LHD..4FC;ACV3#..(20G,24Q,24V)..(MA,TAIW,TH)200203-200407

W(POWER REAR WINDOW SUN SHADE)

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-06020-C1iACV31..20J200203-200404

BLACK,TRIM1#,4#

main64490-06020-C1iACV31..20J200309-200404

BLACK,TRIM1#

main64490-06020-C1iACV3#,MCV30..IDN,TH200203-200407

BLACK,TRIM4#

main64490-06020-C1iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM0#,2#

main64490-06020-C1iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

BLACK,TRIM0#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06040-C1iACV31..TAIW200404-200605

BLACK,TRIM0#,2#

main64711-06040-C1iACV31..20J200203-200404

W/O(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

main64711-06040-C1iACV31..20J200309-200404

W/O(NAVIGATION SYSTEM),BLACK,TRIM1#

main64711-06040-C1iMCV30..30G200404-200605

W/O(NAVIGATION SYSTEM),BLACK,TRIM0#,2#

main64711-06070-C1iACV3#,MCV30..PHL,VN200203-200407

BLACK,TRIM4#

main64711-06070-C1iACV31..TH;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..PHL,TH,VN200405-200611

BLACK,TRIM0#

main64711-06080-C0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

main64711-06080-C0iACV31,MCV30..(20G,30G,30V)..TAIW200404-200605

W(NAVIGATION SYSTEM),BLACK,TRIM0#,2#

main64711-06090-C0iACV3#..MA200206-200407

BLACK,TRIM4#

main64711-06090-C0iACV3#..MA200407-200608

BLACK,TRIM0#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-06030-C1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

BLACK,TRIM1#,4#

main64717-06030-C1iACV31..20J200309-200404

BLACK,TRIM1#

main64717-06030-C1iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM0#,2#

main64717-06050-C1iACV3#,MCV30..PHL,VN200203-200407

BLACK,TRIM4#

main64717-06050-C1iACV31..TH;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..PHL,TH,VN200405-200611

BLACK,TRIM0#

main64717-06060-C0iACV3#..MA200206-200407

BLACK,TRIM4#

main64717-06060-C0iACV3#..MA200407-200608

BLACK,TRIM0#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06040-C1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

BLACK,TRIM1#,4#

main64719-06040-C1iACV31..20J200309-200404

BLACK,TRIM1#

main64719-06040-C1iACV31,MCV30..TAIW200404-200605

BLACK,TRIM0#,2#

main64719-06060-C1iACV3#,MCV30..PHL,VN200203-200407

BLACK,TRIM4#

main64719-06060-C1iACV31..TH;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..PHL,TH,VN200405-200611

BLACK,TRIM0#

main64719-06070-C0iACV3#..MA200206-200407

BLACK,TRIM4#

main64719-06070-C0iACV3#..MA200407-200608

BLACK,TRIM0#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06040-C1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

BLACK,TRIM1#,4#

main64721-06040-C1iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM0#,2#

main64721-06040-C1iACV31..20J200309-200404

BLACK,TRIM1#

main64721-06060-C1iACV3#,MCV30..IDN,TH200203-200405

BLACK,TRIM4#

main64721-06060-C1iACV3#,MCV30..TH200405-200608

BLACK,TRIM0#

main64721-06070-C0iACV3#..MA200206-200407

BLACK,TRIM4#

main64721-06070-C0iACV3#..MA200407-200608

BLACK,TRIM0#

main64721-06080-C0iACV3#,MCV30..PHL,VN200206-200407

BLACK,TRIM4#

main64721-06080-C0iACV30,MCV30..PHL,VN200407-200611

BLACK,TRIM0#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06040-C1iMCV30..30G200404-200605

W/O(NAVIGATION SYSTEM),BLACK,TRIM0#,2#

main64722-06040-C1iACV31..20J200203-200404

W/O(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

main64722-06040-C1iACV31..20J200309-200404

W/O(NAVIGATION SYSTEM),BLACK,TRIM1#

main64722-06040-C1iMCV30..30G200404-200605

BLACK,TRIM0#,2#

main64722-06070-C1iACV3#,MCV30..IDN,TH200203-200405

BLACK,TRIM4#

main64722-06070-C1iACV3#,MCV30..TH200405-200608

BLACK,TRIM0#

main64722-06080-C0iACV31,MCV30..(20G,30G,30V)..TAIW200404-200605

W(NAVIGATION SYSTEM),BLACK,TRIM0#,2#

main64722-06080-C0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

main64722-06090-C0iACV3#..MA200206-200407

BLACK,TRIM4#

main64722-06090-C0iACV3#..MA200407-200608

BLACK,TRIM0#

main64722-06100-C0iACV30,MCV30..PHL,VN200407-200611

BLACK,TRIM0#

main64722-06100-C0iACV3#,MCV30..PHL,VN200206-200407

BLACK,TRIM4#

64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER

main64723-06030-C0iACV31,MCV30..(20G,30G)..TAIW200404

BLACK,TRIM0#,2#

main64723-06030-C0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

BLACK,TRIM1#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

64770COVER ASSY, SPARE WHEEL

main64770-06090iACV31,MCV30..TAIW200203-200409

main64770-06091iACV31,MCV30..TAIW200409

main64770-06100iACV31..MA200407-200411

main64770-06100iACV30..IDN..5F;ACV31..MA,PHL,TH;ACV30..(24G,24V)..(IDN,PHL,TH)..4FC200203-200407

SPARE TIRE = 205/65R15

main64770-06110iACV30..MA200407-200411

main64770-06110iACV3#,MCV30..TH200203-200407

SPARE TIRE = 215/60R16

main64770-06140iACV31..MA200411

main64770-06150iACV30..MA200411

main64770-33060iACV30,MCV30..VN200207-200407

71295PLATE, REAR SEATBACK, UPPER RH

main71295-06040iMCV30..LHD..30V..4FC200203-200407

71296APLATE, REAR SEATBACK, UPPER LH

main71296-06040iMCV30..LHD..30V..4FC200203-200407

86846APLATE, NAVIGATION COMPUTER

main86846-06010-C0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

BLACK,TRIM1#,4#

main86846-06010-C0iACV31,MCV30..(20G,30G)..TAIW200404

BLACK,TRIM0#,2#

9011906389

main90119-06389

9011908B12

main90119-08B12

9015950083

main90159-50083

9017908162

main90179-08162

9046706177A1

main90467-06177A1

9046706177B9

main90467-06177B9

9046706177C0

main90467-06177C0

9046707188

main90467-07188

9046708186C0

main90467-08186C0

9046709204

main90467-09204

9046710161

main90467-10161

9046710162

main90467-10162

9053025010

main90530-25010

91651B0820

main91651-B0820

37 parts on this diagram · 2 diagrams in section
