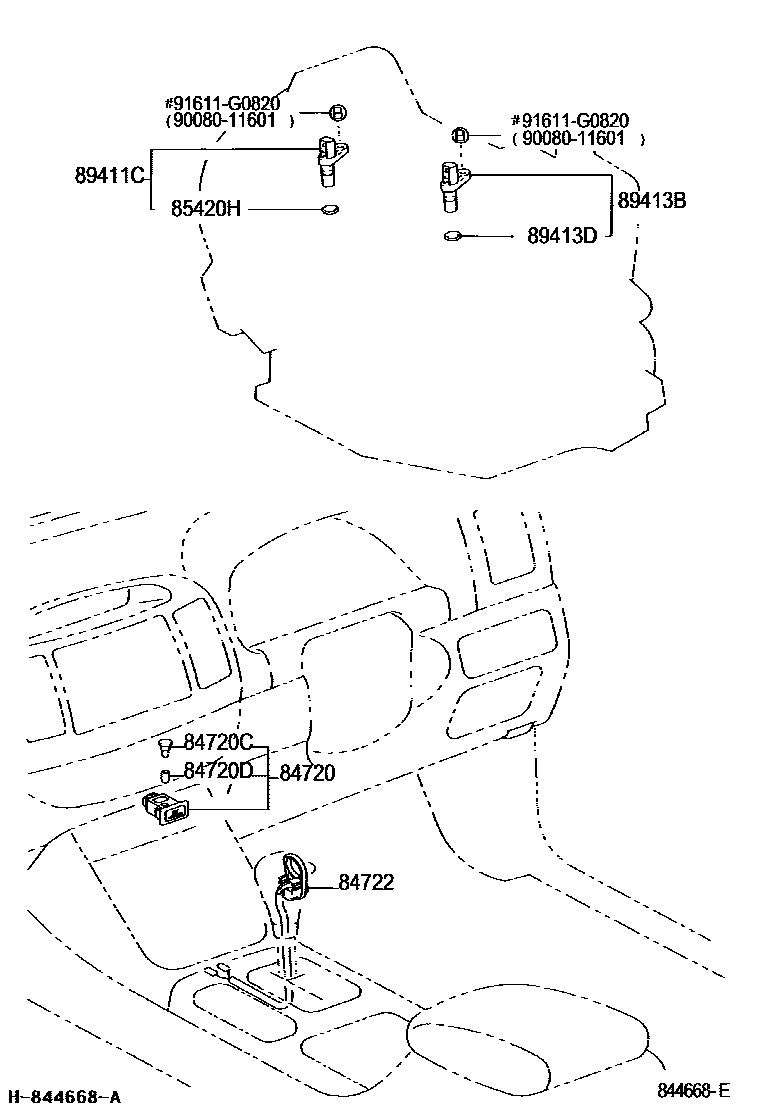

Toyota CAMRY — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0004 1 0006 1 0009 1 0011 1

84720SWITCH ASSY, PATTERN SELECT

main84720-33060iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

14V 0.84W

84720DCAP, PATTERN SELECT SWITCH

main84998-10270iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

84722SWITCH, TRANSMISSION CONTROL

main84722-33100iACV31..TAIW200404-200405

main84722-33100-B0iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main84722-33100-C0iACV31..TAIW200405-200605

BLACK,TRIM2#

main84722-33100-E0iACV3#,MCV30..LHD..(20E,20G,24V,30G,30V)..4FC200203-200407

SANDAL WOOD,TRIM4#

main84722-33100-E0iACV30..PHL;ACV31..TAIW200405-200608

SANDAL WOOD,TRIM0#

main84722-33110-E0iMCV30..IDN;ACV3#..RHD..4FC200203-200407

SANDAL WOOD,TRIM4#

sub84722-33130

main84722-33110-E0iACV3#,MCV30..RHD..4FC200405-200608

SANDAL WOOD,TRIM0#

sub84722-33130

main84722-33140-C0iMCV30..TAIW200404-200605

BLACK,TRIM2#

main84722-33140-E0iMCV30..5FC200404-200611

SANDAL WOOD,TRIM0#

85420HRING, O(FOR SPEED SENSOR)

main90301-11008iMCV30..5FC200203-200407

89411CSENSOR, SPEED

main89411-33010iACV3#,MCV30..4FC200203-200308

TOYOTA

sub89413-24010

main89413-08020iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200212-200407

AISIN,(L)

main89413-24010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

AISIN,(J)

main89413-24010iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404-200608

main89413-48010iMCV30..5FC200404-200611

89413BSENSOR, TRANSMISSION REVOLUTION

main89411-33010iACV3#,MCV30..4FC200203-200308

TOYOTA

sub89413-24010

main89413-08020iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200212-200407

AISIN,(L)

main89413-24010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

AISIN,(J)

main89413-24010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)200404-200611

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

9008011601

main90080-11601

91611G0820

main91611-G0820

10 parts on this diagram · 5 diagrams in section
