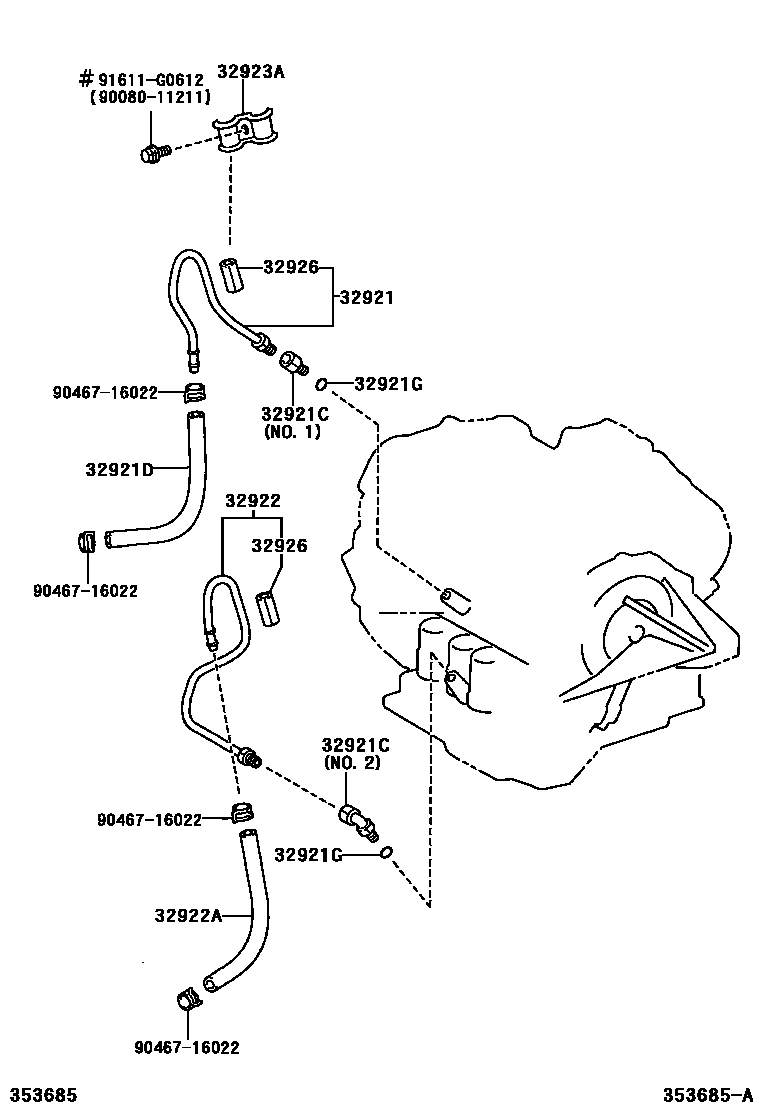

Toyota CAMRY — OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-06130iACV31..TAIW200203-200404

main32921-06140iMCV30..TAIW200203-200404

main32921-06150iMCV30..TAIW200404

main32921-33100iACV3#..MA,PHL200203-200407

main32921-33110iMCV30..IDN200205-200407

main32921-33150iMCV30..PHL,VN200407

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200611

NO.1

main90407-16010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200611

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main32941-33050iMCV30..5FC200404

main90445-17124iMCV30..IDN200203-200407

main90445-17140iACV31..TAIW200203-200404

main90445-17155iACV30..4FC;ACV31..RHD200203-200407

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200611

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-06110iACV31,MCV30..TAIW200203-200404

main32922-06130iMCV30..TAIW200404

main32922-33080iACV3#,MCV30..(IDN,TH)..4FC200203-200407

main32922-33140iMCV30..PHL,VN200407

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-33030iMCV30..5FC200404

main90445-17124iACV30,MCV30..IDN..4FC200203-200407

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iACV31,MCV30..TAIW200203-200407

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iACV31,MCV30..TAIW200203-200407

L=35,ID=10

9008011211

main90080-11211

9046716022

main90467-16022

91611G0612

main91611-G0612

11 parts on this diagram · 1 diagram in section
