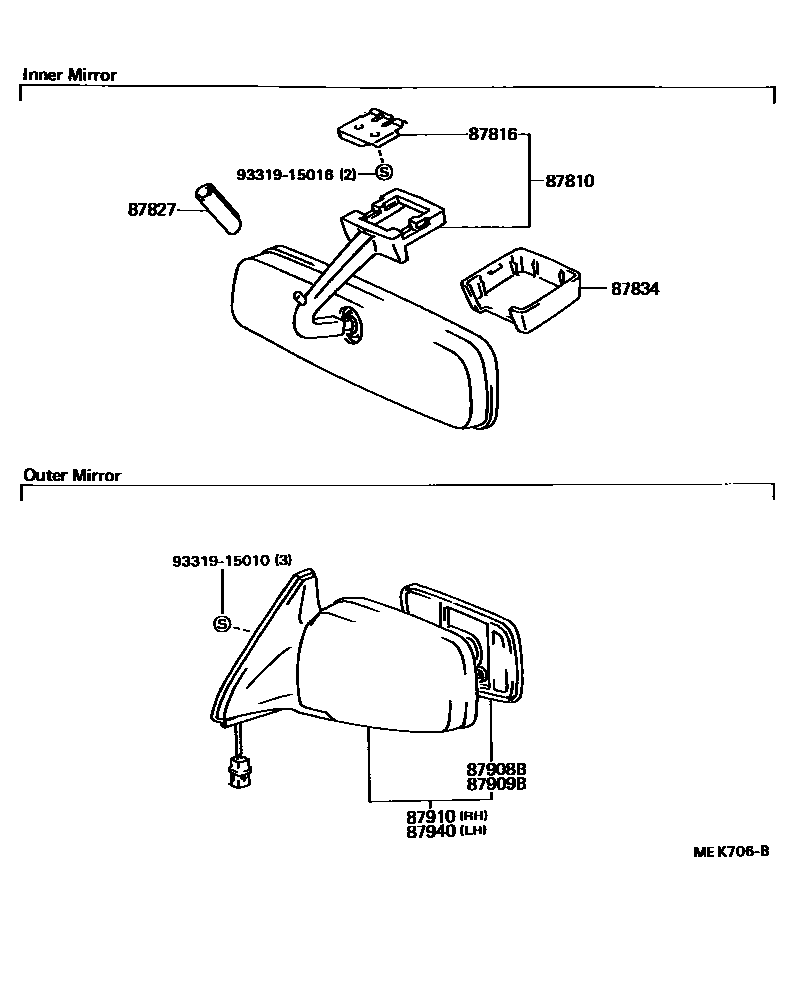

Toyota CAMRY — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22190-B0i198808-199106

MEDIUM GRAY,TRIM1#

main87810-22190-J0i198808-199106

DARK BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198808-199106

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-87003i198808-199106

L=44

main87828-87005i198808-199106

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-33i198808-199106

GRAY,TRIM1#,8#

87908BMIRROR SUB-ASSY, RH

main87931-32130i198808-198812

main87931-32131i198812-199106

87909BMIRROR SUB-ASSY, LH

main87961-32230i198808-198812

main87961-32231i198812-199106

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-32130i198808-198904

main87910-32131i198904-199106

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-32210i198808-198904

main87940-32211i198904-199106

9331915010

main93319-15010

9331915016

main93319-15016

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota CAMRY

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota CAMRY. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH.
