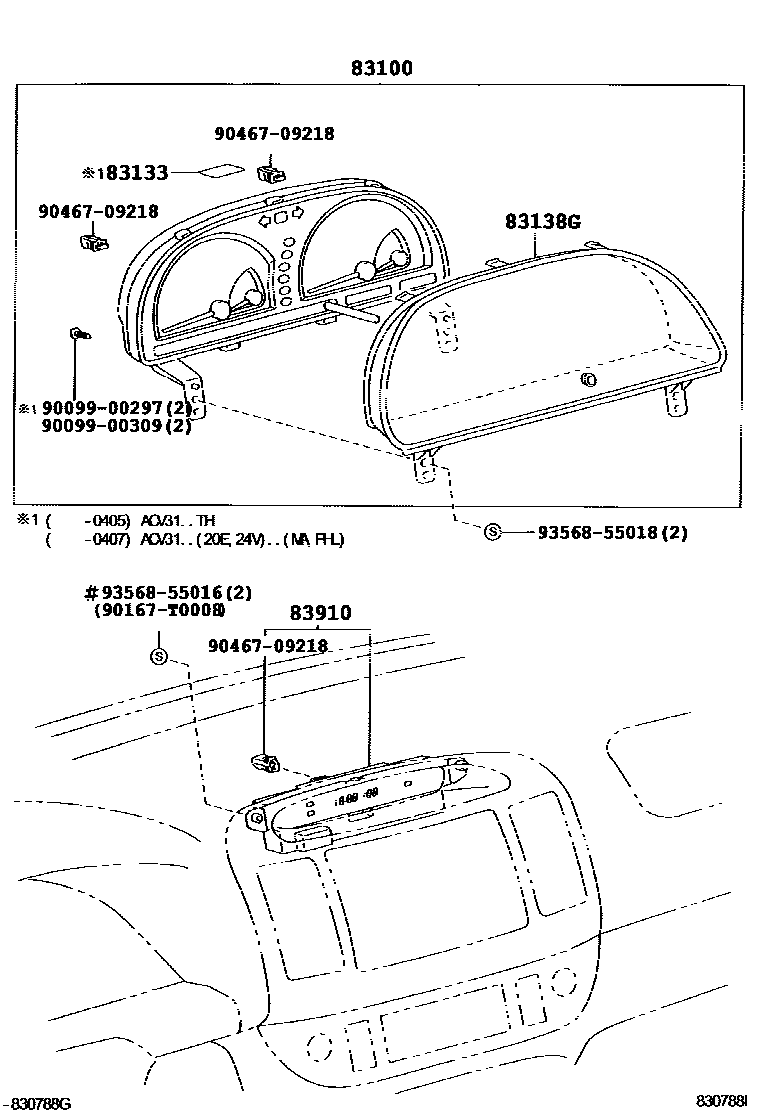

Toyota CAMRY — METER

83100METER ASSY, COMBINATION

main83800-06760iACV31..20E..(MA,PHL)200203-200504

main83800-06770iACV31..20J200203-200404

main83800-06780iACV30..IDN..5F200205-200407

main83800-06790iACV30..MA200203-200407

main83800-06800iACV3#..(20G,24Q,24V)..(PHL,TH)200207-200407

main83800-06810iACV31..(20E,20G)..TAIW200203-200404

main83800-06820iMCV30..30G200203-200404

main83800-06830iMCV30..VN200205-200407

main83800-06840iMCV30..TAIW200203-200404

TRI-COLOR OPTITRON METER

main83800-06A30iACV30..5F200405

main83800-06A40iACV30..24G..4FC200405

SINGAPOLE SPEC

main83800-06A40iACV30..24G..4FC200405

SINGAPORE SPEC

main83800-06A50iACV30..TH..4FC200405

main83800-06A60iACV31..TAIW200404

main83800-06A70iACV30..24G..4FC200405

INDONESHIA SPEC

main83800-06A70iACV30..MA;ACV30..24E200407

main83800-06A80iACV30..24V..PHL200407

main83800-06A90iMCV30..30G200404

main83800-06B00iMCV30..TH200405

main83800-06B10iMCV30..30V..TAIW200404

main83800-06B20iMCV30..PHL200407

main83800-06B30iMCV30..VN200407

main83800-06B40iMCV30..30G200404

W(AFS)

main83800-06F00iACV31..MA200407

83133PLATE, COMBINATION METER, NO.1

main83811-0W240iACV31..20E..(MA,PHL)200203-200504

83138GGLASS, COMBINATION METER

main83852-06760iACV31..20E..(MA,PHL)200203-200504

main83852-06780iACV30;ACV31..TH;MCV30..PHL,TH;MCV30..VN..5FC200405

INDONESIA OR SINGAPORE SPEC

main83852-06780iACV3#,MCV30..(20G,24G,24Q,24V,30V)..(IDN,MA,PHL,TH,VN)200203-200407

main83852-06810iACV31,MCV30..TAIW200203-200404

83910CLOCK ASSY

main83910-06030iACV30..PHL;ACV31..MA,PHL,TH200203-200407

main83910-06040iACV30,MCV30..MA,VN200206-200407

main83910-06040iACV3#..(20E,24G)..TH..4FC200405

SINGAPORE SPEC

main83910-06050iACV30,MCV30..PHL,TH200203-200405

main83910-06060iACV31,MCV30..TAIW200203-200404

9009900297

main90099-00297

9009900309

main90099-00309

90167T0008

main90167-T0008

9046709218

main90467-09218

9356855016

main93568-55016

9356855018

main93568-55018

10 parts on this diagram · 1 diagram in section
