Toyota CAMRY — METER

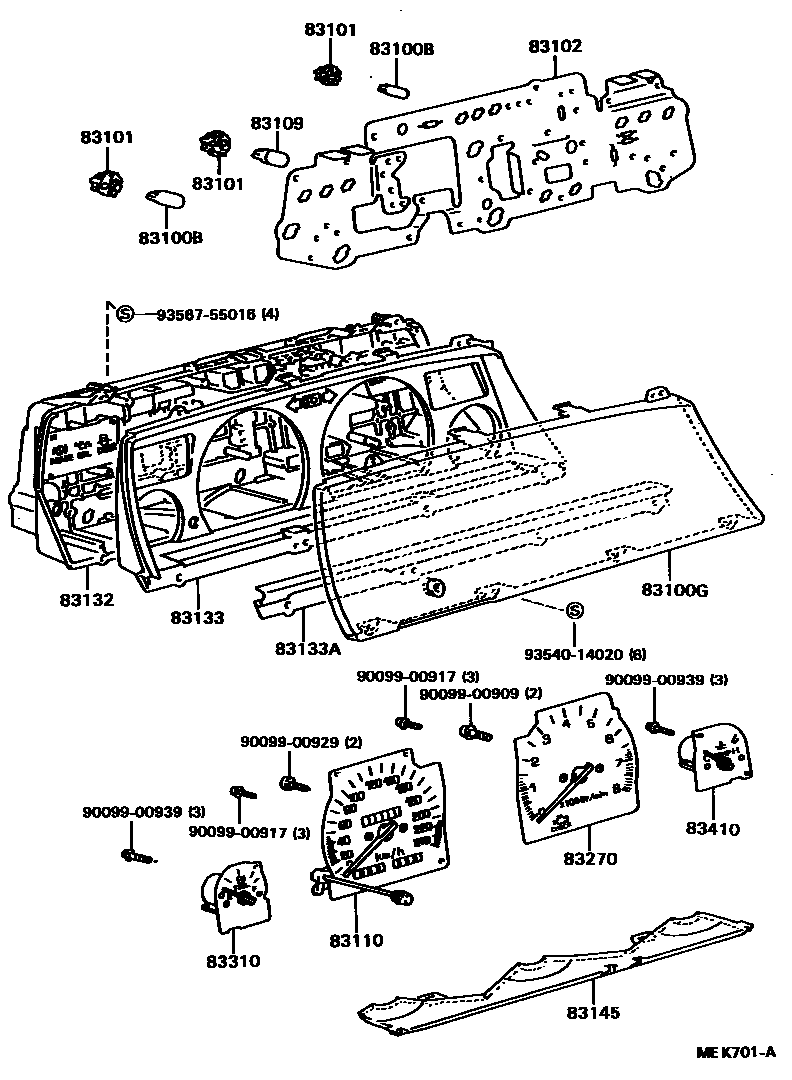

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main90981-11018×8i198802-198808
12V 1.2W W/O SOCKET; 12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER)
main99132-12034i198802-198808
12V 3.4W
83100GGLASS, COMBINATION METER
main83133-32350i198802-198808
W(DIGITAL SPEEDOMETER)
main83138-32010i198802-198808
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×5i198802-198808
12V 1.4W BULB
main83101-14040×10i198802-198808
12V 3.4W BULB
main83101-32010i198802-198808
W(DIGITAL SPEEDOMETER),12V 1.4W BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83149-32010i198802-198808
W(DIGITAL SPEEDOMETER)
main83247-32820i198802-198808
83109BULB, COMBINATION METER, NO.2
main83109-20030×3i198802-198808
12V 1.4W,BLUE CAP
main83109-24020×4i198802-198808
12V3.4W W(GREEN CAP)
83110SPEEDOMETER ASSY
main83110-32550i198802-198808
83132CASE, COMBINATION METER
main83132-32440i198802-198808
main83132-32890i198802-198808
W(DIGITAL SPEEDOMETER)
83133PLATE, COMBINATION METER, NO.1
main83133-32330i198802-198808
W(DIGITAL SPEEDOMETER)
main83133-32490i198802-198808
83133APLATE, COMBINATION METER, NO.2
main83133-32430i198802-198808
W(DIGITAL SPEEDOMETER)
main83133-32590i198802-198808
83145LENS, METER, NO.1
main83145-32330i198802-198808
W(DIGITAL SPEEDOMETER)
main83145-32350i198802-198808
83270TACHOMETER ASSY, ENGINE
main83242-32750i198802-198808
83310GAGE ASSY, FUEL RECEIVER
main83243-32410i198802-198808
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
main83244-32430i198802-198808
9009900909
main90099-00909
9009900917
main90099-00917
9009900929
main90099-00929
9009900939
main90099-00939
9354014020
main93540-14020
9356755016
main93567-55016

19 parts on this diagram · 4 diagrams in section

METER for Toyota CAMRY

This section contains 44 genuine Toyota parts for the METER system of the Toyota CAMRY. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
