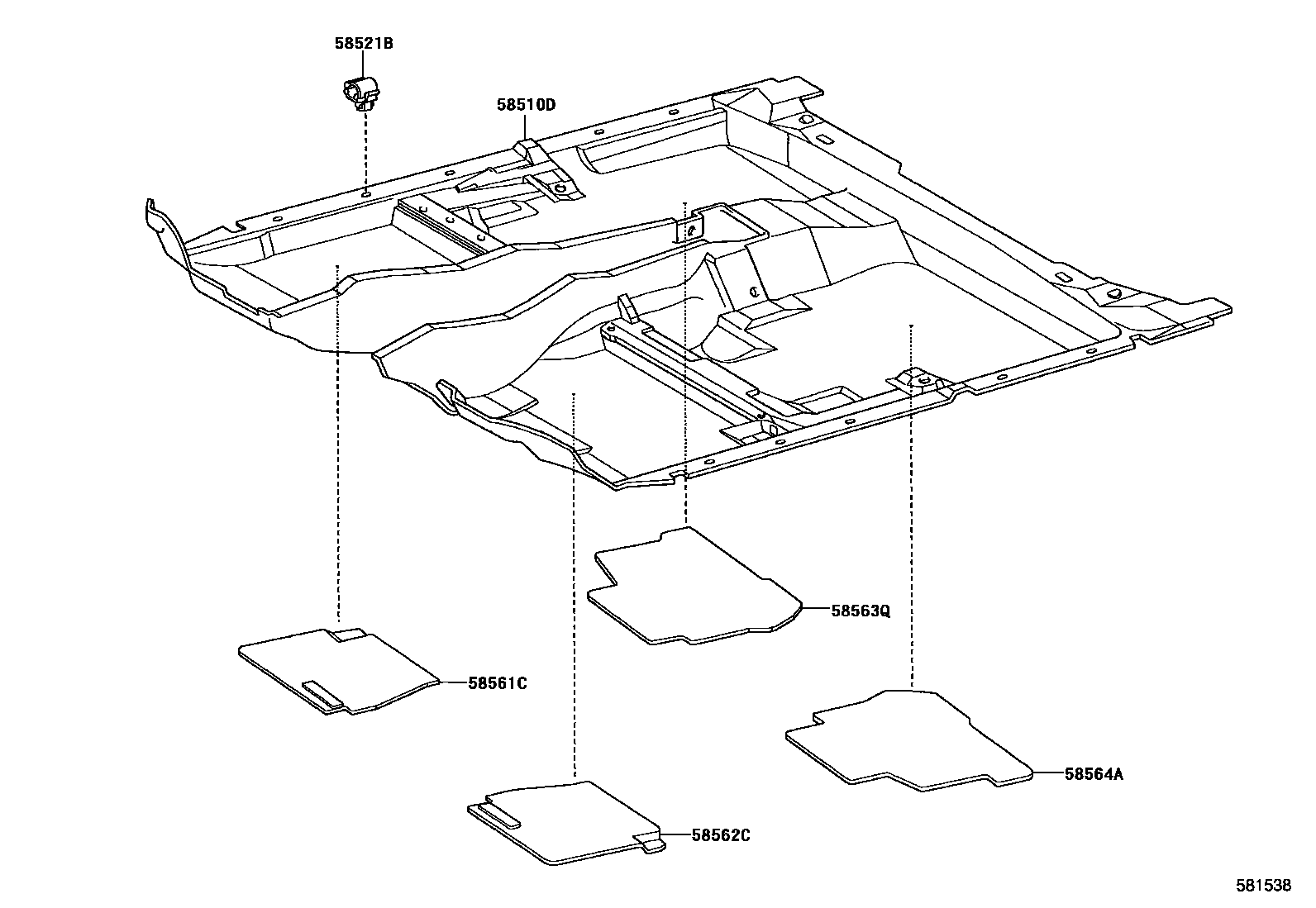

Toyota CAMRY — MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-06190-A0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main58510-06190-A0iACV31,MCV30..TAIW..4FC200203-200404

IVORY,TRIM4#

main58510-06190-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main58510-06190-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main58510-06200-A0iACV3#,MCV30..IDN,TH200203-200405

IVORY,TRIM4#

main58510-06200-A0iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

main58510-06210-A0iMCV30..30V..TAIW200404-200605

IVORY,TRIM0#

main58510-06210-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

main58510-06230-A0iACV3#..MA200407-200608

IVORY,TRIM0#

main58510-06230-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main58510-06240-A0iACV30,MCV30..PHL,VN200407-200611

IVORY,TRIM0#

main58510-06240-A0iACV3#..PHL200206-200407

IVORY,TRIM4#

main58510-06250-A0iACV30,MCV30..VN200207-200407

IVORY,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-06040iACV31,MCV30..TAIW200203-200404

main58521-33040iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

58561CSILENCER, FRONT FLOOR, NO.1

main58561-06020iACV31,MCV30..TAIW200203-200404

main58561-33020iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

58562CSILENCER, FRONT FLOOR, NO.2

main58562-06020iACV31,MCV30..TAIW200203-200404

main58562-33020iACV3#,MCV30..RHD200203-200206

sub58562-33021

main58562-33021iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200206-200407

58563QSILENCER, FRONT FLOOR, NO.3

main58563-06020iACV31,MCV30..TAIW200203-200404

main58563-33020iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

58564ASILENCER, FRONT FLOOR, NO.4

main58564-06020iACV31,MCV30..TAIW200203-200404

main58564-33020iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

6 parts on this diagram · 2 diagrams in section
