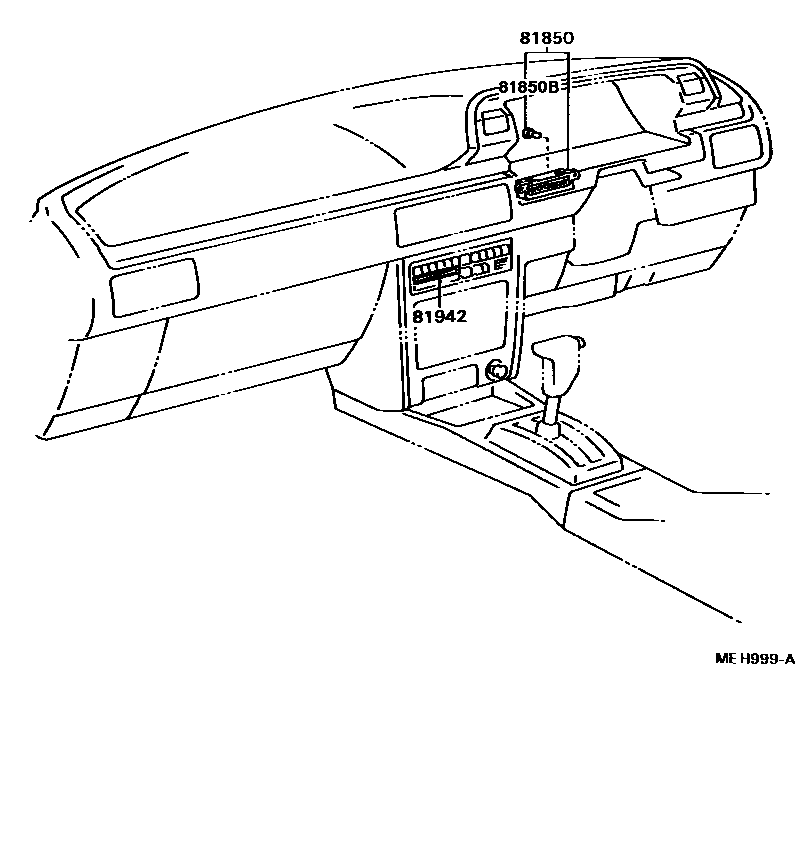

Toyota CAMRY — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-32110iVZV21198802-198808

sub81850-32111

81850BBULB, INDICATOR LAMP

main84999-20090×9iVZV21198802-198808

12V 1.2W

main84999-20100iVZV21198802-198808

12V 1.2W,W(CAP),W(GREEN CAP)

81942SHEET, HEATER CONTROL NAME

main81942-32010iVZV21198802-198808

main81942-32030iSV2#198611-198904

sub81942-32031

3 parts on this diagram · 1 diagram in section
