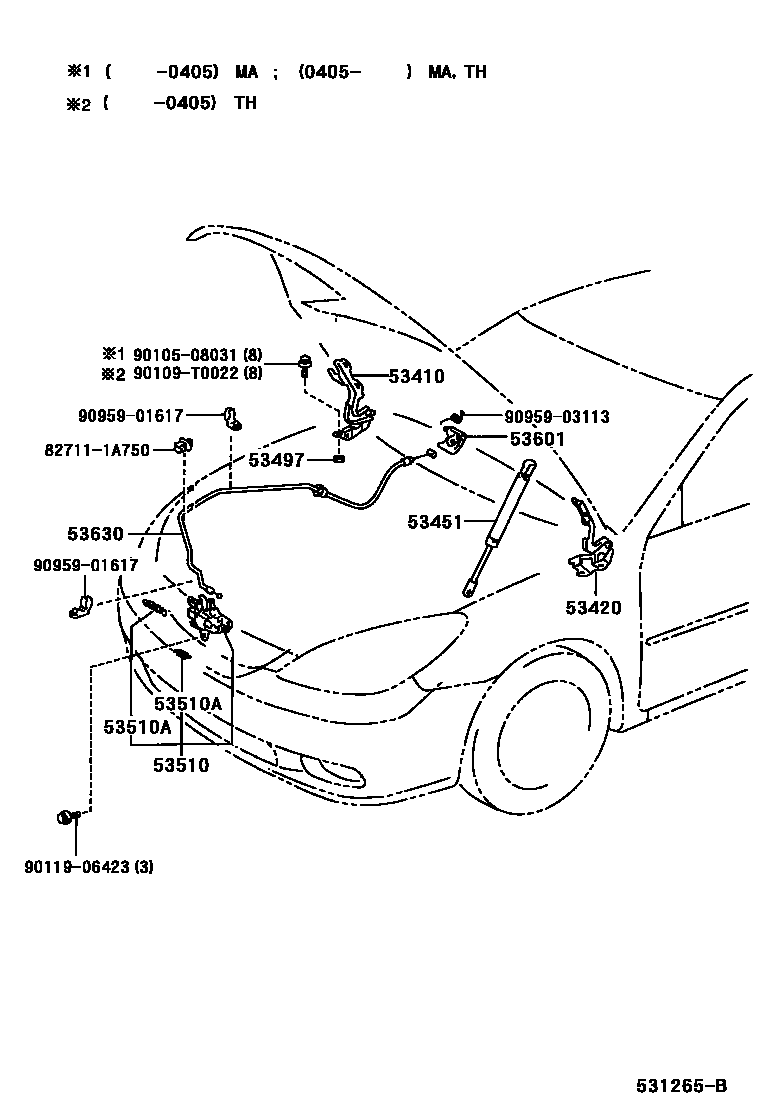

Toyota CAMRY — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-06060iACV3#,MCV30..PHL,VN200203-200611

main53410-33120iACV3#,MCV30..IDN,TH200203-200608

53420HINGE ASSY, HOOD, LH

main53420-06090iACV30..LHD;MCV30..5FC;ACV31..TAIW200404-200611

main53420-33120iACV3#,MCV30..IDN,TH200203-200608

53451ROD, HOOD SUPPORT

main53440-AA011iACV3#,MCV30200203-200501

main53440-AA013iACV3#,MCV30200501-200503

sub53440-AA011

53497PAD, HOOD HINGE, NO.1

main53497-20070iACV31,MCV30..TAIW200203-200407

T=2.0

main53497-42010iACV31,MCV30..TAIW200203-200407

T=0.5

53510LOCK ASSY, HOOD

main53510-06030iACV3#,MCV30..LHD200203-200208

sub53510-06031

main53510-06031iACV3#,MCV30..LHD..(4FC,5F)200208-200405

main53510-06040iACV3#,MCV30..RHD200203-200208

sub53510-06041

main53510-06041iACV3#,MCV30..RHD200208-200404

main53510-06070iACV30,MCV30..TH200405

W(ANTI-THEFT DEVICE)

main53510-06080iACV30..LHD;MCV30..5FC;ACV31..TAIW200404

main53510-06090iACV3#..RHD..(20E,24V)200405

sub53510-06070

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iACV3#,MCV30200203-200208

WD=0.9,CW=20.75

main90506-09055iACV3#,MCV30200208-200404

WD=0.9,CW=21

main90506-12063iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200208-200404

WD=1.2,CW=8.5

main90506-18067iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200208-200404

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-A0iACV30..LHD;MCV30..5FC;ACV31..TAIW200405-200611

IVORY,TRIM0#

sub53611-12040

main53611-12040-A0iACV3#,MCV30..LHD..(20E,20G,24G,24V,30G,30V)200203-200407

IVORY,TRIM4#

sub53611-12040

main53611-12040-B4iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

sub53611-12040

main53611-12040-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

sub53611-12040

main53611-22010-A0iACV3#,MCV30..RHD200203-200407

IVORY,TRIM4#

sub53611-22010

main53611-22010-A0iACV3#,MCV30..RHD200405-200608

IVORY,TRIM0#

sub53611-22010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06040iACV31,MCV30..TAIW200203-200404

main53630-06050iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508031

main90105-08031

90109T0022

main90109-T0022

9011906423

main90119-06423

9095901617

main90959-01617

9095903113

main90959-03113

14 parts on this diagram · 2 diagrams in section
