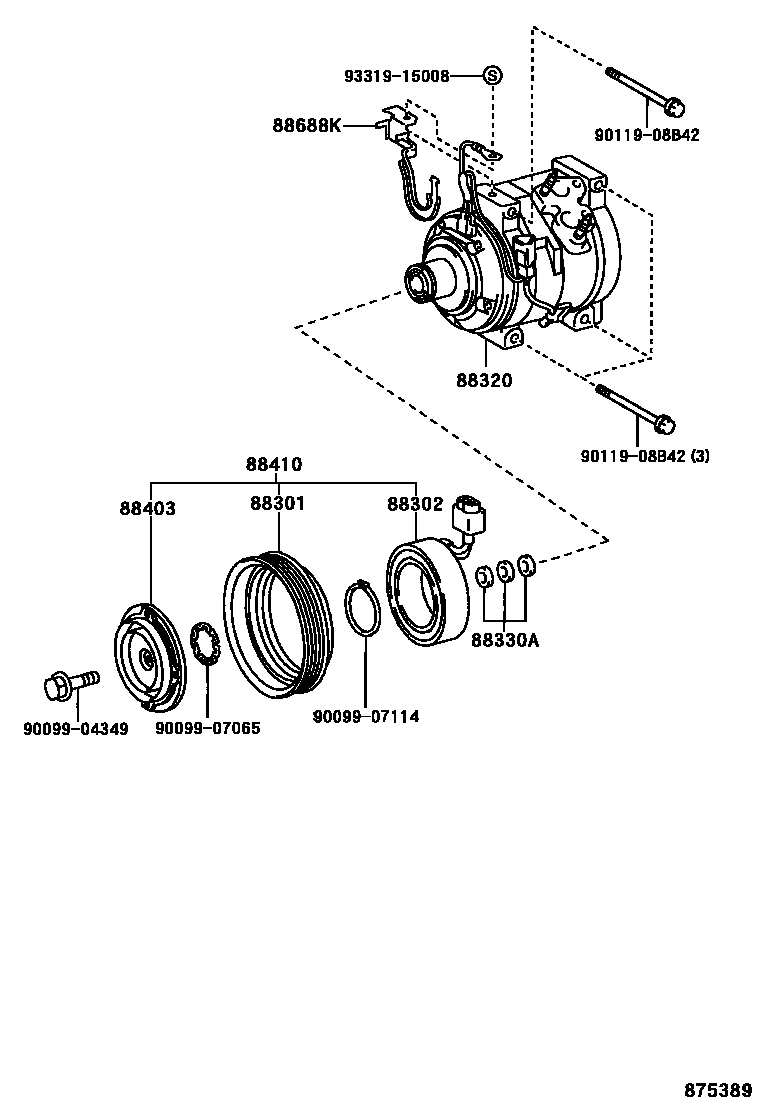

Toyota CAMRY — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0011 1 0014 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-42010iACV3#..TAIW,TH200203-200405

main88412-48020iMCV30..TAIW..4FC200203-200405

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iACV3#,MCV30..(TAIW,TH)..4FC200203-200405

88320COMPRESSOR ASSY, COOLER

main88320-06090iMCV30..IDN200205-200405

main88320-06100iACV3#..IDN,MA,PHL200205-200407

main88320-33160iMCV30..VN200207-200407

main88320-48080iACV30..VN;ACV3#..TH..4FC200203-200407

main88320-8C000iACV31..TAIW200203-200404

sub88320-0D020

main88320-8C001iMCV30..TAIW200203-200404

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iACV3#..TH200203-200611

T=0.1

main88318-87705iACV3#..TH200203-200611

T=0.3

main88318-87706iACV3#..TH200203-200611

T=0.5

main88335-14020iACV3#,MCV30..IDN,MA,PHL,VN200205-200608

main88335-8C000iMCV30..TAIW200203-200404

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010iACV3#,MCV30..(TAIW,TH)..4FC200203-200405

88410CLUTCH ASSY, MAGNET

main88410-33120iMCV30..(IDN,TAIW,VN)..4FC200203-200407

main88410-42040iACV31..MA,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

88688KBRACKET, COOLER COMPRESSOR

main88688-03030iMCV30..TAIW200203-200404

main88688-48070iACV31..MA,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

main88688-48110iMCV30..IDN200205-200406

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

12 parts on this diagram · 8 diagrams in section
