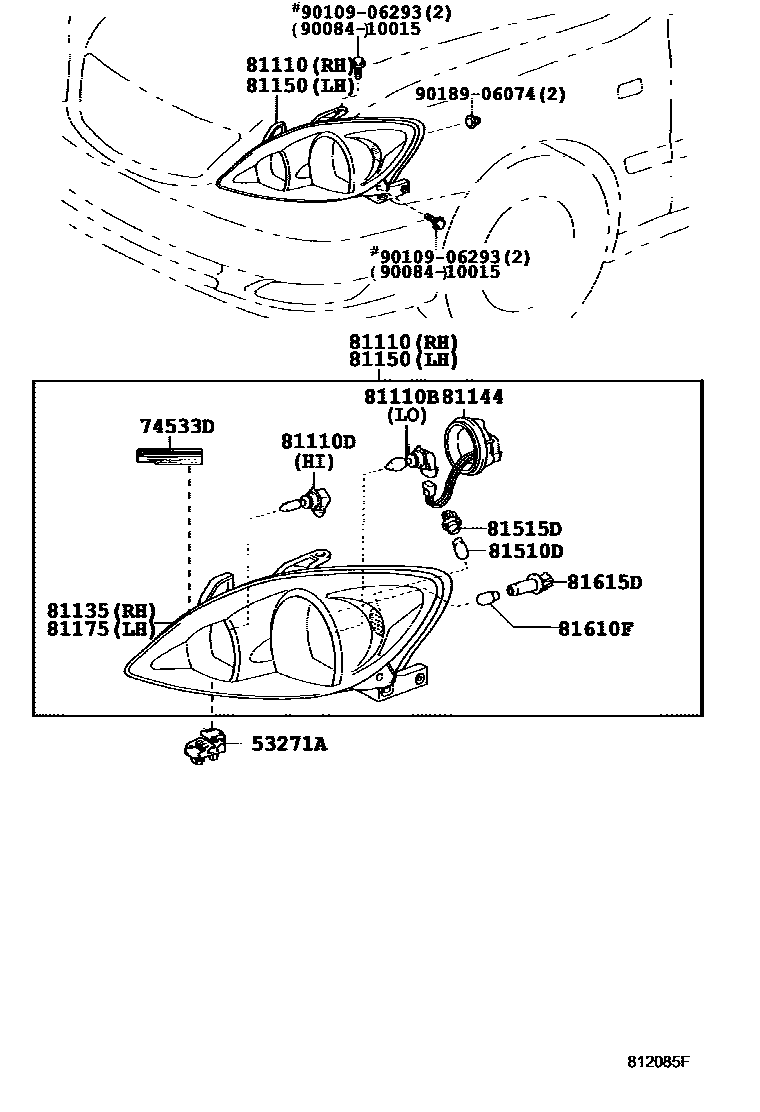

Toyota CAMRY — HEADLAMP

0001 1HALOGEN HEADLAMP 0004 1DISCHARGE HEADLAMP 0006 1HALOGEN HEADLAMP 0008 1DISCHARGE HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010iACV3#,MCV30..MA,PHL,VN200203-200407

74533DLABEL, HEADLAMP VOLTAGE CAUTION

main74533-06010iMCV30..30V200203-200204

sub74533-06011

main74533-06011iACV3#,MCV30..LHD200204-200611

main74533-06020iACV30..24Q200302-200608

main74533-33010iACV30,MCV30..RHD..(24Q,30V)200203-200302

81110HEADLAMP ASSY, RH

main81110-06060iACV3#..(20E,24G)..TH200203-200405

main81110-06070iACV30..IDN200205-200407

main81110-06080iACV3#,MCV30..PHL,VN200203-200407

main81110-06090iACV30,MCV30..RHD..(24Q,30V)200203-200405

main81110-06100iMCV30..30V..TAIW200203-200404

main81110-06110iACV31..TAIW;MCV30..(PHL,VN)..5FC;ACV30,MCV30..LHD..(24E,24G,24V,30G)200404-200505

DISCHARGE HEADLAMP

sub81110-06111

main81110-06111iMCV30..PHL,VN;ACV3#,MCV30..LHD..(20E,20G,24E,24G,24V,30G)200506-200611

main81110-06130iMCV30..TAIW200404-200505

DISCHARGE HEADLAMP & W(AFS)

sub81110-06131

main81110-06131iMCV30..TAIW200506-200605

DISCHARGE HEADLAMP & W(AFS)

main81110-06140iACV30..24Q200405-200505

DISCHARGE HEADLAMP & W(AFS)

sub81110-06141

main81110-06141iACV30..24Q200506-200608

DISCHARGE HEADLAMP & W(AFS)

main81110-06150iACV3#..(20E,24G)..TH..4FC200405-200505

HALOGEN HEAD LAMP & W(MANUAL LEVELING)

sub81110-06151

main81110-06151iACV3#..(20E,24G)..TH..4FC200506-200608

HALOGEN HEAD LAMP & W(MANUAL LEVELING)

main81110-06160iACV31..MA;ACV30..24G..TH200405-200505

HALOGEN HEAD LAMP

sub81110-06161

main81110-06161iACV31..MA;ACV30..24G..TH200506-200608

HALOGEN HEAD LAMP

main81110-06170iACV30,MCV30..RHD..(24G,24V,30V)..4FC200405-200505

DISCHARGE HEADLAMP

sub81110-06171

main81110-06171iACV30,MCV30..RHD..(24G,24V,30V)..4FC200506-200608

DISCHARGE HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13063iACV3#..RHD..(20E,24G)200203-200505

12V 55W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041iACV3#,MCV30200203-200505

12V 65W

sub90981-13046

81135UNIT ASSY, HEADLAMP, RH

main81130-06060iACV3#..(20E,24G)..TH200203-200405

main81130-06070iACV3#..IDN,MA200205-200407

main81130-06150iACV3#..(20E,24G)..TH..4FC200405-200506

main81130-06151iACV3#..(20E,24G)..TH..4FC200506-200608

main81130-06160iACV31..MA;ACV30..24G..TH200405-200506

W/O(LEVELING)

main81130-06161iACV31..MA;ACV30..24G..TH200506-200608

W/O(LEVELING)

main81130-8C007iMCV30..VN;ACV3#,MCV30..LHD..(20E,20G,20J,24G,24V,30G)..(4FC,5F)200203-200407

main81140-06090iACV30,MCV30..RHD..(24Q,30V)200203-200405

main81140-8C002iACV31..TAIW;MCV30..(PHL,VN)..5FC;ACV30,MCV30..LHD..(24E,24G,24V,30G)200404-200505

DISCHARGE HEADLAMP

sub81145-8C003

main81145-06170iACV30,MCV30..RHD..(24G,24V,30V)..4FC200405-200506

DISCHARGE HEADLAMP

main81145-8C003iMCV30..PHL,VN;ACV3#,MCV30..LHD..(20E,20G,24E,24G,24V,30G)200506-200611

main81145-8C004iACV30,MCV30..RHD..(24G,24V,30V)..4FC200506-200608

DISCHARGE HEADLAMP

81144COVER, HEADLAMP, NO.1

main81135-06060iACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC200203-200407

main81135-3A150iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

main81135-3A430iACV30,MCV30..RHD..(24Q,30V)200203-200405

main81179-8C000iMCV30..VN;ACV3#,MCV30..LHD..(20E,20G,20J,24G,24V,30G)..(4FC,5F)200203-200407

81150HEADLAMP ASSY, LH

main81150-06060iACV3#..(20E,24G)..TH200203-200405

main81150-06070iACV30..IDN200205-200407

main81150-06080iACV3#,MCV30..PHL,VN200203-200407

main81150-06090iACV30,MCV30..RHD..(24Q,30V)200203-200405

main81150-06100iMCV30..30V..TAIW200203-200404

main81150-06110iACV31..TAIW;MCV30..(PHL,VN)..5FC;ACV30,MCV30..LHD..(24E,24G,24V,30G)200404-200505

DISCHARGE HEADLAMP

sub81150-06111

main81150-06111iMCV30..PHL,VN;ACV3#,MCV30..LHD..(20E,20G,24E,24G,24V,30G)200506-200611

main81150-06130iMCV30..TAIW200404-200505

DISCHARGE HEADLAMP & W(AFS)

sub81150-06131

main81150-06131iMCV30..TAIW200506-200605

DISCHARGE HEADLAMP & W(AFS)

main81150-06140iACV30..24Q200405-200505

DISCHARGE HEADLAMP & W(AFS)

sub81150-06141

main81150-06141iACV30..24Q200506-200608

DISCHARGE HEADLAMP & W(AFS)

main81150-06150iACV3#..(20E,24G)..TH..4FC200405-200505

HALOGEN HEAD LAMP & W(MANUAL LEVELING)

sub81150-06151

main81150-06151iACV3#..(20E,24G)..TH..4FC200506-200608

HALOGEN HEAD LAMP & W(MANUAL LEVELING)

main81150-06160iACV31..MA;ACV30..24G..TH200405-200505

HALOGEN HEAD LAMP

sub81150-06161

main81150-06161iACV31..MA;ACV30..24G..TH200506-200608

HALOGEN HEAD LAMP

main81150-06170iACV30,MCV30..RHD..(24G,24V,30V)..4FC200405-200505

DISCHARGE HEADLAMP

sub81150-06171

main81150-06171iACV30,MCV30..RHD..(24G,24V,30V)..4FC200506-200608

DISCHARGE HEADLAMP

81175UNIT ASSY, HEADLAMP, LH

main81070-06090iACV30,MCV30..RHD..(24Q,30V)200203-200405

main81070-8C002iACV31..TAIW;MCV30..(PHL,VN)..5FC;ACV30,MCV30..LHD..(24E,24G,24V,30G)200404-200505

DISCHARGE HEADLAMP

sub81185-8C003

main81170-06060iACV3#..(20E,24G)..TH200203-200405

main81170-06070iACV3#..IDN,MA200205-200407

main81170-06150iACV3#..(20E,24G)..TH..4FC200405-200506

main81170-06151iACV3#..(20E,24G)..TH..4FC200506-200608

main81170-06160iACV31..MA;ACV30..24G..TH200405-200506

W/O(LEVELING)

main81170-06161iACV31..MA;ACV30..24G..TH200506-200608

W/O(LEVELING)

main81170-8C007iMCV30..VN;ACV3#,MCV30..LHD..(20E,20G,20J,24G,24V,30G)..(4FC,5F)200203-200407

main81185-06170iACV30,MCV30..RHD..(24G,24V,30V)..4FC200405-200506

DISCHARGE HEADLAMP

main81185-8C003iMCV30..PHL,VN;ACV3#,MCV30..LHD..(20E,20G,24E,24G,24V,30G)200506-200611

DISCHARGE HEADLAMP

main81185-8C004iACV30,MCV30..RHD..(24G,24V,30V)..4FC200506-200608

DISCHARGE HEADLAMP

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iMCV30..VN;ACV3#,MCV30..LHD..(20E,20G,20J,24G,24V,30G)..(4FC,5F)200203-200505

12V 21W,AMBER

main90981-15021iACV3#..RHD..(20E,24G)200405-200506

12V 21W,AMBER

81515DSOCKET, FOG LAMP

main81125-48470iMCV30..VN;ACV3#,MCV30..LHD..(20E,20G,20J,24G,24V,30G)..(4FC,5F)200203-200406

main90075-60004iACV30,MCV30..RHD..(24Q,30V)200203-200407

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iMCV30..IDN,VN;ACV30..(24Q,24V)..(PHL,TH);ACV3#,MCV30..LHD..(20E,20G,20J,24G,30G)..(4FC,5F)200203-200505

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004iACV30..24Q;MCV30..TAIW200404-200608

W(AFS)

main90075-60028iACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC200203-200407

main90075-60046iACV31..RHD;ACV30..TH..5F200404-200611

9008410015

main90084-10015

9010906293

main90109-06293

9018906074

main90189-06074

16 parts on this diagram · 4 diagrams in section
