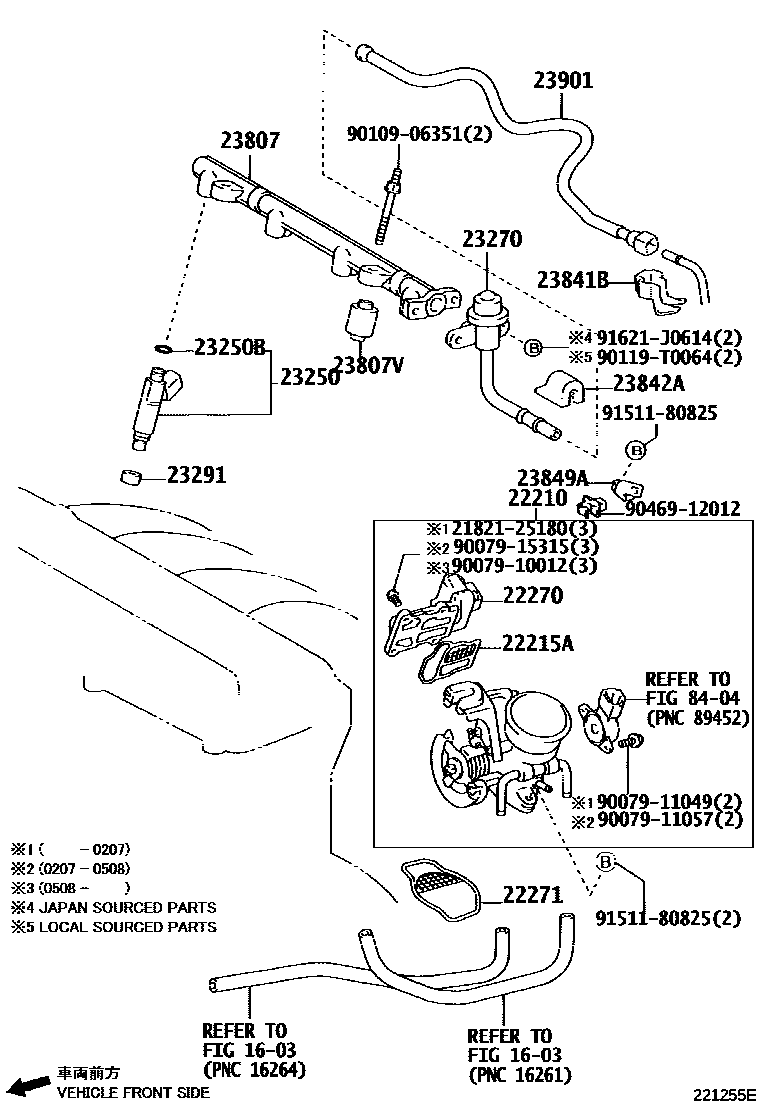

Toyota CAMRY — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22210BODY ASSY, THROTTLE

main22030-20020i1MZFE..MCV30200203-200204

main22030-20050i1MZFE..MCV30200204-200207

sub22030-20051

main22030-20051i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200207-200407

main22030-20060i1MZFE..MCV30..5FC200404

main22210-28040i1AZFE..ACV31..TAIW200203-200207

sub22210-28100

main22210-28060i1AZFE..ACV31..TAIW200207-200511

sub22210-28090

main22210-28090i1AZFE..ACV31..TAIW200511-200605

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-28042i1AZFE..ACV31..TAIW200203-200508

main22215-7A680i1AZFE..ACV31..TAIW200508

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-28010i1AZFE..ACV31..TAIW200203-200511

main22270-28020i1AZFE..ACV31..TAIW200511

22271GASKET, THROTTLE BODY

main22271-20030i1MZFE..MCV30200203-200204

sub22271-20031

main22271-20031i1MZFE..MCV30..VN200204-200407

main22271-20040i1MZFE..MCV30..5FC200404

main22271-28020i1AZFE,2AZFE..ACV3#..4FC;2AZFE..ACV30..(IDN,VN)..5F200203-200611

23250INJECTOR ASSY, FUEL

main23209-20030i1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH200203-200407

sub23209-20040

main23209-28020i2AZFE..ACV30200203-200407

main23209-28050i1AZFE..ACV31..MA,PHL200203-200407

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1AZFE..ACV31..TAIW200203-200607

main90301-07037i1MZFE..MCV30200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i1AZFE..ACV31..TAIW200203-200407

sub23270-28021

main23270-62010i1MZFE..MCV30..TAIW200203-200410

sub23270-62011

main23270-62011i1MZFE..MCV30200410

sub23207-20010

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1AZFE..ACV31..TAIW200203-200407

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCV30200203-200401

sub23814-20021

main23814-20021i1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH200401-200407

main23814-28030i1AZFE,2AZFE..ACV3#200203-200312

sub23814-28031

main23814-28031i1AZFE,2AZFE..ACV3#..MA,PHL,VN200312-200407

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1MZFE..MCV30..TAIW200203-200407

main90561-08053i1AZFE..ACV31..TAIW200203-200407

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

sub23841-21050

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0H010i1AZFE..ACV31..TAIW200203-200404

main23842-22020i1AZFE,2AZFE..ACV3#..IDN,MA,PHL,TH,VN200203-200303

main23842-28010i2AZFE..ACV30;1AZFE..ACV31..RHD200303-200407

23849ASUPPORT, FUEL PIPE

main23849-28010i1AZFE..ACV31..TAIW200203-200404

main23849-28030i1AZFE,2AZFE..ACV3#..IDN,TH200203-200407

23901TUBE SUB-ASSY, FUEL

main23901-28130i2AZFE..ACV30;1AZFE..ACV31..RHD200203-200407

main23901-28140i1AZFE..ACV31..TAIW200203-200404

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007910012

main90079-10012

9007911049

main90079-11049

9007911057

main90079-11057

9007915315

main90079-15315

9010906351

main90109-06351

90119T0064

main90119-T0064

9046912012

main90469-12012

9151180825

main91511-80825

91621J0614

main91621-J0614

26 parts on this diagram · 6 diagrams in section
